Ignitor

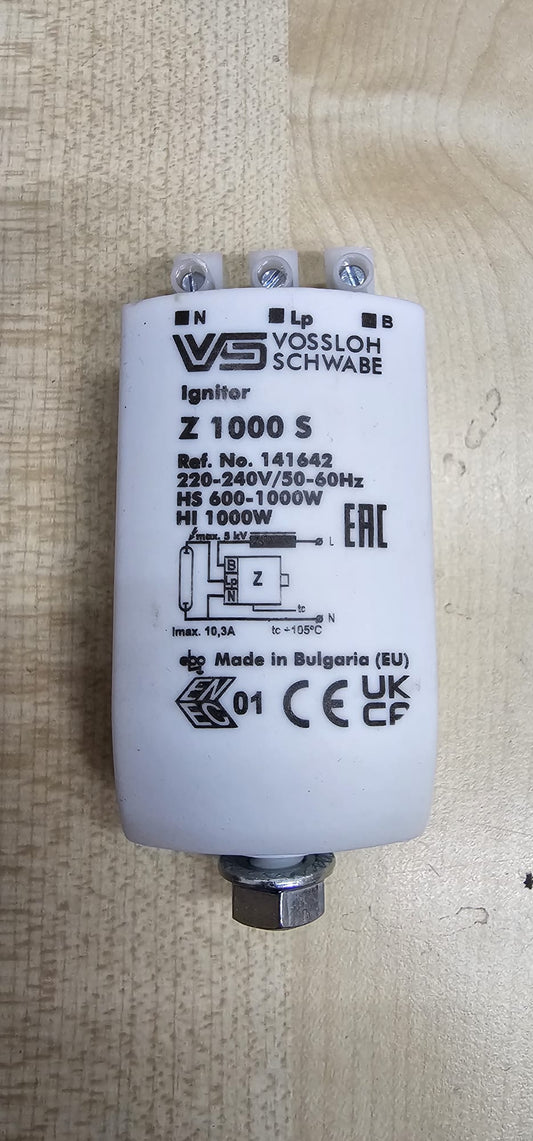

For datasheet click here. Electronic Superimposed Ignitors for HS and HI Lamps250 to 1000 WStandard version or with automatic switch-offFor high-pressure sodium lamps (HS)and metal halide lamps (HI)Phasing of the ignition voltage:60–90 °el and 240–270 °elMax. permitted casing temperature: 105 °CScrew terminals: 0.75–2.5 mm²(Z 1000 S: 0.75–4 mm²)Fastening: male nipple...

For datasheet clicks here. Lead Time 2 Weeks. Vossloh Schwabe Metal Halide & Sodium 35-400 Watt Ignitor Standard version or with automatic switch-off Compact shape For high-pressure sodium lamps (HS), metal halide lamps (HI) and ceramic discharge lamps (C-HI) Ignition voltage: 4–5 kV Phasing of the ignition voltage: 60–90 °el...

Technical Details Datasheet Digital ZRM power pulse ignitors are characterized by their regulated ignition voltage. The three-start counter automatically stops the ignition process if the lamp is faulty. Because their automatic reset function after ignition has been suppressed for 3 hours, these ignitors are among others suitable for use in...

*Check stock before ordering. Lead time 1-2 weeks ARO.* For the datasheet click here. Standard version For metal halide lamps (HI) Phasing of the ignition voltage: 60–90 °el and 240–270 °el Max. permitted casing temperature: 105 °C Screw terminals: 0.75–2.5 mm2 Fastening: male nipple with pre-assembled washer and nut For...

Vive IgnitorVive Description:- 220-240V- ZX1000M- For Sodium Bulb (400-1000W)- For Metal Halide Bulb (400-1000W)- Max : 12A- 220-240V- ZX400M- For Sodium Bulb (50-400W)- For Metal Halide Bulb (70-400W)- Max: 5A

Technical Details Datasheet ELT AVS 100-DPIgnitor for high-pressure sodium vapour and metal halide lamps~ Impulse transformer system.~ Operate with ELT ballasts with an adequate outlet.~ Insulting, self-extinguishing casing with M8 fastening shank.~ 0.75 and 1 mm2 , 0.45/0.7 and 0.6/1kV connections.   Manufacturer: ELT Model Reference: AVS-100-DP Lamp Lamp Type:...

Technical data sheets Datasheet *Check stock before ordering. Lead time 4 working days.* Product Details Ignitors Suitable for use with high intensity ballasts, such as those used with SON, SOX, SOXE and metal halide lampsSON ignitors incorporate a timer to switch off the ignitor ciruit should the lamp fail Specifications...

For the datasheet click here. General Information Application Code 52 Operating and Electrical Input Voltage 220 to 240 V Input Frequency 50 to 60 Hz Igniton Type Parallel Ignition Voltage (Max) 0.75 kV Ignition Voltage (Min) 0.58 kV Response Voltage 190 V Mains Voltage Performance (AC) -8%-+6% Mains Voltage Safety...

For the datasheet click here. General Information Application code 51 Plus Operating and Electrical Input voltage 220 to 240 V Input frequency 50 to 60 Hz Ignition type Parallel Ignition voltage (max.) 0.75 kV Ignition voltage (min.) 0.58 kV Response voltage 190 V Mains voltage performance (AC) -8%-+6% Mains voltage...

For datasheet click here. *Check stock before ordering. Lead time 1-2 weeks* Electronic SuperimposedIgnitorsfor HS Lamps70 (DE) to 250 Wand HI Lamps35 to 250 WStandard version or with automatic switch-offFor high-pressure sodium lamps (HS),metal halide lamps (HI) andceramic discharge lamps (C-HI)Phasing of the ignition voltage:60–90 °el and 240–270 °elMax. permitted...

*Check stock before ordering. Indent 10-12 weeks ARO.* For datasheet click here. Standard version or with automatic switch-offFor high pressure sodium lamps (HS),metal halide lamps (HI) andceramic discharge lamps (C-HI)Phasing of the ignition voltage:60–90 °el and 240–270 °elMax. permitted casing temperature: 105 °CScrew terminals: 0.75–4 mm²Fastening: male nipple with pre-assembledwasher...

For datasheet click here. General Information Application Code 58/02 Lamp Type SON/MHN Operating and Electrical Input Voltage 220/240 V Input Frequency 50 to 60 Hz Igniton Type Semi-Parallel Temperature T-Ambient (Max) 90 °C T-Ambient (Min) -20 °C T-Case Maximum (Max) 80 °C
