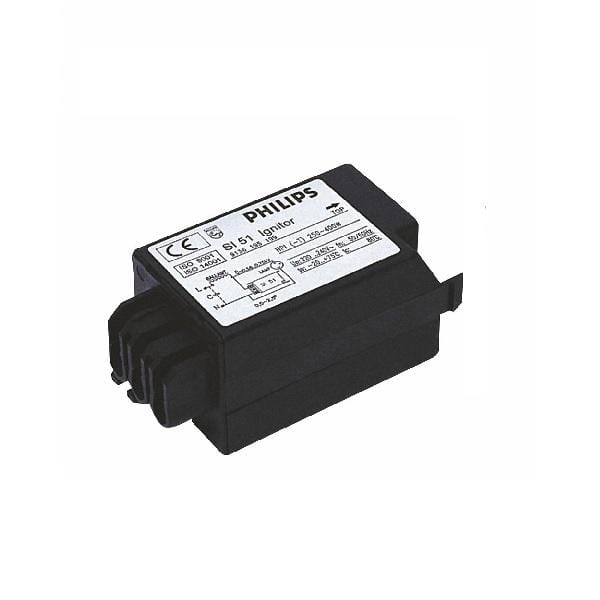

PHILIPS SI 51 Plus Ignitor for HID Lamp Circuits

Product Code 913710011114

AvailabilityIn stock

$ 11.00 $ 10.00
Unit price
per
Shipping calculated at checkout.
Hurry! only 48 left in stock!
Order in The Next 8 Hours 0 Minutes
We will deliver on Wednesday 12/01/2021
Request For Quote

For the datasheet click here.

General Information

Application code
51 Plus

Operating and Electrical
Input voltage
220 to 240 V
Input frequency
50 to 60 Hz
Ignition type
Parallel
Ignition voltage (max.)
0.75 kV
Ignition voltage (min.)
0.58 kV
Response voltage
190 V
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Power losses (nom.)
0.5 W
Wiring
Ballast contact wire cross section
0.50-2.50 mm²
Connector type
Screw
Temperature
T ambient (max.)
75 °C
T ambient (min.)
-20 °C
T-Case maximum (max.)
80 °C
Mechanical and Housing
Housing
Akulon S223

Approval and Application
Approval marks

CE marking

ENEC certificate

PHILIPS SI 51 Plus Ignitor for HID Lamp Circuits
