Waldmann 3W Flexible Neck LED Machine Luminaire Light IP67
Waldmann 3W Flexible Neck LED Machine Luminaire Light IP67
SKU:102614
Low stock: 4 left
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Technical data sheets
*Check stock before ordering. Lead time 4 working days.*
Recommended accessories:
Product Details

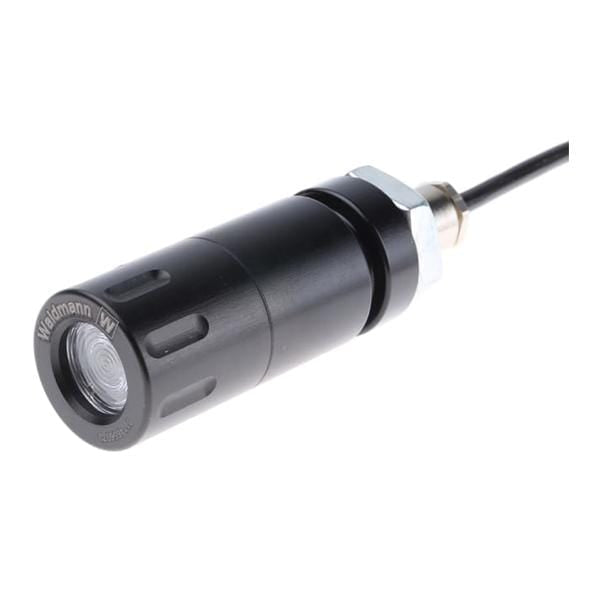

Waldmann ABLL1 LED Pivoting Head Machine Light
These compact 3W IP67 LED machine lights are designed to provide high luminous power for close-up process illumination almost anywhere. They are insensitive to vibrations and resistant to metal chippings and cutting fluids in a machining environment. The integrated ball joint allows 360 degree rotation and fast, precise positioning within an angle of 40°.
1 x high power LED (3W)
Color temperature daylight white 6000 K
6° or 25° angle of illumination (RS 293-322 and RS 102-614 respectively)
102-614Black anodized aluminum housing with a 2 mm thick safety glass lens
Ball joint adjustment
Without switch
System of protection IP67; class of protection III
Mounted using an integral M18 x 1.5 thread

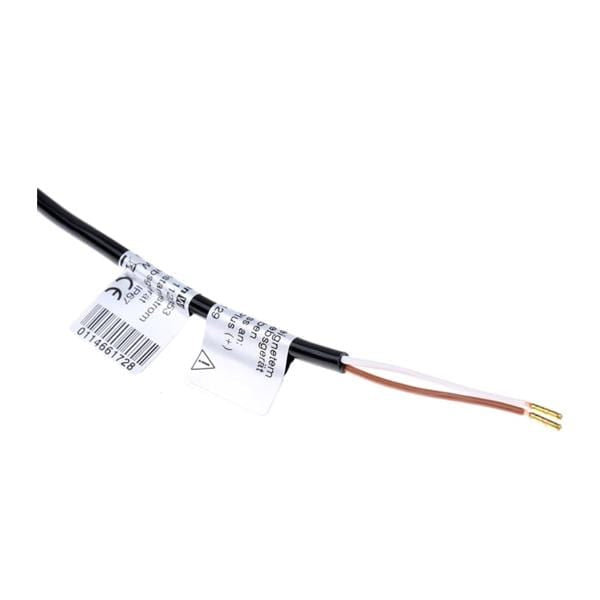

Supplied with a 1.5m unterminated power lead
LED drivers required.
Note
LED drivers are required for these lights:
RS 293-300 = 95 - 240V input 700mA 10W (for a maximum of 3 lights)
RS 293-451 = 24VAC/DC input 700mA 14W (for a maximum of 5 lights)
Specifications
| Attribute | Value |
| Lamp Type | LED |
| Lamp Supplied | Yes |
| Light Style | Flexible Arm |
| Wattage | 3 W |
| Arm Type | Flexible Neck |
| IP Rating | IP67 |
| Integral transformer | No |
| Cable Length | 1.5m |
| EU Energy Efficiency Rating | A+ |
