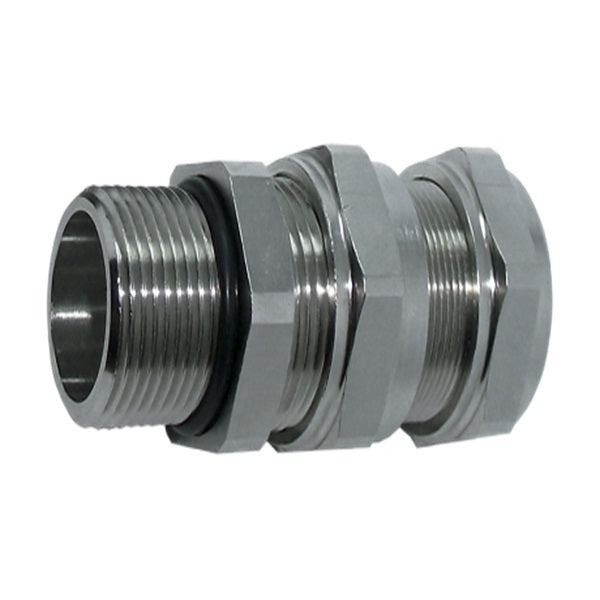

Supermec Armoured Explosion Proof Atex Certified Cable Gland

Technical Data Sheet

Data Sheet

The  explosion proof cable glands are normally installed in the chemical and petrochemical plants, off-shore platforms, refineries and any other industry where hazardous atmospheres (gas and combustible dust) are present.

The cable gland series are designed to allow direct entry of armoured cables into Ex d and Ex e enclosures to provide any electrical connection with external circuits.

Description

The cable glands for armoured cables are especially designed to equip with a sole gasket covering a wide range of cable sizes to facilitate the choice and the installation.

The cable glands for non-armoured cables provide with a complete set of internal gaskets to meet any form of requirements.

The upper body of CGF series is female threaded to allow the connection with an Ex d rigid or flexible conduit protecting the cable for specific kind of installations.

The upper body of CGI, CGL and GGV series are designed to hold a flexible watertight flexible conduit protecting the cable for specific kind of installation and with different angles of connection.

The cable glands with cylindrical threads are equipped with O-ring to grant an IP 66/6s8 protection to the enclosure.
