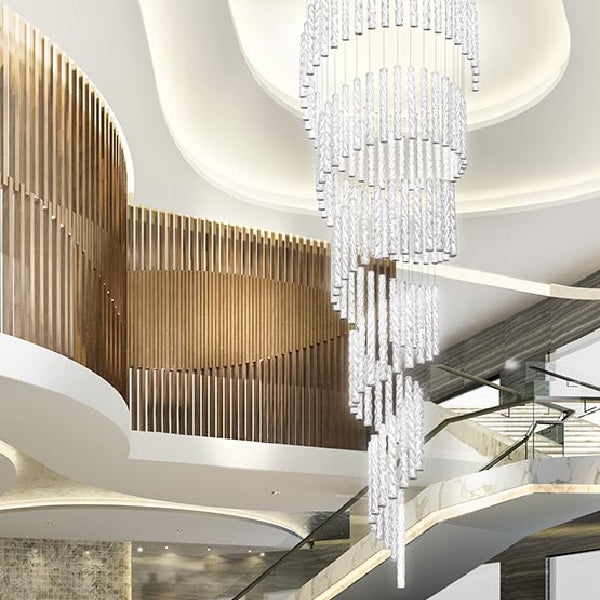

SLAMP HUGO Architectural System 3000K Pendant Light
SLAMP HUGO Architectural System 3000K Pendant Light
SKU SKU:HUGSSS2PRS01TAR000EU
Couldn't load pickup availability
*Ships from Italy Lead Time 1-3 Weeks*
Without Bulb.
Description:
THE PRODUCT IS HANDCRAFTED BY OUR HANDS THAT TAILOR LIGHT, THEN PACKAGED JUST FOR YOU
EVERY SHADE HAS RECEIVED AN ANTISTATIC TREATMENT BOTH BEFORE AND AFTER ASSEMBLY
The innovative Hugo Architectural system allows for up to 7, one meter-long elements to be connected using a single electric output, power supply and rosette. The Architectural system can be configured using a variation of 2 to 7 elements, depending on the designer’s aesthetic and lighting needs. Hugo offers technical-quality lighting without losing Slamp’s iconic aesthetic value. The main office requirements established in the UNI EN 12464-1:2011 standard require an average illumination of 500 lx on work surfaces, a coefficient of uniformity U0 greater than 0.6 and a glare value (UGR) of less than 19. Both the Prisma and White versions easily conform to these requirements, including a CRI (colour rendering index) greater than 90.
ARCHITECTURAL SYSTEM 2:
LED: 40W - 100-240Vac/24Vdc
7.000 lumen - 3000 Kelvin
(4000 Kelvin upon request)
Dimmable with: PWM, 0-10
Made of: Lentiflex®
Weight: net Kg 2,6 - gross Kg 4,4
Package: A 114 x 16 x h 16 cm (X2)
B 44 x 26 x 6,5 cm
ARCHITECTURAL SYSTEM 3:
LED: 60W - 100-240Vac/24Vdc 10.500 lumen - 3000 Kelvin (4000 Kelvin upon request)
Dim. with: PWM, 0-10 or Potentiometer
Made of: Lentiflex®
Weight: net Kg 4,4 - gross Kg 6,8
Package: A 114 x 16 x h 16 cm (X3)
B 44 x 26 x 6,5 cm
ARCHITECTURAL SYSTEM 4:
LED: 80W - 100-240Vac/24Vdc 14.000 lumen - 3000 Kelvin (4000 Kelvin upon request)
Dim. with: PWM, 0-10 or Potentiometer
Made of: Lentiflex®
Weight: net Kg 5,8 - gross Kg 9
Package: A 114 x 16 x h 16 cm (X4)
B 44 x 26 x 6,5 cm
ARCHITECTURAL SYSTEM 5:
LED: 100W -100-240Vac/24Vdc 17.500 lumen - 3000 Kelvin (4000 Kelvin upon request)
Dim. with: PWM, 0-10 or Potentiometer
Made of: Lentiflex®
Weight: net Kg 6,8 - gross Kg 10,7
Package: A 114 x 16 x h 16 cm (X5)
B 44 x 26 x 6,5 cm
ARCHITECTURAL SYSTEM 6:
LED: 120W - 100-240Vac/24Vdc 21.000 lumen - 3000 Kelvin (4000 Kelvin upon request)
Dim. with: PWM, 1-10 or Potentiometer
Made of: Lentiflex®
Weight: net Kg 8,3 - gross Kg 12,9
Package: A 114 x 16x h 16 cm (X6)
B 44 x 26 x 6,5 cm
ARCHITECTURAL SYSTEM 7:
LED: 140W -100-240Vac/24Vdc 24.500 lumen - 3000 Kelvin (4000 Kelvin upon request)
Dim. with: PWM, 1-10 or Potentiometer
Made of: Lentiflex®
Weight: net Kg 9,3 - gross Kg 14,6
Package: A 114 x 16 x h 16 cm (X7)
B 44 x 26 x 6,5 cm
ADDITIONAL DIMMING SYSTEM DALI, BLUETOOTH, CASAMBI, TRIAC, UPON REQUEST
