Schneider 13A 250V 1Gang Switched Socket

Product Code KB15_AS

AvailabilityIn stock

$ 6.00 $ 5.00
Unit price
per
Shipping calculated at checkout.
Hurry! only 0 left in stock!
We will deliver on Tuesday 08/10/2021
Request For Quote

13A 250V 1Gang Switched Socket,Aluminium Silver (KB15_AS)

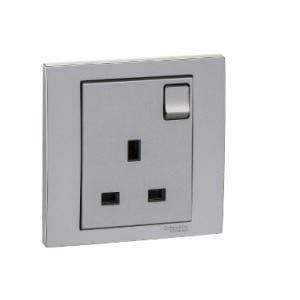

13A 250V 1 Gang Switched socket,Aluminium silver (KB15_AS_G2)

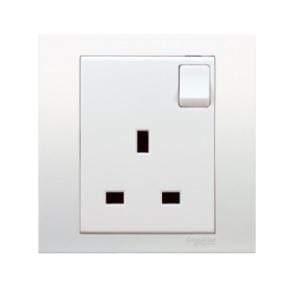

13A 250V 1Gang Switched Socket,White (KB15_WE)

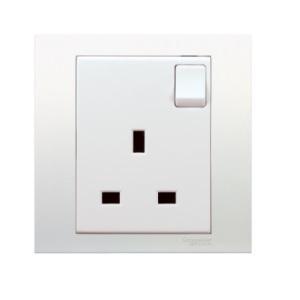

13A 250V 1Gang Switched Socket,White(KB15_WE_G2)

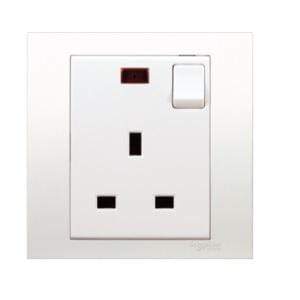

13A 250V 1Gang Switched Socket with Neon,White (KB15N_WE)

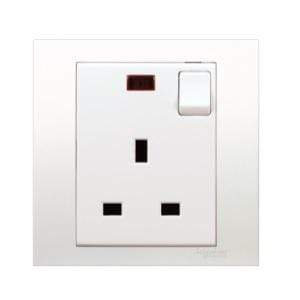

13A 250V 1 Gang Switched Socket with Neon white(KB15N_WE_G2)

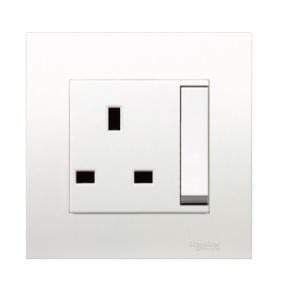

13A 250V 1 Gang Large Dolly Switched Socket(KB15L)(White)

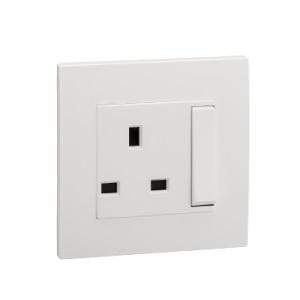

13A 250V 1 Gang Large Dolly Switched Socket white(KB15L_WE_G2)

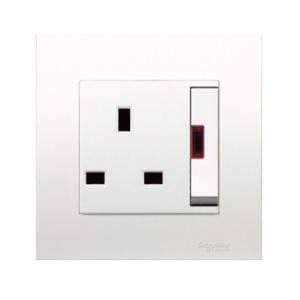

13A 250V 1 Gang Large Dolly Switched Socket with Neon(KB15LN_WE)

15A 250V 1Gang Switched Socket, Aluminium silver (KB15_15_AS)

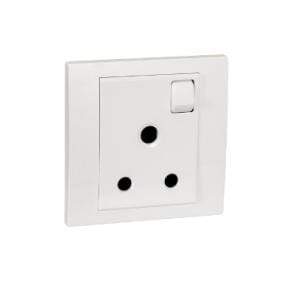

15A 250V 1Gang Switched Socket,White (KB15_15_WE)

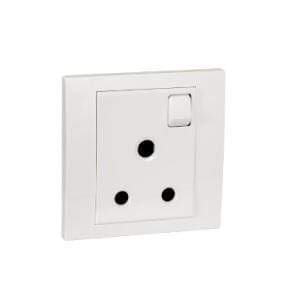

15A 250V 1 Gang Switched Socket,White (KB15_15_WE_G2)

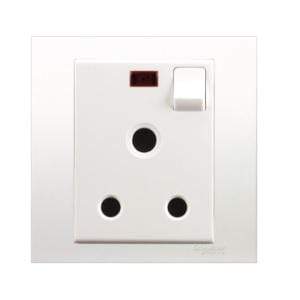

15A 250V 1 Gang Switched Socket with Neon white (KB15_15N_WE_G2)

Main

range
Vivace
product or component type
Socket-outlet with switch
device short name
KB15
device application
Power supply
Control
device presentation
Complete mechanism



Complementary

outlet poles configuration
2P + E
number of gangs
1 gang
Colour tint
Aluminium silver
material
Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
projecting depth
8 mm
device mounting
Flush
mounting support
Wall mounted
fixing mode
By screw M3.5
fixing center
60.3 mm
embedding depth
35 mm
rated current
13 A at 250 V AC, resistive
13 A at 250 V AC, inductive
network frequency
50 Hz
contacts material
Brass and phosphor bronze
connections - terminals
Pillar terminal
terminal identifier
L
Earth
N
tightening torque
0.4 N.m
clamping connection capacity
<= 1.5 mm²
width
86 mm
height
86 mm



Environment

standards
BS 546
ambient air temperature for operation
-5…40 °C
relative humidity
0…95 %
environmental characteristic
Indoor use



Offer Sustainability

EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
