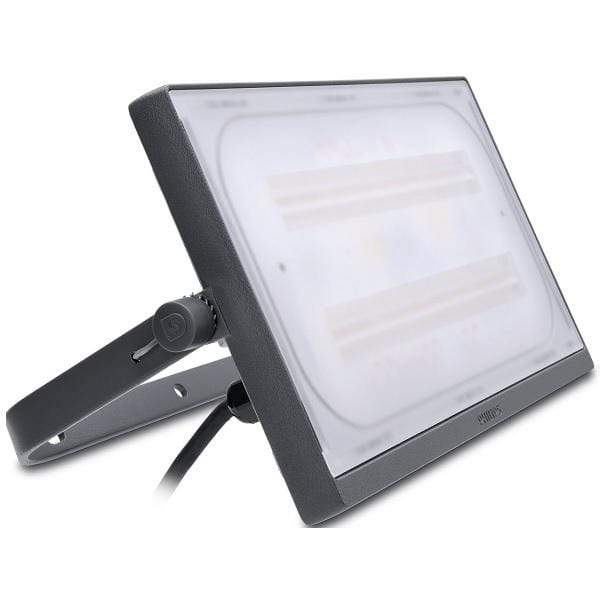

PHILIPS BVP174 LED 95 100W WB Grey CE Smart Bright LED Floodlight
Product Code 911401689404
AvailabilityIn stock
Have a question?
Technical Details
For the 3000K datasheet click here.
For the 5700K datasheet click here.
For the 4000K datasheet click here.
General Information
| Lamp family code |
LED66 [ LED module 6600 lm]
|
| Light source color |
730 warm white
|
| Light source replaceable |
No
|
| Driver included |
Yes
|
| Optical cover/lens type |
Polycarbonate bowl/cover UV-resistant
|
| Luminaire light beam spread |
30° x 80°
|
| Control interface |
-
|
| Connection |
Flying leads/wires
|
| Cable |
Cable 0.6 m without plug
|
| Protection class IEC |
Safety class I
|
| Flammability mark |
For mounting on normally flammable surfaces
|
| CE mark |
CE mark
|
| Constant light output |
No
|
| Number of products on MCB of 16 A type B |
26
|
| Light source engine type |
LED
|
| Input Voltage |
220 to 240 V
|
| Input Frequency |
50 or 60 Hz
|
| Inrush current |
9.7 A
|
| Inrush time |
0.065 ms
|
| Power Factor (Min) |
0.9
|
| Dimmable |
No
|
| Housing Material |
Aluminum die cast
|
| Optical cover/lens material |
Polycarbonate
|
| Mounting device |
Mounting bracket adjustable
|
| Optical cover/lens shape |
Flat
|
| Optical cover/lens finish |
Frosted
|
| Overall length |
356 mm
|
| Overall width |
190 mm
|
| Overall height |
53 mm
|
| Effective projected area |
0.056 m²
|
| Color |
Gray
|
| Ingress protection code |
IP65 [ Dust penetration-protected, jet-proof]
|
| Mech. impact protection code |
IK07 [ 2 J reinforced]
|
| Initial luminous flux (system flux) |
9500 lm
|
| Luminous flux tolerance |
+/-10%
|
| Initial LED luminaire efficacy |
95 lm/W
|
| Init. Corr. Color Temperature |
3000 K
|
| Init. Color Rendering Index |
>70
|
| Initial chromaticity |
SDCM<7
|
| Initial input power |
100 W
|
| Power consumption tolerance |
+/-10%
|
| Ambient temperature range |
-40 to +45 °C
|
| Maximum dim level |
Not applicable
|
