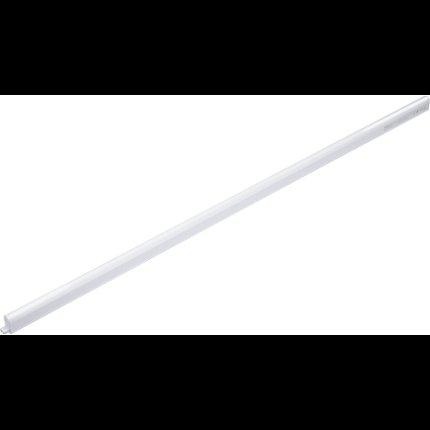

PHILIPS BN068C Essential Smartbright LED Batten G2

Product Code 911401818697

AvailabilityIn stock

$ 14.00 $ 13.00
Unit price
per
Shipping calculated at checkout.
Hurry! only -2 left in stock!
We will deliver on Monday 06/28/2021
Request For Quote

For the datasheet click here.

For the datasheet click here.

For the cable click here.

C/W PHILIPS ZCH086 CCPA CONNECTING CABLE (MALE/FEMALE)

General Information

Light source color
Warm white
Light source replaceable
No
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit
Driver included
Yes
Optic type
Wide beam
Optical cover/lens type
Polycarbonate linear
Luminaire light beam spread
140°
Control interface
-
Connection
Flying leads/wires
Cable
Cable without plug 2-pole
Protection class IEC
Safety class II
Glow-wire test
Temperature 850 °C, duration 5 s
CE mark
-
Warranty period
1 years
Constant light output
No
Number of products on MCB of 16 A type B
10
EU RoHS compliant
Yes
Light source engine type
LED
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Power Factor (Min)
0.5
Controls and Dimming
Dimmable
No

Mechanical and Housing
Housing Material
Polyamide
Optic material
Polycarbonate
Optical cover/lens material
Polyamide
Fixation material
Steel
Optical cover/lens finish
Clear
Overall length
325 mm / 885 mm
Overall width
21 mm
Overall height
34.2 mm
Color
White
Approval and Application
Ingress protection code
IP20  [ Finger-protected]
Mech. impact protection code
IK00  [ No protection]

Initial Performance (IEC Compliant)
Initial luminous flux (system flux)
300 lm
Luminous flux tolerance
+/-10%
Initial LED luminaire efficacy
80 lm/W
Init. Corr. Color Temperature
3000 K
Init. Color Rendering Index
>80
Initial chromaticity
SDCM<7
Initial input power
3.75 W
Power consumption tolerance
+/-10%
Over Time Performance (IEC Compliant)
Median useful life L70B50
20000 h

Application Conditions
Ambient temperature range
-20 to +40 °C
Maximum dim level
Not applicable
