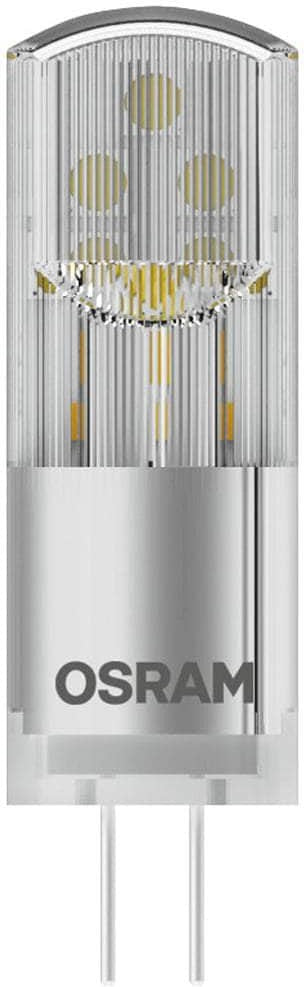

OSRAM LED G4 Capsule with easy installation

$ 11.33 $ 12.13

Out of stock

LED Bulb

4058075812031

LEDVANCE

Add to wishlist

OSRAM LED G4 Capsule is easily install-able and can be fixed into different G4 based lighting fixture.The capsule has got wide application and can be used for chandelier, landscape lighting, restaurants, lawn lighting etc.

LED STAR PIN CL 30 2.4W/827 G4 non dimm

Electrical data

Rated wattage 2.40 W
Nominal wattage 2.40 W
Nominal voltage 12 V
Power factor λ 0.50
Claimed equiv. conventional lamp power 30 W

Photometrical data

Nominal luminous flux 300 lm
Rated luminous flux 300 lm
Rated color temperature 2700 K
Color rendering index Ra ≥80
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Standard deviation of color matching ≤6 sdcm

Light technical data

Warm-up time (60 %) < 0.50 s
Starting time < 0.5 s

Dimensions & weight

Overall length 44.0 mm
Diameter 13.0 mm
Outer bulb T13
Length 44.0 mm

Temperatures & operating conditions

Maximum temperature at tc test point 88 °C

Lifespan

Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service life 0.70

Additional product data

Base (standard designation) G4
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Show WEEE picto Yes

Capabilities

Dimmable No

Certificates & standards

Energy efficiency class A++
Energy consumption 3 kWh/1000h

Country-specific categorizations

ILCOS DRT/C-2,4/827-220-240-G4-13/44
Order reference LEDSPIN30 CL 2,
