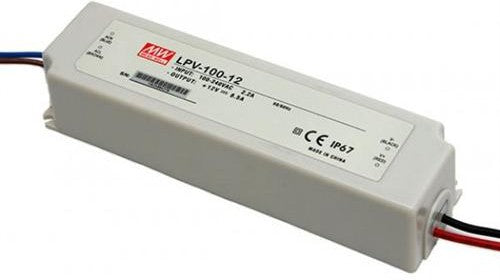

MEANWELL LPV Series Constant Voltage Power Supply

$ 17.69 $ 69.20

Many In Stock

Ballast /Drivers

LPV-20-12

S7

Add to wishlist

 Features:

  • Constant voltage design
  • 90~132VAC input for LPVL-150 180~305VAC input for LPV-150
  • Fully encapsulated with IP67 level (Note.8}
  • ClassⅡpower unit, no FG
  • Protections: Short circuit/Overload/Over voltage/ Over temperature
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Listed in UL Sign Component Manual (SAM}
  • Type “HL” for use in class I, Division 2 hazardous (Classified} location luminaires for LPVL-150

  Applications

  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices}

Model Encoding:

LPV[ L ]-150-12[ ]

LPV--------->

L------->{Blank: AC input range 180~305VAC  ,

              L:AC input range 90~132VAC}

150----->Output wattage

12------>Output Voltage

 Specification:

MODEL

LPV-20-5

LPV-20-12

LPV-20-15

LPV-20-24









OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

3A

1.67A

1.33A

0.84A

CURRENT RANGE

0 ~ 3A

0 ~ 1.67A

0 ~ 1.33A

0 ~ 0.84A

RATED POWER

15W

20W

20W

20.2W

RIPPLE & NOISE (max.) Note.2

80mVp-p

120mVp-p

120mVp-p

150mVp-p

VOLTAGE TOLERANCE Note.3

±5.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±2.0%

SETUP, RISE TIME           Note.6

500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load

HOLD UP TIME (Typ.)

50ms/230VAC           16ms/115VAC at full load





INPUT

VOLTAGE RANGE            Note.4

90 ~ 264VAC           127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

77%

81%

83%

83%

AC CURRENT (Typ.)

0.55A/115VAC 0.35A/230VAC

INRUSH CURRENT(Typ.)

COLD START 70A(twidth=215μs measured at 50% Ipeak) at 230VAC

MAX. No. of PSUs on 16A CIRCUIT BREAKER

8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

0.25mA / 240VAC



PROTECTION

OVER LOAD

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8 ~ 16V

17.5 ~ 21V

28 ~ 32V

Protection type : Shut off o/p voltage, clamping by zener diode





ENVIRONMENT

WORKING TEMP.

-30 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes



SAFETY & EMC

SAFETY STANDARDS

Ul879, UL1310, CSA C22.2 No. 207-M89,CAN/CSA C22.2 No. 223-M91,TUV EN60950-1,EAC TP TC 004,IP67 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC

ISOLATION RESISTANCE

I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3,EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A,EAC TP TC 020



OTHERS

MTBF

786.5Khrs min.       MIL-HDBK-217F (25℃)

DIMENSION

118*35*26mm (L*W*H)

PACKING

0.22Kg; 60pcs/14.2Kg/0.62CUFT



Model No. LPV-35-5 LPV-35-12 LPV-35-15 LPV-35-24 LPV-35-36
Output:  DC Voltage 5V 12V 15V 24V 36V
Rated Current 5A 3A 2.4A 1.5A 1A
Current Range 0~6A 0~3A 0~2.4A 0~1.5A 0~1A
Rated Power 30W 36W 36W 36W 36W
Ripple & Noise (max.) 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p
Voltage Tolerance ±8.0% ±5.0% ±5.0% ±5.0% ±5.0%
Line Regulation ±1.0%
Load Regulation ±4.0% ±2.0%
Setup, Rise Time 500ms, 20ms / 230VAC ---- 500ms, 20ms / 115VAC at full load
Hold up Time 50ms / 230 VAC    16ms/115VAC at full load
Input: Voltage Range 90~264VAC 127~370VDC

Frequency Range

47~63Hz
Efficiency (Typ.) 77% 84% 84% 85% 85%
AC Current (Typ.) 1.1A / 115VAC   0.7A / 230VAC
Inrush Current (Typ.) COLD START 55A (twidth=510µS measured at 50% lpeak) at 230VAC
Leakage Current <0.25mA / 240VAC
Protection: Overload 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage 5.75~6.75V 13.8~16.2V 17.25~20.25V 27.6~32.4V 41.4~48.6V
Protection type: Shut down o/p voltage, re-power on to recover
Environment: Working Temp. -30 ~ +65°C (Refer to "Derating Curve")
Working Humidity 20 ~ 90% RH non-condensing
Storage Temp., Humidity -40 ~ +80°C, 10 ~ 95% RH
Temp. Coefficient ±0.03%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min. / 1cycle, period for 60min. each along X, Y, Z axes
Safety & EMC Safety Standards UL1310, CAN/CSA C22.2 No. 223-M91, IP67 Approved; design refer to TUV EN60950-1
Withstand Voltage I/P - O/P : 3KVAC
Isolation Resistance I/P - O/P : 100M Ohms / 500VDC / 25°C / 70% RH
EMC Emission Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A,  EN61000-3-3
EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A
Others: MTBF 743.5Khrs min. MIL-HDBK-217F (25°C)
Dimension 148 x 40 x 30mm (LxWxH)
Packing 0.34Kg; 40pcs / 14.6Kg / 0.63CUFT

Model No. LPV-60-5 LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-36 LPV-60-48
Output:  DC Voltage 5V 12V 15V 24V 36V 48V
Rated Current 8A 5A 4A 2.5A 1.67A 1.25A
Current Range 0~8A 0~5A 0~4A 0~2.5A 0~1.67A 0~1.25A
Rated Power 40W 60W 60W 60W 60W 60W
Ripple & Noise (max.) 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p
Voltage Tolerance ±8.0% ±5.0% ±5.0% ±5.0% ±5.0% ±5.0%
Line Regulation ±1.0%
Load Regulation ±6.0% ±2.0%
Setup, Rise Time 500ms, 20ms / 230VAC ---- 500ms, 20ms / 115VAC at full load (for 5~36V); 500ms, 30ms/230VAC 500,ms / 115VAC at full load (for 48V)
Hold up Time 50ms / 230 VAC    16ms/115VAC at full load
Input: Voltage Range 90~264VAC 127~370VDC

Frequency Range

47~63Hz
Efficiency (Typ.) 75% 83% 83% 86% 86% 86%
AC Current (Typ.) 1.2A / 115VAC 1A / 230VAC
Inrush Current (Typ.) COLD START 60A (twidth=525µS measured at 50% lpeak) at 230VAC
Leakage Current <0.25mA / 240VAC
Protection: Overload 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage 5.75~6.75V 13.8~16.2V 17.25~20.25V 27.6~32.4V 41.4~48.6V 55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Environment: Working Temp. -30 ~ +70°C (Refer to "Derating Curve")
Working Humidity 20 ~ 90% RH non-condensing
Storage Temp., Humidity -40 ~ +80°C, 10 ~ 95% RH
Temp. Coefficient ±0.03%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min. / 1cycle, period for 60min. each along X, Y, Z axes
Safety & EMC Safety Standards UL879(except for LPV-60-5), UL1310(except LPV-60-5), CSA C22.2 No. 207-M89 (Except LPV-60-5, LPV-60-48), CAN/CSA C22.2 No. 223-M91(except LPV-60-5, LPV-60-48) IP67 approved; design refer to TUV EN60950-1
Withstand Voltage I/P - O/P : 3KVAC
Isolation Resistance I/P - O/P : 100M Ohms / 500VDC / 25°C / 70% RH
EMC Emission Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A,  EN61000-3-3
EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A
Others: MTBF 732Khrs min. MIL-HDBK-217F (25°C)
Dimension 162.5 x 42.5 x 32mm (LxWxH)
Packing 0.4Kg; 32pcs / 13.8Kg / 0.56CUFT

MODEL

LPV       -150-12

LPV-150-15

LPV       -150-24

LPV-150-36

LPV-150-48













OUTPUT

DC VOLTAGE

12V

15V

24V

36V

48V

RATED CURRENT

10A

8A

6.3A

4.2A

3.2A

CURRENT RANGE

0 ~ 10A

0 ~ 8A

0 ~ 6.3A

0 ~ 4.2A

0 ~ 3.2A

RATED POWER

120W

120W

151.2W

151.2W

153.6W

RIPPLE & NOISE (max.) Note.2

200mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

VOLTAGE TOLERANCE Note.3

±5.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±2.0%

SETUP, RISE TIME           Note.6

LPV-150: 500ms, 50ms / 230VAC      500ms, 50ms / 277VAC;             LPVL-150: 1500ms, 50ms / 115VAC

HOLD UP TIME (Typ.)

LPV-150: 18ms/230VAC      20ms/277VAC at full load;                      LPVL-150: 10ms/115VAC at full load















INPUT

VOLTAGE RANGE            Note.4

LPV-150: 180 ~ 305VAC    254 ~ 431VDC;            LPVL-150: 90~132VAC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

87%

88%

89%

89%

90%

AC CURRENT

LPV-150: 1.7A/230VAC   1.5A/277VAC;              LPVL-150: 3.0A/115VAC

INRUSH CURRENT

(Typ.)

Blank type

COLD START 60A(twidth=900μs measured at 50% Ipeak) at 230VAC

L type

COLD START 75A(twidth=900μs measured at 50% Ipeak) at 115VAC



MAX. No. of PSUs on 16A CIRCUIT BREAKER

Blank type

2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC



L type



1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC

LEAKAGE CURRENT

LPV-150: 0.25mA / 240VAC            LPVL-150:0.25mA / 120VAC







PROTECTION



OVERLOAD

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed



OVER VOLTAGE

13.5 ~ 18V

17 ~ 25V

27 ~ 35V

40 ~ 49V

52 ~ 63V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down







ENVIRONMENT

WORKING TEMP.

-25 ~ +65℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes











SAFETY & EMC



SAFETY STANDARDS



Blank type

UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004,

IP67 approved. Design refer to EN60950-1

L type

UL8750(type”HL”),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC

ISOLATION RESISTANCE

I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Blank type

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A(≤80% load), EN61000-3-3, EAC TP TC 020

L type

Compliance to FCC part 15



EMC IMMUNITY

Blank type

Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A, EAC TP TC 020

L type

Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level, criteria A



OTHERS

MTBF

703Khrs min.       MIL-HDBK-217F (25℃)

DIMENSION

191*63*37.5mm (L*W*H)

PACKING

LPV-150: 0.74Kg;20pcs/15.8Kg/0.95CUFT;           LPVL-150: 0.85Kg;20pcs/17Kg/0.95CUFT

NOTE

1.      All parameters NOT specially mentioned are measured at 230VAC(115VAC for LPVL} input, rated load and 25℃ of ambient temperature.

2.      Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.      Tolerance : includes set up tolerance, line regulation and load regulation.

4.      Derating may be needed under low input voltage. Please check the static characteristics for more details.

5.      The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

6.      Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.

7.      The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.

8.      Suitable for indoor use or outdoor use without direct sunlight exposure.

9.      The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.

10.        For any application note and IP water proof function installation caution, please refer our user manual before using.

https://www.meanwell.com/Upload/PDF/LED_EN.pdf





Model No. LPV-100-5 LPV-100-12 LPV-100-15 LPV-100-24 LPV-100-36 LPV-100-48
Output:  DC Voltage 5V 12V 15V 24V 36V 48V
Rated Current 12A 8.5A 6.7A 4.2A 2.8A 2.1A
Current Range 0~12A 0~8.5A 0~6.7A 0~4.2A 0~2.8A 0~2.1A
Rated Power 60W 102W 100.5W 100.8W 100.8W 100.8W
Ripple & Noise (max.) 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p
Voltage Tolerance ±8.0% ±5.0% ±5.0% ±5.0% ±5.0% ±5.0%
Line Regulation ±1.0%
Load Regulation ±6.0% ±2.0%
Setup, Rise Time 2000ms, 25ms / 230VAC -- 2000ms, 25ms / 115VAC
Hold up Time 50ms / 230 VAC    14ms/115VAC at full load
Input: Voltage Range 90~264VAC 127~370VDC

Frequency Range

47~63Hz
Efficiency (Typ.) 80% 85% 87% 88% 88% 89%
AC Current (Typ.) 2.2A / 115VAC 1.2A / 230VAC
Inrush Current (Typ.) COLD START 75A (twidth=700µS measured at 50% lpeak) at 230VAC
Leakage Current <0.25mA / 240VAC
Protection: Overload 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage 5.75~6.75V 13.8~16.2V 17.25~20.25V 27.6~32.4V 41.4~48.6V 55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Environment: Working Temp. -30 ~ +70°C (Refer to "Derating Curve")
Working Humidity 20 ~ 90% RH non-condensing
Storage Temp., Humidity -40 ~ +80°C, 10 ~ 95% RH
Temp. Coefficient ±0.03%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min. / 1cycle, period for 60min. each along X, Y, Z axes
Safety & EMC Safety Standards IP67 approved; Design refer to TUV EN60950-1
Withstand Voltage I/P - O/P : 3KVAC
Isolation Resistance I/P - O/P : 100M Ohms / 500VDC / 25°C / 70% RH
EMC Emission Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A (<80% Load) , EN61000-3-3
EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A
Others: MTBF 703Khrs min. MIL-HDBK-217F (25°C)
Dimension 190 x 52 x 37mm (LxWxH)
Packing 0.63Kg; 20pcs / 13.6Kg / 0.51CUFT

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Recently Viewed Items


People who bought this product, also bought
