MEANWELL IDLV Series Constant Voltage Power Supply

$ 36.52 $ 43.00

Many In Stock

Ballast /Drivers

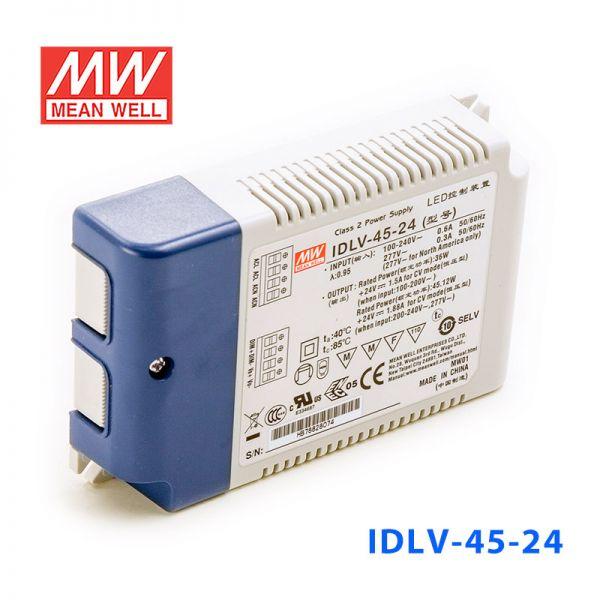

IDLV-45-24

S7

Add to wishlist

Features:

  • Constant Voltage PWM style output with frequenc y1KHz
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption<0.5W(Blank-Type)
  • Function options: 2 in 1 dimming (dim-to-off) Auxiliar yDC output
Applications:
  • LED strip lighting
  • Indoor LED lighting
  • LED decorative lighting
  • LED architecture lighting

Model Encoding:

IDLV-45A-12

IDLV---->Series name

45---->Rated wattage

A----->Function options

12----->Rated output voltage(12/24/36/48/60V)


 Type Function
Blank 2 in 1 dimming (0~10VDC and 10V PWM
A
2 in 1 dimming and Auxiliar yDC output



MODEL

IDLV-45 -12

IDLV-45 -24

IDLV-45 -36

IDLV-45 -48

IDLV-45 -60









OUTPUT

DC VOLTAGE

12V

24V

36V

48V

60V

RATED CURRENT

3.0A

1.88A

1.25A

0.94A

0.75A

RATED POWER

36W

45.12W

45W

45.12W

45W

DIMMING RANGE

0~100%

VOLTAGE TOLERANCE

±10%

PWM FREQUENCY (Typ.)

1KHz(±20%)

SETUP TIME Note.3

500ms / 230VAC 1200ms/115VAC

AUXILIARY DC OUTPUT Note.4

Nominal 12V(deviation 11.4~12.6)@50mA for A-Type only











INPUT

VOLTAGE RANGE Note.2

90 ~ 295VAC         127 ~ 417VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load

(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)

TOTAL HARMONIC DISTORTION

THD< 20%(@load≧60%/115VAC,230VAC; @load≧75%/277VAC)

(Please refer to “TOTAL HARMONIC DISTORTION” section)

EFFICIENCY (Typ.)

84%

86%

88%

88%

90%

AC CURRENT (Typ.)

0.6A / 115VAC      0.4A / 230VAC         0.3A / 277VAC

INRUSH CURRENT(Typ.)

COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER

32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

NO LOAD POWER CONSUMPTION

<0.5W for Blank-Type, <1.2W for A-Type



PROTECTION

SHORT CIRCUIT

Shut down O/P voltage, re-power on to recovery

OVER CURRENT

105 ~ 115%

Protection type : Hiccup mode, recovers automatically after fault condition is removed





ENVIRONMENT

WORKING TEMP.

Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

MAX. CASE TEMP.

Tcase=+85℃

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 40℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes





SAFETY & EMC

SAFETY STANDARDS

UL8750,CSA C22.2 NO.250.13-12; EN/AS/NZS 61347-1 & EN/AS/NZS 61347-2-13 independent, EN62384, GB19510.1, GB19510.14, BIS IS15885(for IDLV-45-12,24,48 only), EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55015, EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3,GB17743,GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level(surge immunity:Line-Line:1KV), EAC TP TC 020



OTHERS

MTBF

386.59Khrs min.      MIL-HDBK-217F (25℃)

DIMENSION

120*75*25mm (L*W*H)

PACKING

0.22Kg;54pcs/13Kg/ 0.93CUFT

Note:

1. All parameters NOT speciall ymentioned are measured at 230VAC input, rated current and 25 °C of ambient temperature.
2. De rating ma ybe needed under low input voltages. Please
refer to STATIC CHARACTERISTIC sections for details
3. Length of set up time is measured at cold first start. Turning ON/OFF the driver ma ylead to increase of the set up time.
4. Aux. 12V will be damaged with short circuit; It will not be available with dimming off or output no load condition.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be
affected b ythe complete installation, the final equipment manufacturers must re-qualif yEMC Directive on the complete installation again.
6. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft)

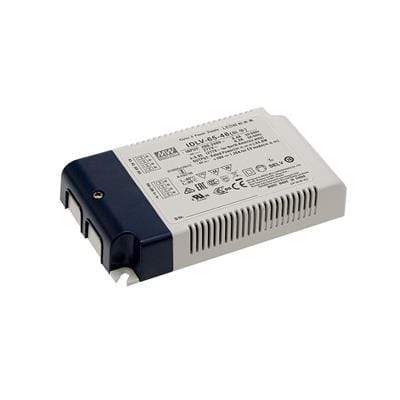

MODEL

IDLV-65 -12

IDLV-65 -24

IDLV-65 -36

IDLV-65 -48

IDLV-65 -60









OUTPUT

DC VOLTAGE

12V

24V

36V

48V

60V

RATED CURRENT

4.2A

2.4A

1.8A

1.35A

1.08A

RATED POWER

50.4W

57.6W

64.8W

64.8W

64.8W

DIMMING RANGE

0~100%

VOLTAGE TOLERANCE

±10%

PWM FREQUENCY (Typ.)

1KHz(±20%)

SETUP TIME Note.3

500ms / 230VAC

AUXILIARY DC OUTPUT Note.4

Nominal 12V(deviation 11.4~12.6)@50mA for A-Type only













INPUT

VOLTAGE RANGE Note.2

180 ~ 295VAC         254 ~ 417VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.95/230VAC, PF>0.9/277VAC@full load

(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)

TOTAL HARMONIC DISTORTION

THD< 20%(@load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)

EFFICIENCY (Typ.)

85%

87%

88%

89%

90%

AC CURRENT (Typ.)

0.4A/230VAC         0.3A/277VAC

INRUSH CURRENT(Typ.)

COLD START 30A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER

32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

NO LOAD POWER CONSUMPTION

<0.5W for Blank-Type, <1.2W for A-Type



PROTECTION

SHORT CIRCUIT

Shut down O/P voltage, re-power on to recovery

OVER CURRENT

105 ~ 115%

Protection type : Hiccup mode, recovers automatically after fault condition is removed





ENVIRONMENT

WORKING TEMP.

Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

MAX. CASE TEMP.

Tcase=+85℃

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 40℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes





SAFETY & EMC

SAFETY STANDARDS

UL8750,CSA C22.2 NO.250.13-12; EN/AS/NZS 61347-1 & EN/AS/NZS 61347-2-13 independent, EN62384, GB19510.1,GB19510.14, BIS IS15885(for IDLV-65-12,24,48 only), EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55015, EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3,GB17743,GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level(surge immunity:Line-Line:1KV), EAC TP TC 020



OTHERS

MTBF

398.7K hrs min.      MIL-HDBK-217F (25℃)

DIMENSION

130*75*25mm (L*W*H)

PACKING

0.23Kg;54pcs/13.5Kg/ 0.96CUFT
