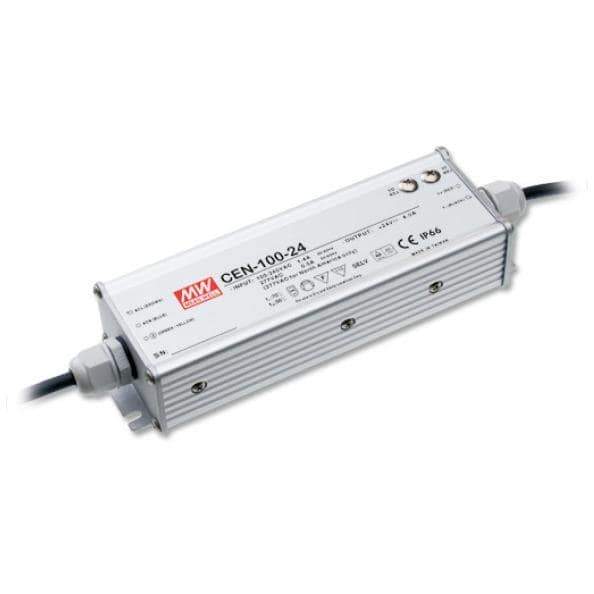

MEANWELL CEN Constant Voltage Power Supply

$ 63.90 $ 91.10

Many In Stock

Ballast /Drivers

CEN-60-12

S7

Add to wishlist
Features :

‧Universal AC input / Full range (up to 295VAC)

‧Protections: Short circuit / Over current / Over voltage / Over temperature

‧Output voltage and constant current level adjustable

‧Built-in active PFC function

‧IP66 design for indoor or outdoor installations

‧Class 2 power unit

‧Cooling by free air convection

‧100% full load burn-in test

‧High reliability

‧Suitable for LED lighting and moving sign applications

‧Compliance to worldwide safety regulations for lighting

‧Suitable for dry / damp / wet locations

Specification:

MODEL

CEN-60-12

CEN-60-15

CEN-60-20

CEN-60-24

CEN-60-30

CEN-60-36

CEN-60-42

CEN-60-48

CEN-60-54













OUTPUT

DC VOLTAGE

12V

15V

20V

24V

30V

36V

42V

48V

54V

CONSTANT CURRENT REGION Note.5

9 ~ 12V

11.25 ~ 15V

15 ~ 20V

18 ~ 24V

22.5 ~ 30V

27 ~ 36V

31.5 ~ 42V

36 ~ 48V

40.5 ~ 54V

RATED CURRENT

5A

4A

3A

2.5A

2A

1.7A

1.45A

1.3A

1.15A

CURRENT RANGE

0 ~ 5A

0 ~ 4A

0 ~ 3A

0 ~ 2.5A

0 ~ 2A

0 ~ 1.7A

0 ~ 1.45A

0 ~ 1.3A

0 ~ 1.15A

RATED POWER

60W

60W

60W

60W

60W

61.2W

60.9W

62.4W

62.1W

RIPPLE & NOISE (max.) Note.2

2Vp-p

2.4Vp-p

1.8Vp-p

2.4Vp-p

3Vp-p

3.6Vp-p

4Vp-p

4.6Vp-p

5Vp-p

VOLTAGE ADJ. RANGE (SVR1)

10.8 ~ 13.5V

13.5 ~ 17V

17 ~ 22V

22 ~ 27V

27 ~ 33V

33 ~ 40V

37 ~ 46V

43 ~ 53V

49 ~ 58V

CURRENT ADJ. RANGE(SVR2)

3.75 ~ 5A

3 ~ 4A

2.3 ~ 3A

1.9 ~ 2.5A

1.5 ~ 2A

1.3 ~ 1.7A

1.1 ~ 1.45A

1 ~ 1.3A

0.9 ~ 1.15A

VOLTAGE TOLERANCE Note.3

±10%

LINE REGULATION

±3.0%

LOAD REGULATION

±5.0%

SETUP TIME

500ms / 230VAC 1200ms / 115VAC at full load









INPUT

VOLTAGE RANGE            Note.4

90 ~ 295VAC           127 ~ 417VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)

TOTAL HARMONIC DISTORTION

THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input

EFFICIENCY (Typ.)

86%

87%

88%

89%

90%

90%

90%

91%

91%

AC CURRENT (Typ.)

0.8A/115VAC          0.4A/230VAC           0.3A/277VAC

INRUSH CURRENT (Typ.)

COLD START 45A(twidth=85μs measured at 50% Ipeak) at 230VAC

MAX. No. of PSUs on 16A CIRCUIT BREAKER

32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 240VAC







PROTECTION

OVER CURRENT

95 ~ 110%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

14.5 ~ 17V

17.5 ~ 21V

22.8 ~ 26V

28 ~ 34V

34 ~ 38V

41 ~ 46V

47 ~ 52V

54 ~ 60V

59 ~ 65V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, re-power on to recover





ENVIRONMENT

WORKING TEMP.

-30 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes





SAFETY & EMC

SAFETY STANDARDS

UL879, UL8750, CSA C22.2 No. 207-M89, CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, IP66, J61347-1, J61347-2-13, BIS IS15885(for 36V,48V,54V only), EAC TP TC 004,GB19510.1,GB19510.14 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55015, EN61000-3-2 Class C (≧75% load) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547, light industry level (surge 4KV), criteria B, EAC TP TC 020



OTHERS

MTBF

523.4Khrs min.       MIL-HDBK-217F (25℃)

DIMENSION

185*62.5*40.5mm (L*W*H)

PACKING

0.6Kg;24pcs/15.4Kg/1.29CUFT


MODEL

CEN-75-15

CEN-75-20

CEN-75-24

CEN-75-30

CEN-75-36

CEN-75-42

CEN-75-48

CEN-75-54













OUTPUT

DC VOLTAGE

15V

20V

24V

30V

36V

42V

48V

54V

CONSTANT CURRENT REGION Note.5

11.25 ~ 15V

15 ~ 20V

18 ~ 24V

22.5 ~ 30V

27 ~ 36V

31.5 ~ 42V

36 ~ 48V

40.5 ~ 54V

RATED CURRENT

5A

3.75A

3.15A

2.5A

2.1A

1.8A

1.57A

1.4A

CURRENT RANGE

0 ~ 5A

0 ~ 3.75A

0 ~ 3.15A

0 ~ 2.5A

0 ~ 2.1A

0 ~ 1.8A

0 ~ 1.57A

0 ~ 1.4A

RATED POWER

75W

75W

75.6W

75W

75.6W

75.6W

75.36W

75.6W

RIPPLE & NOISE (max.) Note.2

2.7Vp-p

2Vp-p

2.7Vp-p

3Vp-p

3.6Vp-p

4Vp-p

4.6Vp-p

5Vp-p

VOLTAGE ADJ. RANGE (SVR1)

13.5 ~ 17V

17 ~ 22V

22 ~ 27V

27 ~ 33V

33 ~ 40V

37 ~ 46V

43 ~ 53V

49 ~ 58V

CURRENT ADJ. RANGE(SVR2)

3.75 ~ 5A

2.81 ~ 3.75A

2.36 ~ 3.15A

1.88 ~ 2.5A

1.58 ~ 2.1A

1.35 ~ 1.8A

1.18 ~ 1.57A

1.05 ~ 1.4A

VOLTAGE TOLERANCE Note.3

±10%

LINE REGULATION

±3.0%

LOAD REGULATION

±5.0%

SETUP TIME

500ms / 230VAC 1200ms / 115VAC at full load









INPUT

VOLTAGE RANGE            Note.4

90 ~ 295VAC           127 ~ 417VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)

TOTAL HARMONIC DISTORTION

THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input

EFFICIENCY (Typ.)

87%

88%

89%

90%

90%

90%

91%

91%

AC CURRENT (Typ.)

1.1A/115VAC 0.55A/230VAC 0.4A/277VAC

INRUSH CURRENT (Typ.)

COLD START 45A(twidth=85μs measured at 50% Ipeak) at 230VAC

MAX. No. of PSUs on 16A CIRCUIT BREAKER

25 units (circuit breaker of type B) / 25 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 240VAC







PROTECTION

OVER CURRENT

95 ~ 110%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

17.5 ~ 21V

22.8 ~ 26V

28 ~ 34V

34 ~ 38V

41 ~ 46V

47 ~ 52V

54 ~ 60V

59 ~ 65V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, re-power on to recover





ENVIRONMENT

WORKING TEMP.

-30 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes





SAFETY & EMC

SAFETY STANDARDS

UL879, UL8750, CSA C22.2 No. 207-M89, CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, IP66, J61347-1, J61347-2-13, BIS IS15885(for 36V,48V,54V only), EAC TP TC 004,GB19510.1,GB19510.14 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55015, EN61000-3-2 Class C (≧75% load) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547, light industry level (surge 4KV), criteria B, EAC TP TC 020



OTHERS

MTBF

522.2Khrs min.       MIL-HDBK-217F (25℃)

DIMENSION

185*62.5*40.5mm (L*W*H)

PACKING

0.6Kg;24pcs/15.4Kg/1.29CUFT


MODEL

CEN-100-20

CEN-100-24

CEN-100-30

CEN-100-36

CEN-100-42

CEN-100-48

CEN-100-54













OUTPUT

DC VOLTAGE

20V

24V

30V

36V

42V

48V

54V

CONSTANT CURRENT REGION Note.5

13 ~ 20V

15.6 ~ 24V

19.5 ~ 30V

23.4 ~ 36V

27.3 ~ 42V

31.2 ~ 48V

35.1 ~ 54V

RATED CURRENT

4.8A

4A

3.2A

2.65A

2.28A

2A

1.77A

CURRENT RANGE

0 ~ 4.8A

0 ~ 4A

0 ~ 3.2A

0 ~ 2.65A

0 ~ 2.28A

0 ~ 2A

0 ~ 1.77A

RATED POWER

96W

96W

96W

95.4W

95.76W

96W

95.58W

RIPPLE & NOISE (max.) Note.2

2.0Vp-p

2.7Vp-p

3Vp-p

3.6Vp-p

4Vp-p

4.6Vp-p

5Vp-p

VOLTAGE ADJ. RANGE (SVR1)

17 ~ 22V

22 ~ 27V

27 ~ 33V

33 ~ 40V

37 ~ 46V

43 ~ 53V

49 ~ 58V

CURRENT ADJ. RANGE(SVR2)

3.12 ~ 4.8A

2.6 ~ 4A

2.08 ~ 3.2A

1.72 ~ 2.65A

1.48 ~ 2.28A

1.3 ~ 2A

1.15 ~ 1.77A

VOLTAGE TOLERANCE Note.3

±10%

LINE REGULATION

±3.0%

LOAD REGULATION

±5.0%

SETUP TIME

500ms / 230VAC 1200ms / 115VAC at full load









INPUT

VOLTAGE RANGE            Note.4

90 ~ 295VAC           127 ~ 417VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)

TOTAL HARMONIC DISTORTION

THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input

EFFICIENCY (Typ.)

88%

89%

90%

90%

90%

91%

91%

AC CURRENT (Typ.)

1.4A/115VAC 0.7A/230VAC 0.5A/277VAC

INRUSH CURRENT (Typ.)

COLD START 45A(twidth=85μs measured at 50% Ipeak) at 230VAC

MAX. No. of PSUs on 16A CIRCUIT BREAKER

19 units (circuit breaker of type B) / 19 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 240VAC







PROTECTION

OVER CURRENT

95 ~ 110%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

22.8 ~ 26V

28 ~ 32V

34 ~ 38V

41 ~ 46V

47 ~ 52V

54 ~ 60V

59 ~ 68V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, re-power on to recover





ENVIRONMENT

WORKING TEMP.

-30 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes





SAFETY & EMC

SAFETY STANDARDS

UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), TUV EN61347-1, EN61347-2-13, IP66, J61347-1, J61347-2-13, BIS IS15885(for 36V,42V,48V,54V only), EAC TP TC 004, GB19510.1,GB19510.14 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55015, EN61000-3-2 Class C (≧65% load) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547, light industry level (surge 4KV), criteria B, EAC TP TC 020



OTHERS

MTBF

519.5Khrs min.       MIL-HDBK-217F (25℃)

DIMENSION

195*62.5*40.5mm (L*W*H)

PACKING

0.6Kg;24pcs/15.4Kg/1.29CUFT

NOTE

1.  All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2.  Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.  Tolerance : includes set up tolerance, line regulation and load regulation.

4.  Derating may be needed under low input voltage. Please check the static characteristics for more details.

5.  Please refer to "DRIVING METHODS OF LED MODULE".

6.  The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

7.  Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.

8.  To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

9.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
