LEDVANCE LED Linear Compact IP20 Batten x2Pcs
LEDVANCE LED Linear Compact IP20 Batten x2Pcs
SKU SKU:1798554
Low stock: 4 left
Couldn't load pickup availability
Share
Technical data sheets
Data Sheet
*Check stock before ordering. Lead time 4 working days.*25W - Cool White: Lead time 2 weeks.*
20W - Warm White: Lead time 2 weeks.*
Product Details

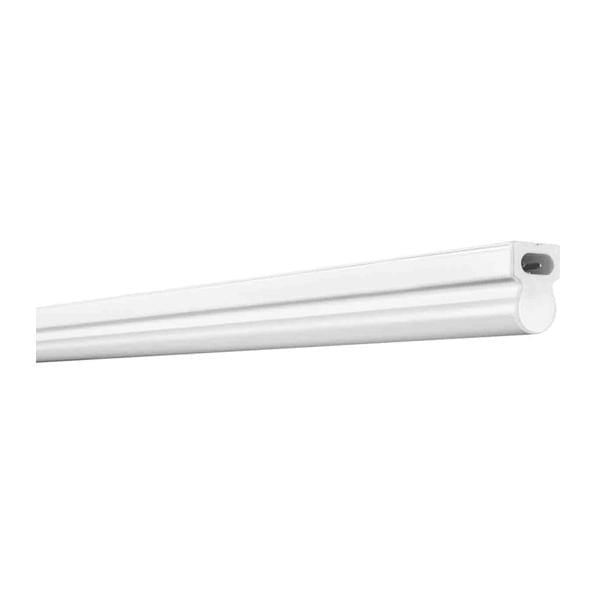

LINEAR COMPACT SWITCH 600 | Compact single or light line luminaire with switch, 8W, 3000K
Ledvance Linear Compact Switches are the ideal indoor lighting option for those looking for a compact, flexible linear luminaire lighting solution. The linear switch offers versatile mounting options as it can be mounted to ceilings, walls, in corridors, entrances, stairwells and usable under shelves, cabinets with up to 10 luminaires connected seamlessly.
Achieving a luminous flux of 800 lm and designed with a high luminous efficiency of up to 100 lm per watt. The colour temperature of 3000K of warm white light colour tone, this Linear compact switch luminaire will ensure your environment is a pleasant atmosphere.
Key product benefits include
• Compact dimensions
• Little space required thanks to compact dimensions
• Seamless connection of up to 10 luminaires in a line
• Handy switch directly installed on the luminaire
• Low flicker light thanks to special electronic control gear
• Flexible installation in 2 different angles with 2 different mounting options
• Flexible application due to a wide range of available lengths of 300 to 1200 mm.
• Angled connection possible with included cable
Additional features and benefits
• Built-in switch
• Up to 10 luminaires connectable
• Translucent end caps
• Versions with luminous flux 400…1500 lm available
• 4 different lengths available
• High luminous efficacy: up to 100 lm/W
• Glow Wire Test according to IEC 60695-2-12: 850 °C
Typical Applications
Linear Compact Switches are used when you require, clear consistent light in smaller areas. It reduces the costs compared to Fluorescent lamps with very little maintenance. Some areas you can use these lights or luminaires include:
• Direct replacement for luminaires with fluorescent lamps
• Indoor applications
• Corridors, entrance areas, stairwells, living rooms, basements
• Accent lighting
• Public areas
• Cove lighting
• Shelves, furniture integration or under cabinet mounting
• Seamless linear lighting
Equipment / Accessories
• All required accessories included
FAQ
Is this light Dimmable?
This light is non-dimmable.
What is the minimum operating temperature?
This Linear compact switch luminaire from Ledvance has an operational temperature range of -20 to +40 °C
What are the mounting options for Linear compact switch luminaire?
The Linear compact switch luminaire can be mounted to ceilings, wall, shelves, under cabinets and consists of flexible installation with different mounting options.
What type of connection does this linear compact switch contain?
Screw terminal, 2-Pole (L,N)
Standards
CE/CB/TÜV SÜD/EAC/RoHS
Specifications
8W - Warm White
| Attribute | Value |
| Type | Linear Compact Switch |
| Length | 573 mm |
| Width | 28 mm |
| Depth | 36 mm |
| Wattage | 8 W |
| Number of Lamps | 1 |
| Colour Tone | Warm White |
| Lamp Type | LED |
| Colour Temperature | 3000K |
| Life Hours | 50000h |
| Voltage Rating | 220 → 240 V |
| Colour Reference | 830 |
| IP Rating | IK03, IP20 |
| EU Energy Efficiency Rating | A, A+, A++ |
| Standards Met | CB, CE, TUV SUD |
10W - Cool White
| Attribute | Value |
| Type | Linear Luminaire |
| Length | 573 mm |
| Width | 24 mm |
| Depth | 36 mm |
| Wattage | 10 W |
| Number of Lamps | 1 |
| Lamp Type | LED |
| Colour Tone | Cool White |
| Colour Temperature | 4000K |
| Life Hours | 50000h |
| Voltage Rating | 220 → 240 V |
| Colour Reference | 840 |
| IP Rating | IK03, IP20 |
| EU Energy Efficiency Rating | A, A+, A++ |
| Standards Met | CB, CE, TUV SUD |
14W - Cool White
| Attribute | Value |
| Type | Linear Compact Switch |
| Length | 1.173 m |
| Width | 28 mm |
| Depth | 36 mm |
| Wattage | 14 W |
| Number of Lamps | 1 |
| Lamp Type | LED |
| Colour Tone | Cool White |
| Colour Temperature | 4000K |
| Life Hours | 50000h |
| Colour Reference | 840 |
| Voltage Rating | 220 → 240 V |
| IP Rating | IK03, IP20 |
| EU Energy Efficiency Rating | A, A+, A++ |
| Standards Met | CB, CE, TUV SUD |
15W - Cool White
| Attribute | Value |
| Type | Linear Luminaire |
| Length | 873 mm |
| Width | 24 mm |
| Depth | 36 mm |
| Wattage | 15 W |
| Number of Lamps | 1 |
| Lamp Type | LED |
| Colour Tone | Cool White |
| Colour Temperature | 4000K |
| Life Hours | 50000h |
| Voltage Rating | 220 → 240 V |
| Colour Reference | 840 |
| IP Rating | IK03, IP20 |
| EU Energy Efficiency Rating | A, A+, A++ |
| Standards Met | CB, CE, TUV SUD |
15W - Warm White
| Attribute | Value |
| Type | Linear Luminaire |
| Length | 873 mm |
| Width | 24 mm |
| Depth | 36 mm |
| Wattage | 15 W |
| Number of Lamps | 1 |
| Colour Tone | Warm White |
| Lamp Type | LED |
| Life Hours | 50000h |
| Colour Temperature | 3000K |
| Voltage Rating | 220 → 240 V |
| Colour Reference | 830 |
| IP Rating | IK03, IP20 |
| Standards Met | CB, CE, TUV SUD |
| EU Energy Efficiency Rating | A, A+, A++ |
20W - Cool White
| Attribute | Value |
| Type | Linear Luminaire |
| Length | 1.173 m |
| Width | 24 mm |
| Depth | 36 mm |
| Wattage | 20 W |
| Number of Lamps | 1 |
| Lamp Type | LED |
| Colour Tone | Cool White |
| Life Hours | 50000h |
| Colour Temperature | 4000K |
| Colour Reference | 840 |
| Voltage Rating | 220 → 240 V |
| IP Rating | IK03, IP20 |
| EU Energy Efficiency Rating | A, A+, A++ |
| Standards Met | CB, CE, TUV SUD |
20W - Warm White
| Attribute | Value |
| Type | Linear Luminaire |
| Length | 1.173 m |
| Width | 24 mm |
| Depth | 36 mm |
| Wattage | 20 W |
| Number of Lamps | 1 |
| Lamp Type | LED |
| Colour Tone | Warm White |
| Life Hours | 50000h |
| Colour Temperature | 3000K |
| Voltage Rating | 220 → 240 V |
| Colour Reference | 830 |
| IP Rating | IK03, IP20 |
| EU Energy Efficiency Rating | A, A+, A++ |
| Standards Met | CB, CE, TUV SUD |
25W - Warm White
| Attribute | Value |
| Type | Linear Luminaire |
| Length | 1.473 m |
| Width | 24 mm |
| Depth | 36 mm |
| Wattage | 25 W |
| Number of Lamps | 1 |
| Colour Tone | Warm White |
| Lamp Type | LED |
| Life Hours | 50000h |
| Colour Temperature | 3000K |
| Voltage Rating | 220 → 240 V |
| Colour Reference | 830 |
| IP Rating | IK03, IP20 |
| EU Energy Efficiency Rating | A, A+, A++ |
| Standards Met | CB, CE, TUV SUD |
25W - Cool White
| Attribute | Value |
| Type | Linear Luminaire |
| Length | 1.473 m |
| Width | 24 mm |
| Depth | 36 mm |
| Wattage | 25 W |
| Number of Lamps | 1 |
| Lamp Type | LED |
| Colour Tone | Cool White |
| Life Hours | 50000h |
| Colour Temperature | 4000K |
| Colour Reference | 840 |
| Voltage Rating | 220 → 240 V |
| IP Rating | IK03, IP20 |
| EU Energy Efficiency Rating | A, A+, A++ |
| Standards Met | CB, CE, TUV SUD |
