Euchips LD 2H Series 24V Non-Dimmable LED Constant Voltage Driver
Euchips LD 2H Series 24V Non-Dimmable LED Constant Voltage Driver
SKU SKU:107200640201
Couldn't load pickup availability
Share
Technical Details:
75W 24VDC 2ch LED Driver LD75-2H24V
Features
1. Design of two channels CV output
2. Apply to indoor LED light LED tube, LED strip light etc
3. Small volume, High efficiency, High reliability, Long time
4. Working normally at -20℃ ~+60℃
5. Protect Auto recovery when Load, short, Over voltage, is removed
6. The typical efficiency can up to 88%
7. Certification CE, RoHS
8. 100% full load aging test
9. Warranty 36 months
Technical Paramters
| Model | LD75-2H24V | |
| Input | Efficiency | 88%@220VAC, Full load |
| Voltage | 200VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | / | |
| Current | 0.85Amax@220VAC, Full load | |
| Inrush Current | Cold start <40A @200VAC(full load) | |
| Output | Current/Voltage/Power | 3.125A/24VDC/75W |
| Ripple Current | <350mVp-p | |
| Channel | 2 | |
| Voltage Tolerance | ±2% | |
| Turn On Delay Time | <1s, at 220Vac | |
| Protection | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <36VDC Shut down the output, After restart recovers automatically. | |
| Over Current | <5.2A auto recovery when failure is removed | |
| Others | Working Temp. | -20℃~60℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 26,000h@tc:90℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >100,000 times | |
| Packing Size | Net weight: 255g±5%/PCS; 50PCS/Carton; 13.25kg±5%/Carton; Carton Size: 304*259*259mm(L*W*H) | |
| Dimension | 235*53*19mm(L*W*H) | |

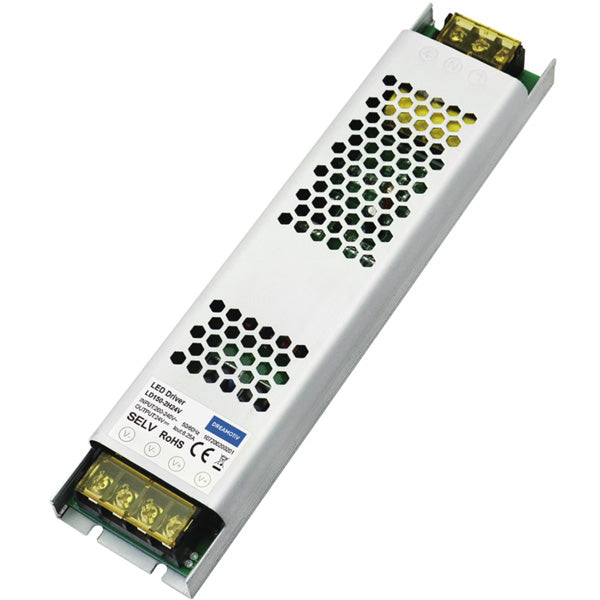

150W 24VDC 2ch LED Driver LD150-2H24V
Features
1. Design of two channels CV output
2. Apply to indoor LED light LED tube, LED strip light etc
3. Small volume, High efficiency, High reliability, Long time
4. Working normally at -20℃ ~+60℃
5. Protect Auto recovery when Load, short, Over voltage, is removed
6. The typical efficiency can up to 89%
7. Certification CE, RoHS
8. 100% full load aging test
9. Warranty 36 months
Technical Paramters
| Model | LD150-2H24V | |
| Input | Efficiency | 89%@220VAC, Full load |
| Voltage | 200VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | / | |
| Current | 1.75Amax@220VAC, Full load | |
| Inrush Current | Cold start <50A @200VAC(full load) | |
| Output | Current/Voltage/Power | 6.25A/24VDC/150W |
| Ripple Current | <350mVp-p | |
| Channel | 2 | |
| Voltage Tolerance | ±2% | |
| Turn On Delay Time | <1s, at 220Vac | |
| Protection | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <36VDC Shut down the output, After restart recovers automatically. | |
| Over Current | <8A auto recovery when failure is removed | |
| Others | Working Temp. | -20℃~60℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 26,000h@tc:90℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >100,000 times | |
| Packing Size | Net weight: 255g±5%/PCS; 50PCS/Carton; 13.25kg±5%/Carton; Carton Size: 304*259*259mm(L*W*H) | |
| Dimension | 235*53*23mm(L*W*H) | |

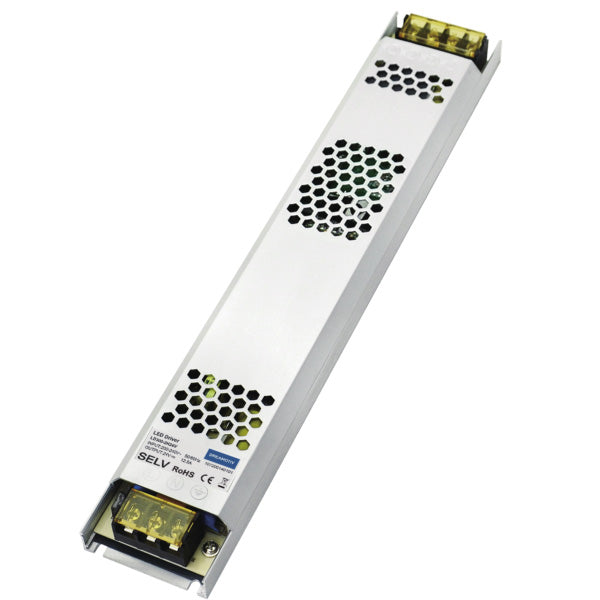

200W 24VDC 2ch LED Driver LD200-2H24V
Features
1. Design of two channels CV output
2. Apply to indoor LED light LED tube, LED strip light etc
3. Small volume, High efficiency, High reliability, Long time
4. Working normally at -20℃ ~+60℃
5. Protect Auto recovery when Load, short, Over voltage, is removed
6. The typical efficiency can up to 90%
7. Certification CE, RoHS
8. 100% full load aging test
9. Warranty 36 months
Technical Paramters
| Model | LD200-2H24V | |
| Input | Efficiency | 90%@240VAC, Full load |
| Voltage | 200VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | / | |
| Current | 2.6Amax | |
| Inrush Current | Cold start <50A @240VAC(full load) | |
| Output | Current/Voltage/Power | 8.33A/24VDC/200W |
| Ripple Current | <350mVp-p | |
| Channel | 2 | |
| Voltage Tolerance | ±2% | |
| Protection | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <36VDC Shut down the output, After restart recovers automatically. | |
| Over Current | <11A auto recovery when failure is removed | |
| Others | Working Temp. | -20℃~60℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 26,000h@tc:90℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >100,000 times | |
| Packing Size | Net weight: 335g±5%/PCS; 50PCS/Carton; 17.25kg±5%/Carton; Carton Size: 324*294*254mm(L*W*H) | |
| Dimension | 307*53*21.5mm(L*W*H) | |
