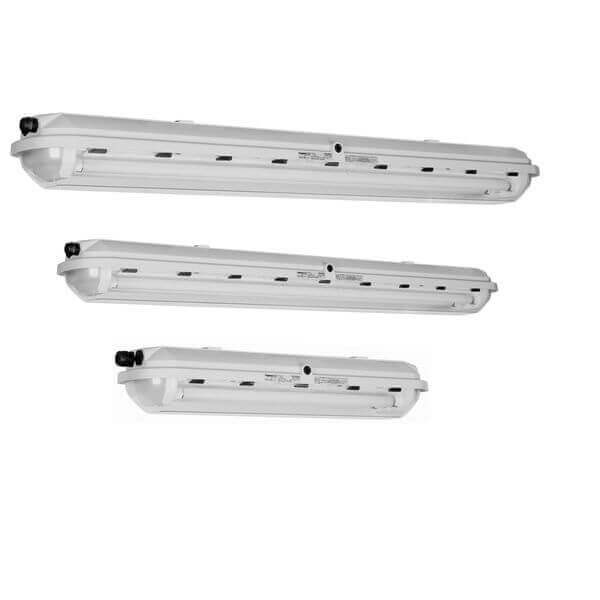

APPLETON ATX™ FE Series Nonmetallic Fluorescent Luminaires

Technical Details:

Lead time 14-18 weeks. Subject to changes/delay.

Datasheet

T8 Tube

Tube Not included

C1Z1,2X36 110-254VAC 50/60HZ,ENTRIES:3XM20

Surface/Suspension Mounting and Through Wiring Version (three phase)

Connection via 2 x 5 terminals. Capacity (flexible/solid): 4 mm2 /6 mm2 (0.0062 in2 /0.0093 in2 ) — 10/8 AWG.

Number of lamps: 2

Power:36W

Lamp Type: G13

Voltage(V): 110/254

Weight Kgs (IBS):7.9 (17.42)

Volume: 54.2 (3307.49)
