EUCHIPS EUP 1H24V-0 Series DALI Constant Voltage Dimming Driver
EUCHIPS EUP 1H24V-0 Series DALI Constant Voltage Dimming Driver
SKU SKU:102200011101
Regular price
$ 30.00 SGD
Regular price
$ 30.00 SGD
Sale price
$ 30.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details:
- Model: EUP40D-1H24V-0
- Input Voltage: 220-240VAC
- Output Power: 40W
- Output Voltage: 24VDC
- Output Current: 1.7A
- Channels: 1
- Model: EUP75D-1H24V-0
- Input Voltage: 220~240VAC
- Output Power: 75W
- Output Voltage: 24VDC
- Output Current: 3.1A
- Output Channel: 1
Feature
1. Single channel constant voltage output
2. Support a variety of dimming mode（DALI/Touch DIM）
3. High range of input voltage 220VAC ~ 240VAC
4. Built-in active PFC function
5. Dimming effect smooth, no flicker
6. Over load protection; Short circuit protection; Over temperature protection
7. Suitable for indoor LED lighting application, such as LED Dimension (mm) strips, spot light，wall washer,and so on
Technical Parameter
EUP40D-1H24V-0(102200070101)
| Model | EUP40D-1H24V-0 | |
| Input | Efficiency | >88%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@115VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.23Amax@230VAC | |
| Inrush Current(max) | Cold start 30A(twidth=650us measured at 50% Ipeak) @230VAC | |
| Output | Current(A)/Voltage (VDC) Power(W) | 1.7A/24VDC/40W |
| R & N (Max) | 400mVp-p | |
| Channel | 1 | |
| Current Tolerance | ±3% | |
| Turn on delay Time | <1.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI Dimming, Touch DIM |
| Dimming Range | 1%-100% Dimming to off | |
| Protection | Over temperature | Shut down and auto-restart after normal temperature |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short Circuit | after fault removed Close output ,the output current recovers automatically | |
| Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 225g±5%/PCS; 50PCS/Carton;11.75kg±5%/Carton; Carton Size: 517*337*179mm(L*W*H) | |
| Dimension | 137*82*33mm（L*W*H） | |

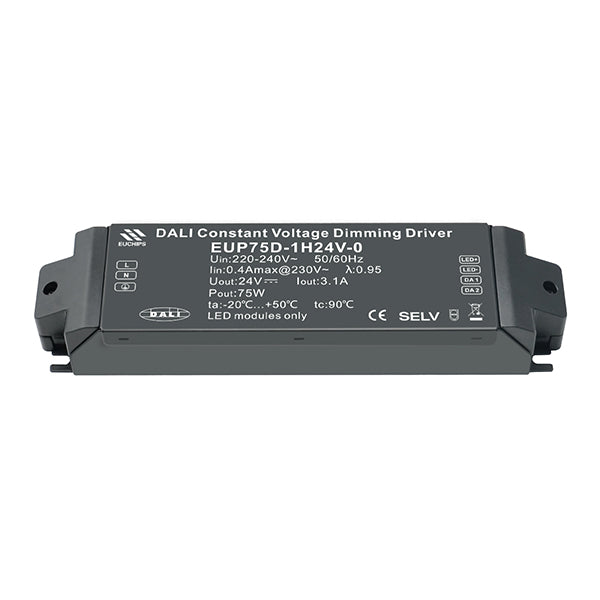

EUP75D-1H24V-0 (102200061101)
| Model | EUP75D-1H24V-0 | |
| Input | Efficiency | >85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@115VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.4Amax@230VAC | |
| Inrush Current(max) | Cold start 45A@230VAC | |
| Output | Current(A)/Voltage (VDC) Power(W) | 3.1A/24VDC/74.4W |
| R & N (Max) | 240mVp-p | |
| Channel | 1 | |
| Current Tolerance | ±3% | |
| Turn on delay Time | <1.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI Dimming / Touch DIM |
| Dimming Range | 1%-100% Dimming to off | |
| Protection | Over voltage | Hiccup, recovers after fault condition is removed |
| Over temperature | Shut down and auto-restart after normal temperature | |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short Circuit | Hiccup, recovers after fault condition is removed | |
| Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 460g±5%/PCS; 20PCS/Carton;10.5kg±5%/Carton; Carton Size: 244*223*199mm(L*W*H) | |
| Dimension | 213*54*33mm（L*W*H） | |

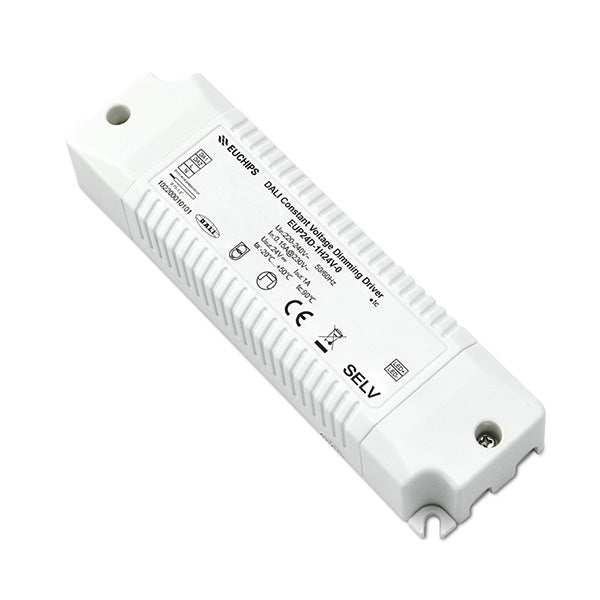

EUP24D-1H24V-0(102200011101)
| Model | EUP24D-1H24V-0 | |
| Input | Efficienc | >85%@230VAC,Full load |
| Voltage | 220-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@115VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.15A@230VAC | |
| Inrush Current | Cold start,15A(twidth=40us measured at 50% Ipeak) @230VAC | |
| Output | Current(A)/Voltage (VDC) Power(W) | 1A/24VDC/24W |
| R & N (Max) | 400mVp-p | |
| Channel | 1 | |
| Current Tolerance | ±3% | |
| Turn on delay Time | <1.5s, at230Vac | |
| Function | Dimming Type | DALI Dimming / Touch DIM |
| Dimming Range | 1%-100% Dimming to off | |
| Protections | Over Temperature | Shut down and auto-restart after normal temperature |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short Circuit | after fault removed Close output ,the output current recovers automatically | |
| Safety& EMC |
Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 150g±5%/PCS; 50PCS/Carton;11.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
