HID

$ 22.00 $ 24.00
General Information Cap-Base E40  [ E40]/E27 Operating Position UNIVERSAL  [ Any or Universal (U)] Life to 5% Failures (Nom) 6000 h Life to 20% Failures (Nom) 12000 h Life to 50% Failures (Nom) 16000 h LSF 2000 h Rated 99 % LSF 4000 h Rated 97 % LSF 6000 h...
$ 19.00 $ 21.00
General Information Cap-Base E40  [ E40]/E27 Operating Position UNIVERSAL  [ Any or Universal (U)] Life to 5% Failures (Nom) 12000 h Life to 20% Failures (Nom) 20000 h Life to 50% Failures (Nom) 28000 h System Description External Ignitor Light Technical Color Code 220  [ CCT of 2000K] Luminous Flux...
General Information Cap-Base E40  [ E40] Operating Position H15  [ Hanging +/-15D or Base Up (BU)] Life to 5% Failures (Nom) 5000 h Life to 10% Failures (Nom) 7500 h Life to 20% Failures (Nom) 11000 h Life to 50% Failures (Nom) 20000 h System Description Base-Up LSF 2000 h...
-10%
Technical data Datasheet Electrical dataNominal wattage 250 WPFC capacitor at 50 Hz 18 µF 1)Rated wattage 242.4 WConstruction current 2.2 ARated lamp efficacy (standard condition) 52 lm/W1) At rated voltage and cos ϕ ≥ 0.9Light technical dataNominal luminous flux 12600 lmRated color temperature 4000 KColor rendering group 3Rated luminous flux...
Electrical data Nominal wattage 1000 W / 2000 W Rated wattage 1000.00 W / 2000 W Lamp current 9.7 A PFC capacitor at 50 Hz 85 µF  Nominal voltage 120 V Ignition voltage 4.0 / 36 kVp  Photometrical data Rated lamp efficacy (standard condition) 90 lm/W Rated luminous flux 90000...
Electrical data Nominal wattage 70 W / 150 W Rated wattage 75.00 W Lamp current 1.0 A PFC capacitor at 50 Hz 12 µF  Nominal voltage 87 V Ignition voltage 3.6 / 36 kVp  Photometrical data Rated lamp efficacy (standard condition) 74 lm/W Rated luminous flux 5530 lm Color rendering...
HWL 160W 220-230V E27 40X1         OSRAM Electrical data Nominal wattage 160.00 W Rated wattage 175.00 W Lamp current 0.81 A Nominal voltage 220…230 V Ignition voltage 0.198 kVp Photometrical data Rated lamp efficacy (standard condition) 18 lm/W Rated luminous flux 3100 lm Color rendering index Ra 62 Color temperature 3500...
$ 57.00 $ 60.99
HCI-TF 20W/830 WDL POWERBALL GU6.5 12X1 HCI-TF 35W/930 WDL POWERBALL GU6.5 12X1 Electrical data Nominal wattage 20 W / 35 W Rated wattage 20.00 W Lamp current 0.22 A Ignition voltage 3.0 / 5.0 kVp  Photometrical data Luminous flux 1700 lm Luminous efficacy 85 lm/W Color rendering index Ra 89...
Technical Details Datasheet PHILIPS BMH 70L302-ITS METAL HALIDE BALLAST Operating and Electrical Input Frequency 50 Hz Input Voltage 220 V

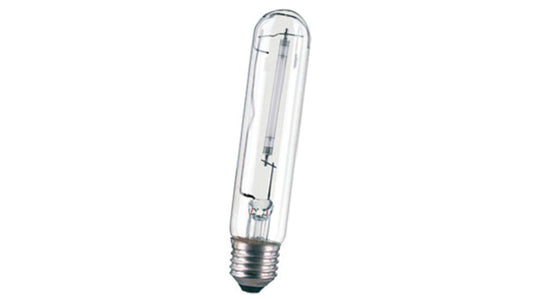

Technical Details Datasheet for E27, 2000K, 38mm Specifications Discharge SON Lamps These lamps combine high efficiency and long life with an improvement in colour appearance and rendering compared with low pressure lamps. SON lamps emit a golden-white light. The SON-T lamp, with its clear tubular outer envelope, lends itself to applications...

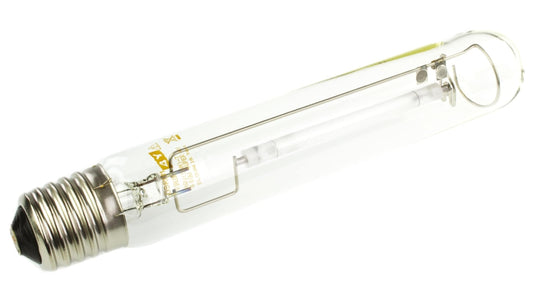

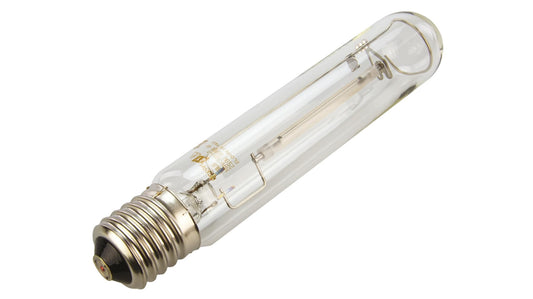

Technical Details Datasheet for E40, 2000K, 46mm Specifications Discharge SON Lamps These lamps combine high efficiency and long life with an improvement in colour appearance and rendering compared with low pressure lamps. SON lamps emit a golden-white light. The SON-T lamp, with its clear tubular outer envelope, lends itself to applications...
Technical Details Datasheet Item Number: 15332 Manufacturer: Venture Lighting Manufacturer Part No: MH1000W/U/BT37 - Ven UPC: 090444153325 Technology: Metal Halide  Watts: 1000 Lumens: 110,000 Shape: BT37 Clear Color Temp: 4000K CRI (Color Rendering Index): 65 Base Type: Mogul E39  ANSI: M47/E  Ballast Type: M47 Product Specifications - Quick Reference Lamp Wattage: 1000 Watts   Bulb Shape: BT37 ANSI Ballast Type: Fixture Type: M47/E...
Spinner
HID

HID, or high-intensity discharge light bulbs and lamps, are a family of gas-discharge arc lamps which create light by sending an electrical discharge between two electrodes and through a plasma, or ionized gas. An additional gas is generally used, and this gas serves as an easy way to classify the major types of HID lamps: Mercury, sodium, and metal halide.

These lamps are known for their high efficiency at turning electricity into light and their long rated life. HID lamps require a ballast in order to generate the initial surge of electricity needed to start them and to regulate their power during normal operation.
