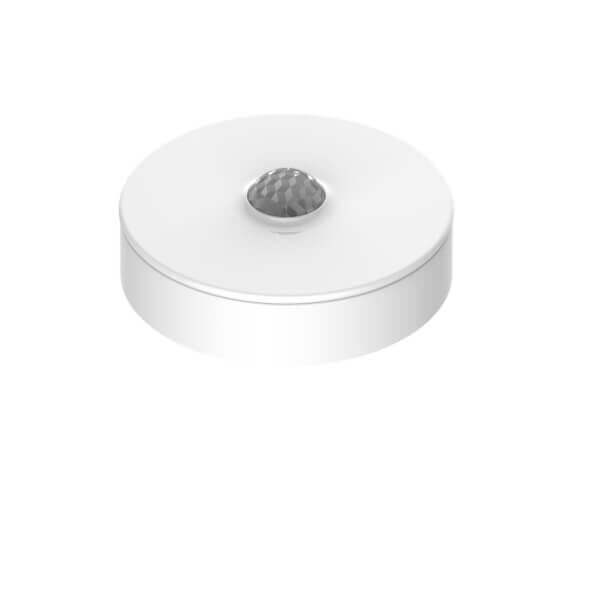

Schneider Wiser motion sensor
Schneider Wiser motion sensor
SKU SKU:CCT595011_AS
Couldn't load pickup availability
Share
Technical Details:
Description:
Wiser offers intelligent integration of home control devices and provides an enriching smart home journey thanks to Wiser by SE app. The Wiser Motion Sensor detects motion and luminance in a designated area to trigger device actions as programmed. This device reports motion detection data to the Wiser Hub. This device can be easily mounted on the walls or ceiling. It provides a 360 degree detection angle with a range of 4 m diameter when it is mounted on ceiling and a 90 to 110 degree detection angle with a range of 5 m radius when it is mounted on the wall. Its communication port protocol is Zigbee. This Wiser motion sensor is compatible with range Wiser. 3V is the rated operational voltage. It reaches IP20 degree of protection. It is 26.6 mm in width. It has a battery life of approximately 5 years. This device well satisfied the standard of EN 60669-2-5, IEC 60669-2-5. It is environment-friendly, with REACH Regulation (EC) No 1907/2006, Ro. HS compliant reached. This device is mercury free.
Specifications:
| product brand | Schneider Electric |
|---|---|
| range compatibility | Wiser ZB/IP gateway |
| range | Wiser |
| product name | Wiser motion sensor |
| product or component type | Connected movement detector |
| device application | Monitoring |
| device presentation | Complete product |
|---|---|
| colour tint | White |
| [Ue] rated operational voltage | 3 V |
| supply | Battery 2 x 1.5 V / LR03 AAA |
| battery life | 5 year(s) |
| communication port protocol | Zigbee at 2.4 GHz conforming to IEEE 802.15.4 |
| width | 26.6 mm |
| diameter | 70.8 mm |
| standards | IEC 60669-2-5 EN 60669-2-5 |
| product certifications | CE Zigbee 3.0 |
