Vossloh Schwabe Prime K L – 6" 25W Recessed LED Downlight

$ 108.00 $ 116.00

Many In Stock

Fixture

566403

F1

Add to wishlist

For datasheet click here.

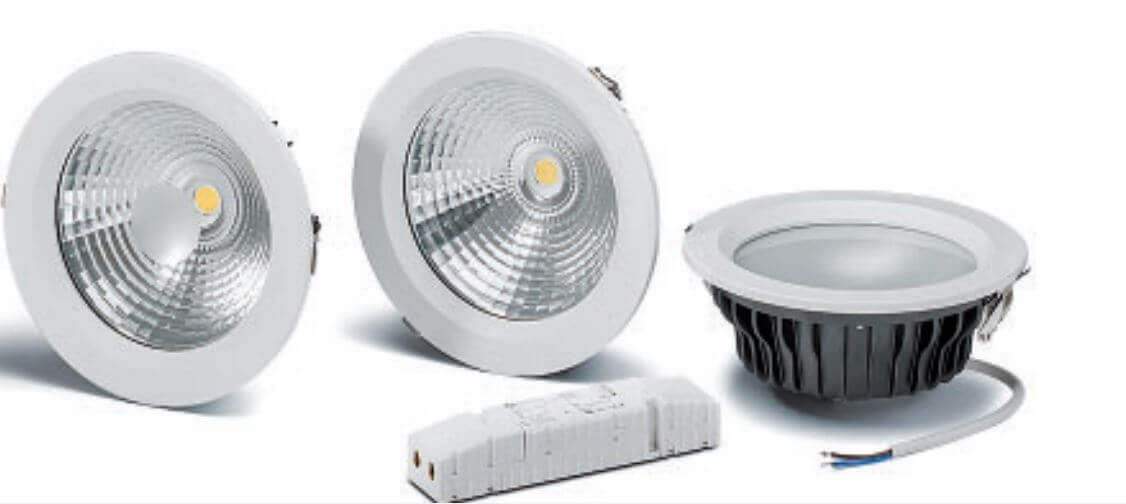

LED Downlights are one of the most important lighting fixtures in home decor or office use, as they enhances the beauty of the installed space. Vossloh Schwabe Prime K L – 6" 25W Recessed LED Downlight is an indoor LED recessed mounted downlight with aluminium reflector with enclosed separate LED driver for direct connection to mains voltage.


Mains voltage: 220–240 V ±10%, 50–60 Hz
Power factor: > 0.95%
Flicker: < 1%, Ripple: < 1%
Reflector: Ø 206 mm, aluminium
Material: aluminium diecast
Powder coating: epoxid
Flange colour: white (RAL 9003)
Front part: glass
Degree of protection: IP44
(casing: IP20, front part: IP44)
Allowed operating temperature: 0 to 30 °C
Allowed storage temperature: –30 to 60 °C
Typ. colour accuracy initially: 2 SDCM
Safety features of LED driver
Protection against transient main peaks
up to 1 kV (between L and N)
Electronic short-circuit protection
Overload and overtemperature protection
Protection against "no load" operation
Degree of protection: IP20, Protection class II, SELV
Applied Standards
• EN 60598-1:2015
• EN 60598-2-2:1989
• EN 60598-2-2:2012
• EN 62471:2008
• EN 62493:2010
• EN 55015:2013
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• EN 61547:2009
