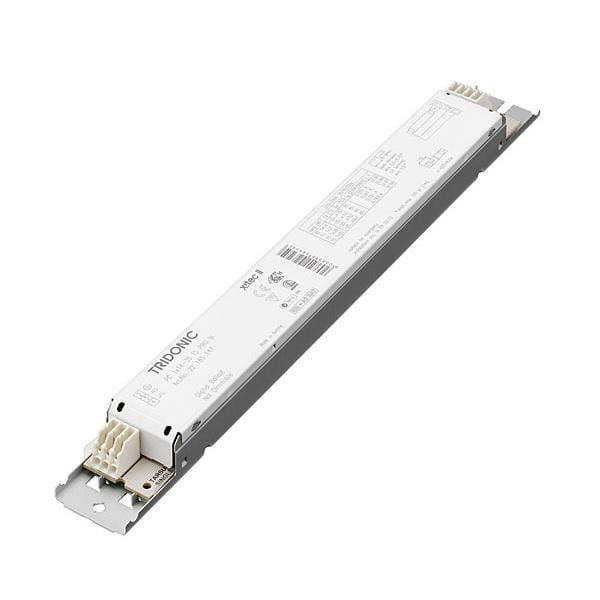

Tridonic PC T8 PRO lp/sl Fluorescent Ballast

$ 20.00 $ 26.00

Many In Stock

Ballast /Drivers

22185216

W1

Add to wishlist

*Check stock before ordering. Delivery 2-4 weeks ARO*

For datasheet click here.

Product description

  • Highest possible energy class CELMA EEI = A2 BAT
  • Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.1 % per 1,000 h) _ Large temperature range (for values see table)
  •  Intelligent Voltage Guard (overvoltage indication and Undervoltage shutdown)
  • Precise lamp operation using adjustment of lamp parameters
  • Advanced SMART-Heating for min. 50,000 starts without replacement of lamps _ Constant luminous flux irrespective of fluctuations in mains voltage
  • Designed for THD < 10 %
  • For luminaires of protection class I and protection class II
  • Automatic start after replacement of defective lamps
  •  Safety shutdown of defective lamps and at the end of lamp life (EOL 2)
  •  Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring
  • For emergency lighting systems as per EN 50172

Technical data
Mains voltage range 220 – 240 V
AC voltage range of 198 – 264 V
DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency 0 / 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Defined warm start ≤ 1.5 s
Operating frequency ≥ 39.5 kHz
Type of protection IP20

Lamp Wattage 2x18W / 1x18W / 2 x 58 W

Lamp Type T26(T8)

Type  PC 2x18 T8 PRO lp/PC 1x18 T8 PRO lp/PC 2x58 T8 PRO sl

Dimensions L x W x H  280 x 30 x 21 mm / 230 x 30 x 21 mm / 280 x 30 x 28 mm

Hole spacing D  270 mm / 220 mm / 270 mm

Lamp power 32.0 W / 16.0 W / 100.0 W

Circuit power 35.3 W / 18.3 W / 109.0 W

EEI A2 BAT

Current at 50 Hz (220 V / 240 V) : 0.159 A  / 0.143 A / 0.490 A 0.445 A

λ at 50 Hz 220 V / 240 V : 0.99 / 0.97 / 0.99 0.98

tc point max. :  80 °C / 75 °C

Ambient temperature ta : -25 ... +70 °C / -25 ... +55 °C

tc/ta for ≥ 50, 000 h : 75/65 °C / 70/50 °C
