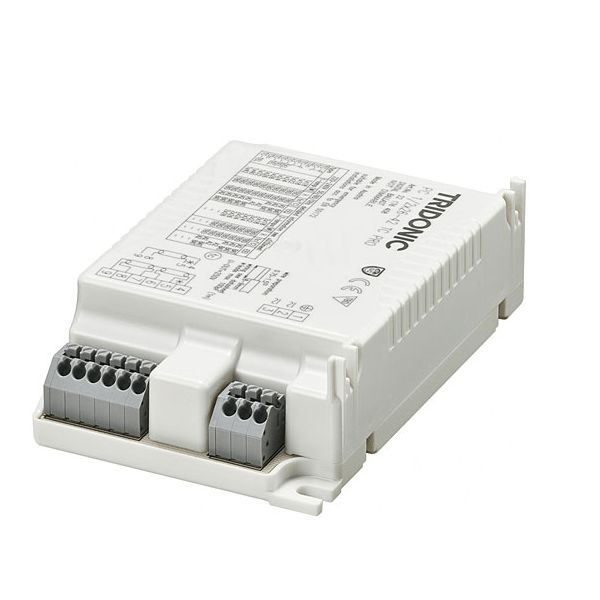

TRIDONIC PC 1/2 X 18 TC PRO Ballasts For Fluorescent Lamps

$ 29.00 $ 32.00

Many In Stock

Ballast /Drivers

22176407

W1

Add to wishlist

For datasheet click here.

Product description

_ CELMA Energy Efficiency Index A2 BAT / A2

_ Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)

_ Large temperature range (for values see table)

_ Devices can operate either 1 or 2 lamps

_ Intelligent Voltage Guard (overvoltage indication and Undervoltage shutdown)

_ Constant luminous flux irrespective of fluctuations in mains voltage

_ For luminaires of protection class I and protection class II

_ Automatic start after replacement of defective lamps

_ Safety shutdown of defective lamps and at the end of lamp life (EOL 2)

_ For emergency lighting systems as per EN 50172

_ For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711

_ Temperature protection as per EN.

_ 5-year guarantee

Technical Details:

Mains voltage range  220 – 240 V
AC voltage range 198-264 V
DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency  0 / 50 / 60 Hz
Overvoltage protection  320 V AC, 1 h
Type of protection  IP20
Lamp Wattage 1/2x18
Lamp Type TC-DEL
Type  PC 1/2x18 TC PRO
Article-No 22176407

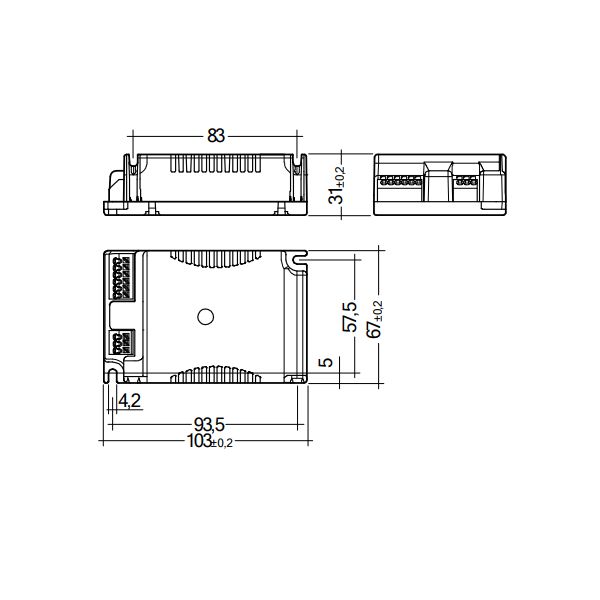

Dimensions(LxWxH) 103 x 67 x 31 mm
Lamp Power 33.6 W
Circuit Power 36.5 W
EEI A2 BAT
Current at 220 V,240V, 50 Hz 0.170A/0.156 A
λ at 220 V 240 V, 50Hz 0.98
tc point max 75 °C
Ambient temperatur e ta 3 -25 ... +65 °C
tc/ta for ≥ 50000 h 70/60 °C
