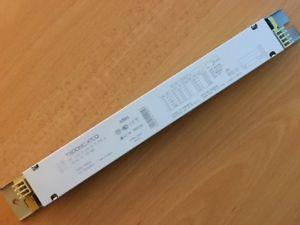

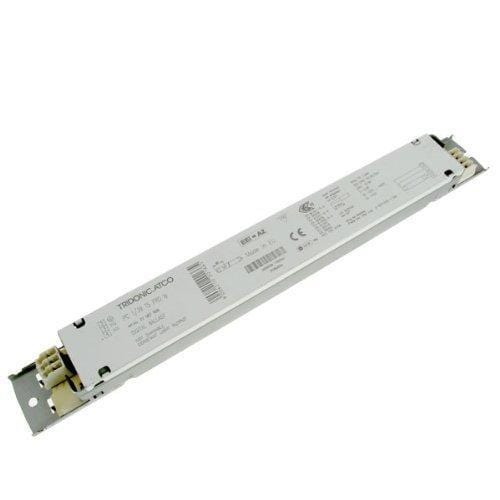

TRIDONIC PC 1/14/21/28/35 T5 Pro IP Ballast x5PCs

$ 114.28 $ 160.00

5 In Stock

Ballast /Drivers

22176096

TRIDONIC

Add to wishlist

Product description:

• Average life = 50,000 hours (at max ta. with a failure rate ≤ 0.2 % per 1,000 hours)

• Large temperature range (for values see table)

• Safety shutdown at end of life

• Automatic start after replacement of defective lamps

• For emergency lighting systems as per EN 50172

• Constant luminous flux irrespective of fluctuations in mains voltage

• For luminaires of protection class 1 and protection class 2

• Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring

• Temperature protection as per EN 61347-2-3 C5e

Tridonic PC 1/14/21/28/35 T5 Pro IP
Technical Details:
AC voltage range 198 – 264 V
DC voltage range 176 – 280 V (Lamp start ≥ 198 V DC)
Overvoltage protection 320 V AC, 1 h
Defined warm start ≤ 1.5 s
Operating frequency ≥ 40 kHz
Type of protection IP20
Lamp Wattage 1x14
Lamp Type T5
Type  PC 1/14-21-28-35 T5 PRO lp
Article No 22176096
Length 280 mm
Hole spacing D 270 mm
Lamp Power 14 W
Circuit Power 16.0 W
EEI A2 BAT
Current at  50 Hz (220V/240 V) 0.07 A / 0.07 A
λ at  50Hz (220 V/ 240 V) 0.98 / 0.96
tc point max 75 °C
Ambient temperatur  ta  -25 ... 55 °C
weight per pc 0.020 kg
