Meanwell (SKA15A) Single-output DC-DC regulated converter

$ 35.38 $ 38.00

Out of stock

Ballast /Drivers

SKA15A-05

S7

Add to wishlist

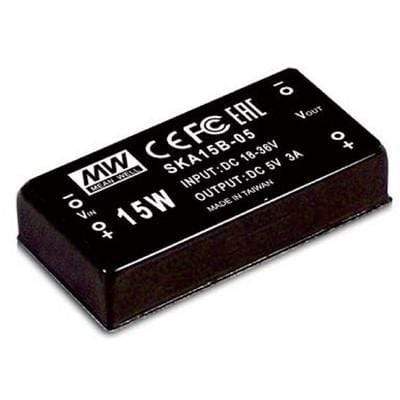

Mean Well SKA15A-05 - 9.9~15W DC-DC Regulated Single Output Converter

Specification Sheet Click Here

 SKA15A-05

  • Rated Power: 9.9~15W
  • Model: SKA15A-05

Features:

  • 2:1 wide input range
  • 4:1 wide input range(option)
  • 1000VDC I/O isolation
  • 3000VDC I/O isolation(option)
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / CE
  • 2 years warranty



Specifications:

ORDER NO. SKA15A-033 SKA15B-033 SKA15C-033 SKA15A-05 SKA15B-05 SKA15C-05
OUTPUT DC VOLTAGE 3.3V 5V
CURRENT RANGE 300 ~ 3000mA 300 ~ 3000mA
RATED POWER 9.9W 15W
RIPPLE & NOISE  50mVp-p 50mVp-p
LINE REGULATION 0.20%
LOAD REGULATION 0.50%
VOLTAGE ACCURACY 2.00%
SWITCHING FREQUENCY 150KHz min.
INPUT VOLTAGE RANGE A: 9 ~ 18VDC B: 18 ~ 36VDC C: 36 ~ 72VDC
EFFICIENCY (Typ.) 76% 76% 76% 78% 78% 80%
DC CURRENT (Typ. Full load A: 1700mA B: 800mA C: 400mA
No load A: 20mA B: 30mA C: 15mA
FILTER Pi network
PROTECTION Fuse recommended
PROTECTION OVERLOAD 110% ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25 ~ +71oC (Refer to output load derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03% / oC(0 ~ 50oC )
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC WITHSTAND VOLTAGE I/P-O/P:1KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
EMICONDUCTION&RADIATION Compliance to EN55022 Class B, FCC part 15 Class B
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A
OTHERS MTBF 300Khrs min. MIL-HDBK-217F(25 )
DIMENSION 50.8*25.4*11.27 mm .or 2"*1"*0.44" inch (L*W*H)
WEIGHT 32g
ORDER NO. SKA15A-12 SKA15B-12 SKA15A-15 SKA15B-15 SKA15C-15
OUTPUT DC VOLTAGE 12V 15V
CURRENT RANGE 125 ~ 1250mA 100 ~ 1000mA
RATED POWER 15W
RIPPLE & NOISE  60mVp-p 60mVp-p
LINE REGULATION 0.20%
LOAD REGULATION 0.50%
VOLTAGE ACCURACY 2.00%
SWITCHING FREQUENCY 150KHz min.
INPUT VOLTAGE RANGE A: 9 ~ 18VDC B: 18 ~ 36VDC C: 36 ~ 72VDC
EFFICIENCY (Typ.) 82% 80% 82% 80% 82%
DC CURRENT (Typ. Full load A: 1700mA B: 800mA C: 400mA
No load A: 20mA B: 30mA C: 15mA
FILTER Pi network
PROTECTION Fuse recommended
PROTECTION OVERLOAD 110% ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25 ~ +71 oC(Refer to output load derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03% /oC (0 ~ 50 oC)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC WITHSTAND VOLTAGE I/P-O/P:1KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
EMICONDUCTION&RADIATION Compliance to EN55022 Class B, FCC part 15 Class B
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A
OTHERS MTBF 300Khrs min. MIL-HDBK-217F(25 )
DIMENSION 50.8*25.4*11.27 mm .or 2"*1"*0.44" inch (L*W*H)
WEIGHT 32g
