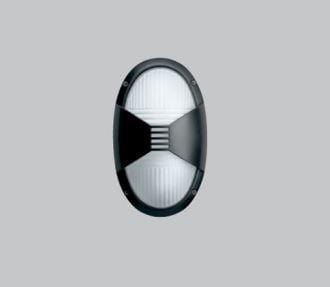

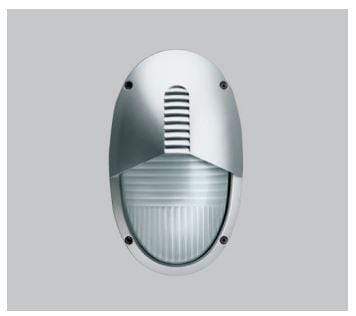

VEDO OVAL

MODULES LED

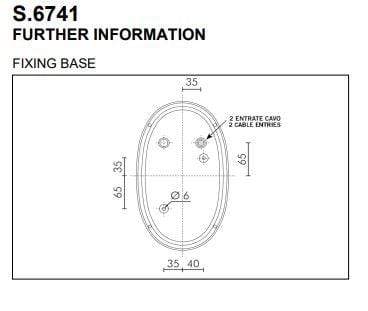

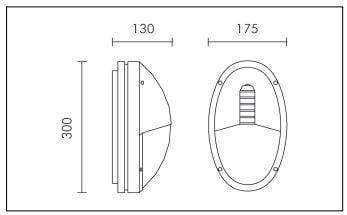

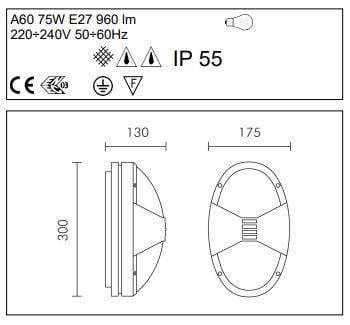

S6741(Small)  6.5W LED 300mm
Weight 1.97 Kg Glow wire test 850°C
LOR 37%

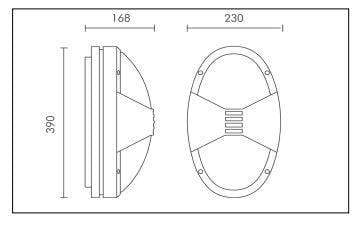

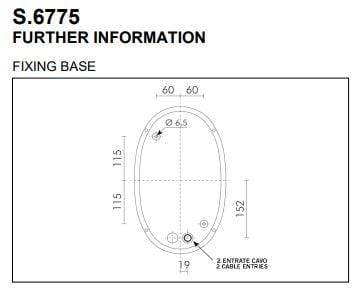

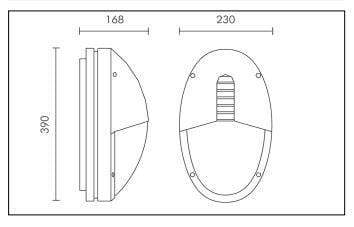

S6775(Large) 8.5W LED 390mm
Weight 3.74 Kg Glow wire test 960°C
LOR 37%



S6751(Small) 6.5W LED 300mm
Weight 1.99 Kg Glow wire test 850°C
LOR 28%

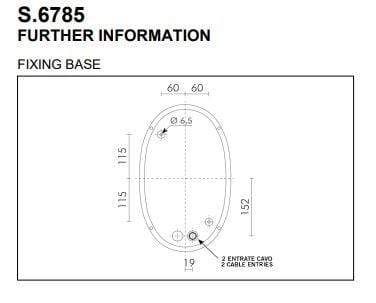

S6785(Large) 8.5W LED 390mm
Weight 3.81 Kg Glow wire test 960°C
LOR 37%



-PRODUCT TYPE

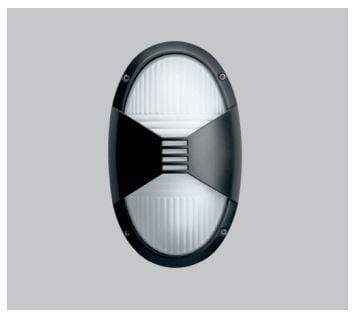

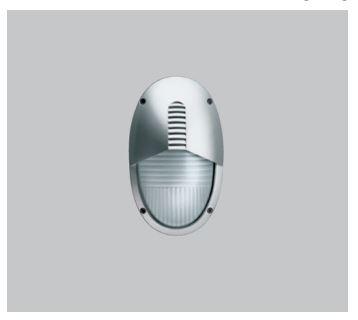

Wall mounted luminaire .

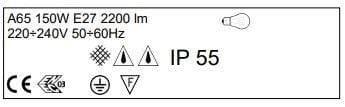

IP rating IP 55



-MATERIAL CHARACTERISTICS

Aluminium die cast housing in EN AB-47100 with high resistance against corrosion. Stone wash surface treatment prior to painting process.

A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion.

Dutral gaskets. Painting Process : 3 Step Process

1) Surface treatment with BONDERITE . A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating .

2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent bonding characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content.

3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions.

Improved protection for Marine applications.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Reflector in 99.98% pure aluminium .

Sand blasted glass diffuser (Vandalproof opal polycarbonate diffuser available on request).

Lamp fixed position.

LOR 37%

-WIRING

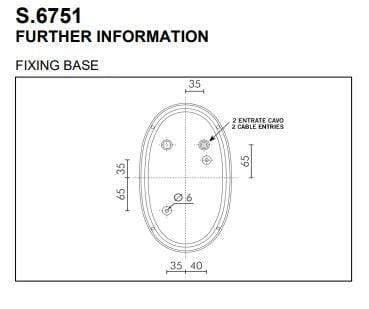

Supply double cable entry.Isolation CLASS I .
Available colours WHITE (cod.01), BLACK (cod.09)
ALUMINIUM GREY (cod.14). Weight 1.97 Kg
Glow wire test 850°C Lamp not included.
