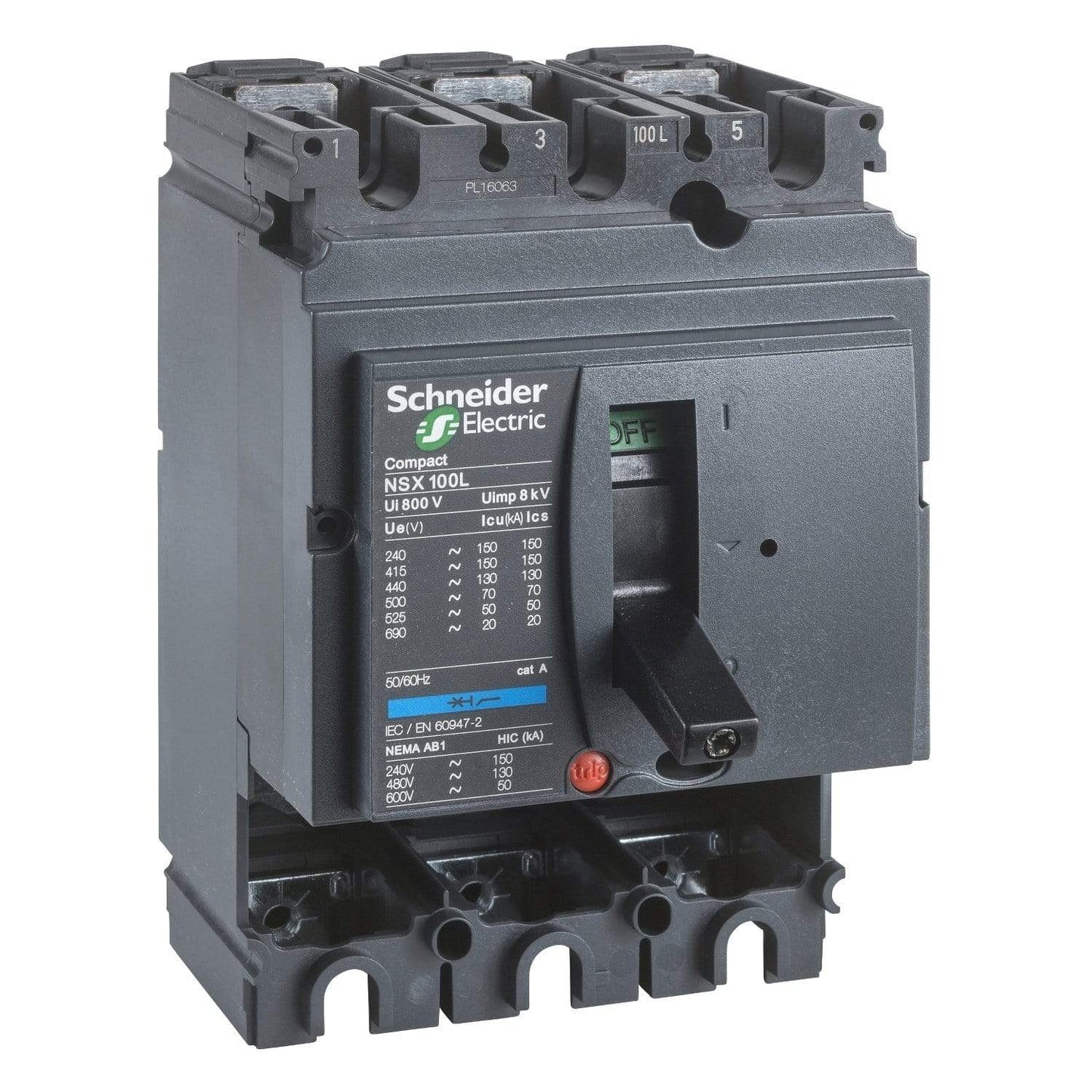

SCHNEIDER NSX100L Basic Frame Circuit Breaker
SCHNEIDER NSX100L Basic Frame Circuit Breaker
SKU SKU:NSX100L
Regular price
$ 546.00 SGD
Regular price
$ 589.00 SGD
Sale price
$ 546.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
| range |
Compact
|
|
|---|---|---|
| range of product |
NSX100...250
|
|
| product or component type |
Basic frame
|
|
| device short name |
Compact NSX100L
|
|
| device application |
Distribution
|
|
| circuit breaker name |
Compact NSX100L
|
|
| poles description |
3P
|
|
| network type |
AC
|
|
| network frequency |
50/60 Hz
|
|
| [In] rated current |
100 A at 40 °C
|
|
| [Ui] rated insulation voltage |
800 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Uimp] rated impulse withstand voltage |
8 kV conforming to IEC 60947-2
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| breaking capacity code |
L
|
|
| breaking capacity |
130 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
150 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 150 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ics] rated service breaking capacity |
130 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
150 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 150 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| suitability for isolation |
Yes conforming to EN 60947-2
Yes conforming to IEC 60947-2 |
|
| utilisation category |
Category A
|
|
| pollution degree |
3 conforming to IEC 60947-1
|
| control type |
Toggle
|
|
|---|---|---|
| mounting mode |
Fixed
|
|
| mounting support |
Backplate
|
|
| upside connection |
Front
|
|
| downside connection |
Front
|
|
| protection type |
Without protection
|
|
| mechanical durability |
50000 cycles conforming to IEC 60947-2
|
|
| electrical durability |
10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2
20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
|
| connection pitch |
35 mm
|
|
| height |
161 mm
|
|
| width |
105 mm
|
|
| depth |
86 mm
|
| standards |
IEC 60947-2
EN 60947-2 UL 508 |
|
|---|---|---|
| product certifications |
CSA
UL |
|
| IP degree of protection |
IP40 conforming to IEC 60529
|
|
| IK degree of protection |
IK07 conforming to IEC 62262
|
|
| ambient air temperature for operation |
-35…70 °C
|
|
| ambient air temperature for storage |
-55…85 °C
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
