Schneider 13A 250V TwinGang Switched Socket

$ 8.50

Many In Stock

Electrical Supplies

KB25_WE

S6

Add to wishlist

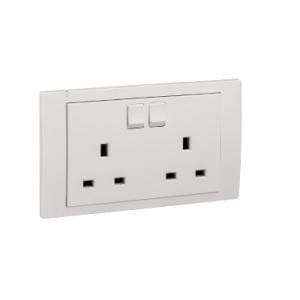

13A 250V TwinGang Switched Socket,White (KB25_WE)

13A 250V TwinGang Switched Socket,White (KB25_WE_G2)

13A 250V TwinGang Switched Socket,Aluminium Silver (KB25_AS)

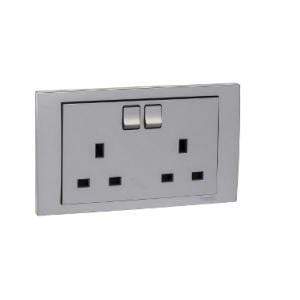

13A 250V 2 Gang Switched socket,Aluminium silver (KB25_AS_G2)

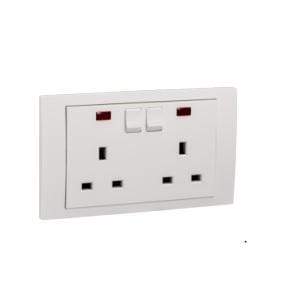

13A 250V Twin Gang Switched Socket with Neon - white (KB25N_WE)

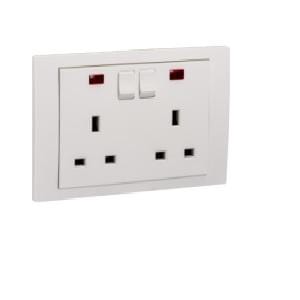

13A 250V Twin Gang Switched Socket with Neon white(KB25N_WE_G2)

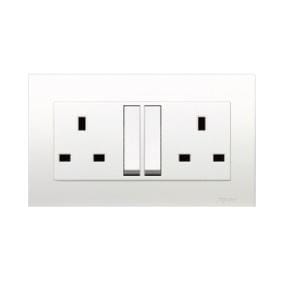

13A 250V Twin Gang Large Dolly Switched Socket (KB25L)

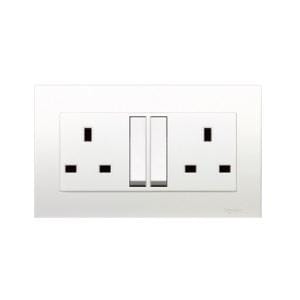

13A 250V Twin Gang Large Dolly Switched Socket white (KB25L_WE)

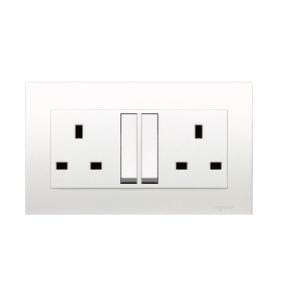

13A 250V Twin Gang Large Dolly Switched Socket white (KB25L_WE_G2)

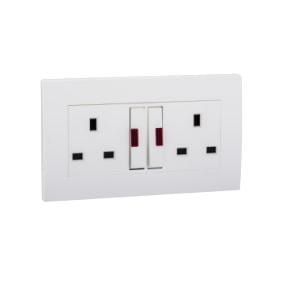

Twin Gang Large Dolly Switched Socket with Neon (KB25LN_WE)

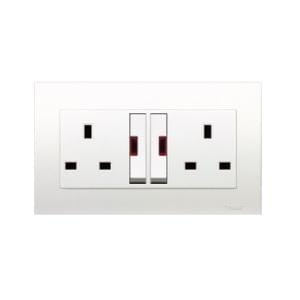

13A 250V Twin Gang Double Pole Large Dolly Switched Socket with Neon (KB25LDN)

Main

range
Vivace
product or component type
Socket-outlet with switch
device short name
KB25
device application
Power supply
Control
device presentation
Complete mechanism



Complementary

outlet poles configuration
2P + E
number of gangs
2 gangs
Colour tint
White
material
Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
projecting depth
8 mm
device mounting
Flush
mounting support
Wall mounted
fixing mode
By screw M3.5
fixing center
120.6 mm
embedding depth
35 mm
rated current
13 A at 250 V AC, resistive
network frequency
50 Hz
contacts material
Brass and phosphor bronze
connections - terminals
Pillar terminal
terminal identifier
Earth
L
N
tightening torque
0.4 N.m
clamping connection capacity
3 x 2.5 mm²
2 x 4 mm²
width
147 mm
height
87 mm



Environment

standards
MS 589
BS 1362-2
SS 145
ambient air temperature for operation
-5…40 °C
relative humidity
0…95 %
environmental characteristic
Indoor use



Offer Sustainability

Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
