USAGE AREA

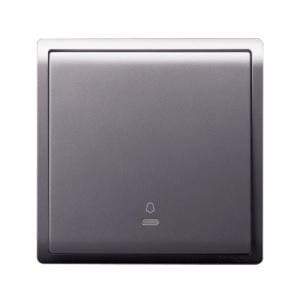

Schneider 10A 250V 1 Gang Bell Press Switch with Fluorescent Locator

$ 13.70

Many In Stock

Electrical Supplies

E8231BPL1_WE

S6

Add to wishlist

10A 250V 1 Gang Bell Press Switch with Fluorescent Locator, White (E8231BPL1_WE)

10A 250V - 1 gang bell press switch with fluorescent locator (AS) (E8231BPL1_AS)

10A 250V - 1 gang bell press switch with fluorescent locator (MB) (E8231BPL1_MB)

10A 250V - 1 gang bell press switch with fluorescent locator (WG) (E8231BPL1_WG)

10A 250V 1 Gang Bell Press Switch with Fluorescent Locator, Lavendar Silver(E8231BPL1_LS)

Main

range
Pieno
product or component type
Switch
switch application
Bell
load type
Resistive
cover frame colour tint
White
Complementary
device mounting
Flush
Surface
wiring device mounting
Flush
Surface
switch function
Momentary
rated current
10 A at 250 V AC 50 Hz
local signalling
Fluorescent (white)
number of gangs
1 gang
material
Polycarbonate: surround
Polycarbonate: grid plate
connections - terminals
Pillar terminals
clamping connection capacity
2 x 1.5 mm² for stranded cable(s)
2 x 2.5 mm² for solid cable(s)
embedding depth
23 mm
width
87 mm
height
87 mm
depth
23 mm
Environment
ambient air temperature for operation
-5…40 °C
relative humidity
0…95 %
standards
MS IEC 60669-1
BS EN 60669-1
GB 16915.1
IEC 60669-1
SS 227-1
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
Contractual warranty
Warranty
18 months
