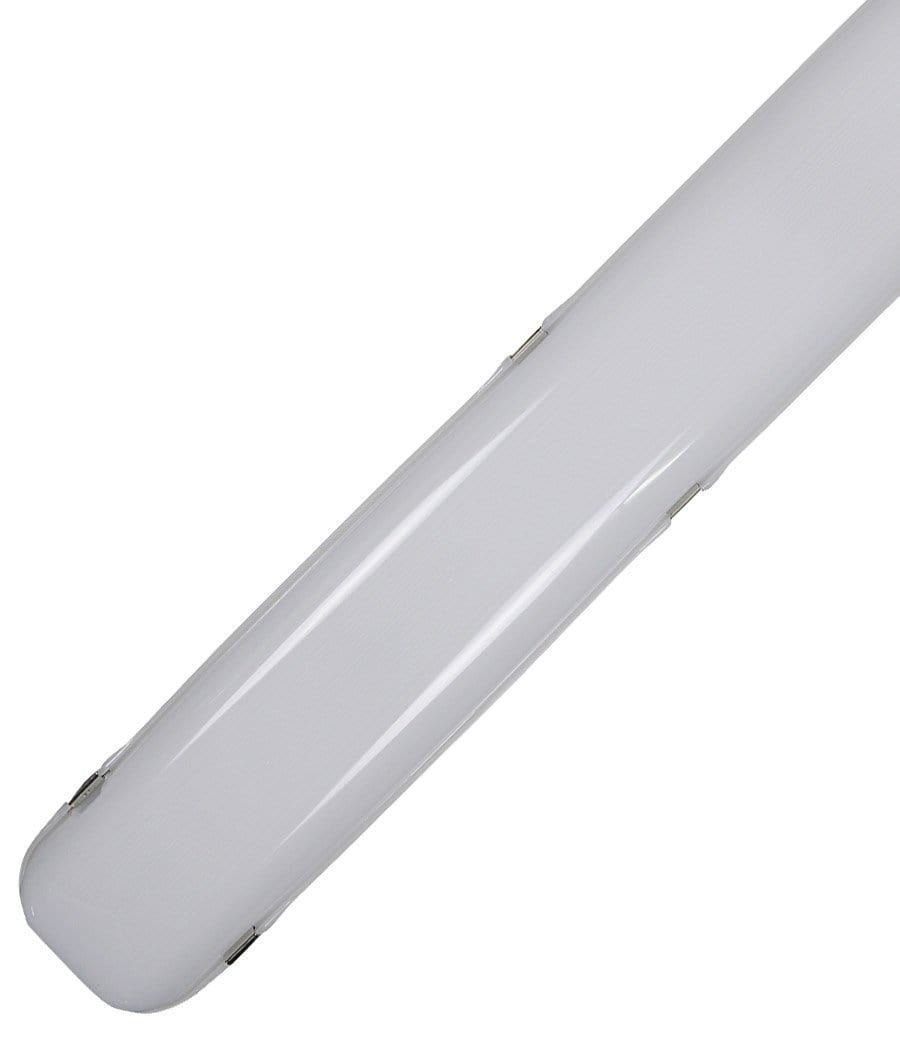

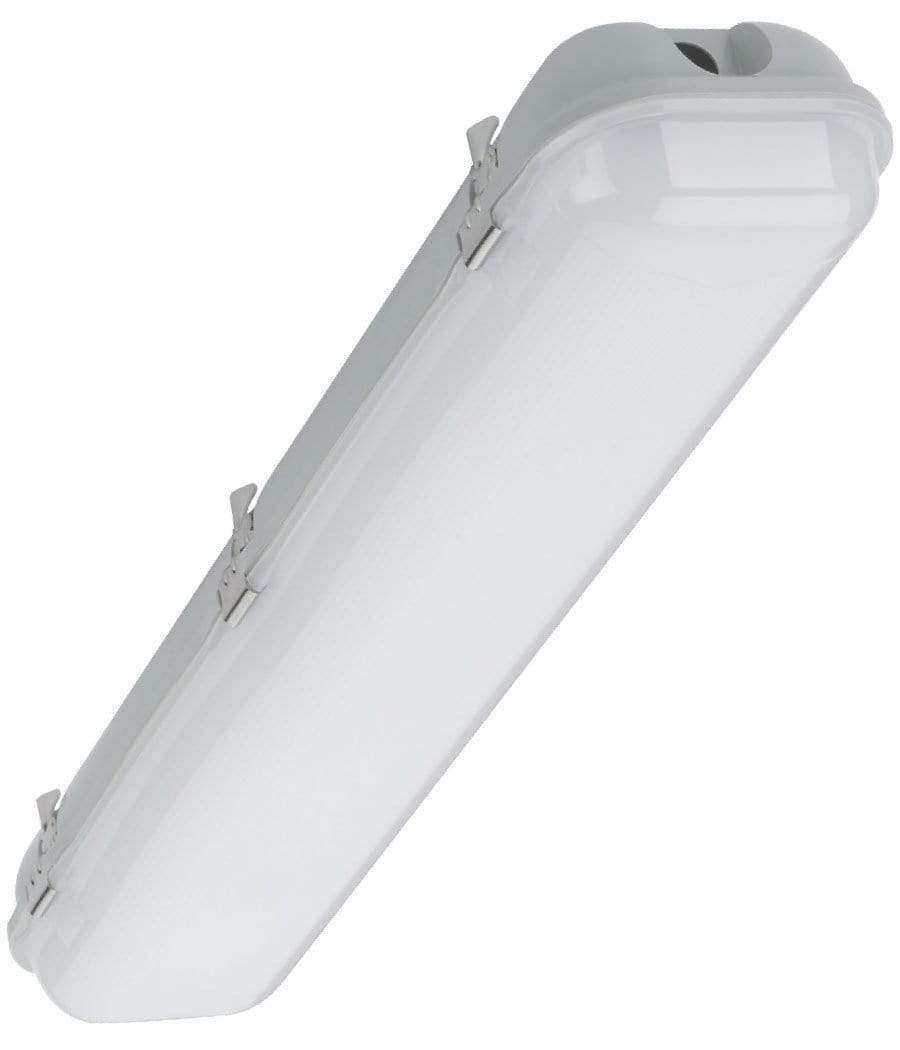

PHILIPS SmartBright Wide Waterproof Batten (WT008C)

PHILIPS SmartBright Wide Waterproof Batten (WT008C)

SKU SKU:911401853297

Regular price $ 99.00 SGD
Regular price $ 106.00 SGD Sale price $ 99.00 SGD
Sale Sold out
Shipping calculated at checkout.

Out of stock

For the datasheet click here.

Features and benefits

• Wider base for direct replacement of T8 battens

• Multiple knock-out options, large terminal, and through wiring possible

• Available in emergency option, AS2293 compliant

• Ideal for indoor car parks, stairwells, and industrial application

Product data
Model  SmartBright Wide Waterproof Batten (WT008C)
Type  LED40
 Equivalent of  2x36W
Power  40W
System lumen  4100lm
Type  Fixed output (PSU)
Diffuser  Frosted diffuser
Power factor  ≥0.9
Beam Angle  110° - 130°
CCT  6500K(CW)
CRI  >80
SDCM  ≤6
Operating Temperature  25˚C (-20˚C < ta < 50˚C)
Lifetime (L70)  50,000 hours
IP/ IK rating  IP65/ IK08
Electrical Class  Class I
Input Voltage  220V-240V, 50/60Hz
Mounting Type  Surface mount with brackets
Surge Protection  LED40/ LED40 EM: Line to Line - 1KV, Line to Ground - 2KV
Housing color  Light grey (RAL7035)
Material  Frosted cover: PC Housing: PC
Emergency rating (EM)  AS2293 Compliant Duration: >3hours Wattage: 4-5W @ 400-500lm Classification: C0 D80/ C90 D50
Application  Warehouses, back of house areas, indoor car parks, factories
Width (mm)   140
Length (mm) 1274
Height (mm) 1274
Weight (kg) 2.15
