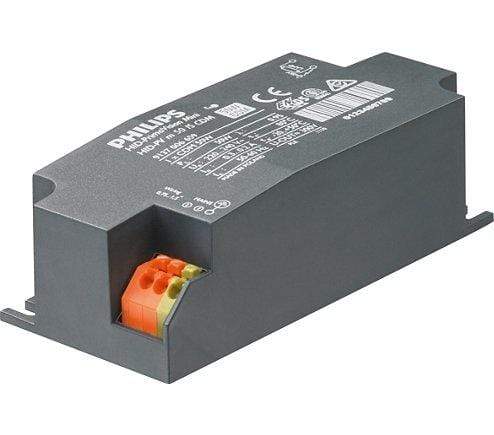

PHILIPS HID-EL Indoor Mini 20-35W x12PCs

$ 993.25 $ 1,062.85

Many In Stock

Ballast /Drivers

913700696066

PHILIPS

Add to wishlist
General Information
Application Code
HPF
Type Version
mk2
Lamp Type
CDM
Number of Lamps
1 piece/unit
Suitable For Outdoor Use
No
Number of Products on MCB (16A Type B) (Nom)
32
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Minimum Mains Voltage Operation (Min)
198 V
Power Factor 100% Load (Nom)
0.95
Ignition Voltage (Max)
4.5 kV
Ignition Voltage (Min)
3.3 kV
Ignition Switch-Off Time (Nom)
21 min
Mains Voltage Performance (AC)
198-254V
Mains Voltage Safety (AC)
180-264V
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.25 ms
Constant Wattage Deviation
-3%/+3%
Power Losses (Nom)
3.5 W
Inrush Current Peak (Max)
15 A
Wiring
Cable Capacity Output Wires Mutual (Nom)
50 pF
Cable Length From Device to Lamp
0.5 m
Wire Striplength
8.5-9.5 mm
Ballast Contact Wire Cross Section
0.75-1.50 mm²
Connector Type
Insert
System characteristics
Rated Ballast-Lamp Power
20 W / 35 W
Temperature
T-Ambient (Max)
55 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Nom)
80 °C
T-Case Maximum (Max)
80 °C
Mechanical and Housing
Housing
/S
Approval and Application
Active Temperature Protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2 / 2009
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Approval Marks

CE marking

ENEC certificate

VDE certificate

Hum And Noise Level
< 25 dB(A)
