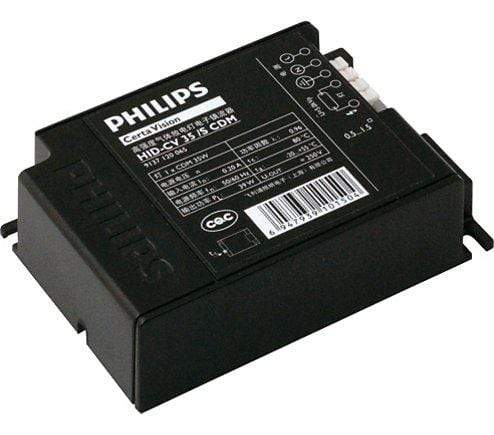

PHILIPS HID-EL Indoor CV CDM 220-240

Product Code 913712006580

AvailabilityIn stock

$ 32.00 $ 29.00
Unit price
per
Shipping calculated at checkout.
Hurry! only 1 left in stock!
Order in The Next 3 Hours 0 Minutes
We will deliver on Thursday 06/17/2021
Request For Quote
General Information
Lamp Type
CDM
Number of Lamps
1 piece/unit
Number of Products on MCB (16A Type B) (Nom)
24
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Minimum Mains Voltage Operation (Min)
198 V
Power Factor 100% Load (Nom)
0.95
Ignition Voltage (Max)
5.0 kV
Ignition Voltage (Min)
3.0 kV
Mains Voltage Performance (AC)
198-264V
Mains Voltage Safety (AC)
180-264V
Output Peak Voltage (Max)
5000 V
Inrush Current Width
0.28 ms
Constant Wattage Deviation
-5%/+5%
Power Losses (Nom)
6 W
Inrush Current Peak (Nom)
22.4 A
Wiring
Cable Capacity Output Wires Mutual (Nom)
120 pF
Cable Length From Device to Lamp
2 m
Connector Type
Push
System characteristics
Rated Ballast-Lamp Power
35 W / 50 W / 70 W
Temperature
T-Ambient (Max)
55 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Nom)
80 °C
T-Case Maximum (Max)
80 °C
Mechanical and Housing
Housing
/S
Approval and Application
EMI 30 MHz ... 1000 MHz
CISPR15 Edition 7.1
Approval Marks
CE marking
