PHILIPS BRP391 LED72/NW 60W 220-240V DM Street Light
$ 515.00
$ 552.00
1 In Stock
Fixture
911401816098
E5
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
Initial Performance (IEC Compliant)
Over Time Performance (IEC Compliant)
Application Conditions
| Lamp family code |
-
|
| Light source colour |
740 neutral white
|
| Light source replaceable |
No
|
| Number of gear units |
1 unit
|
| Driver/power unit/transformer |
PSU [ Power supply unit]
|
| Driver included |
Yes
|
| Optical cover/lens type |
No [ -]
|
| Control interface |
-
|
| Connection |
No [ -]
|
| Cable |
-
|
| Protection class IEC |
Safety class I (I)
|
| Flammability mark |
NO [ -]
|
| CE mark |
CE mark
|
| ENEC mark |
-
|
| Warranty period |
3 years
|
| Outdoor optic type |
-
|
| Constant light output |
No
|
| Number of products on MCB |
11
|
| LED engine type |
LED
|
| Upward light output ratio |
0
|
| Standard tilt angle post-top |
-
|
| Standard tilt angle side entry |
0°
|
| Input voltage |
220 to 240 V
|
| Input frequency |
50 to 60 Hz
|
| Inrush current |
46 A
|
| Inrush time |
0.44 ms
|
| Power factor (min.) |
0.9
|
| Dimmable |
No
|
| Housing material |
Aluminum die-cast
|
| Optic material |
Polycarbonate
|
| Optical cover/lens material |
Polycarbonate
|
| Fixation material |
Aluminum
|

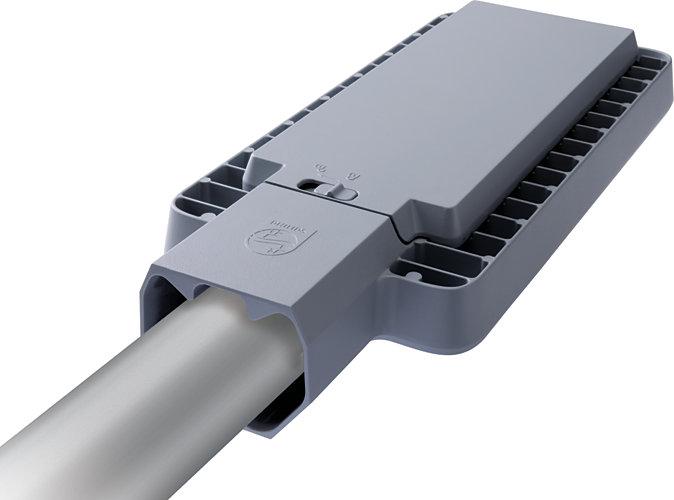

| Mounting device |
42/60S [ Side-entry for diameter 42-60 mm]
|
| Optical cover/lens shape |
Ball, globular
|
| Optical cover/lens finish |
-
|

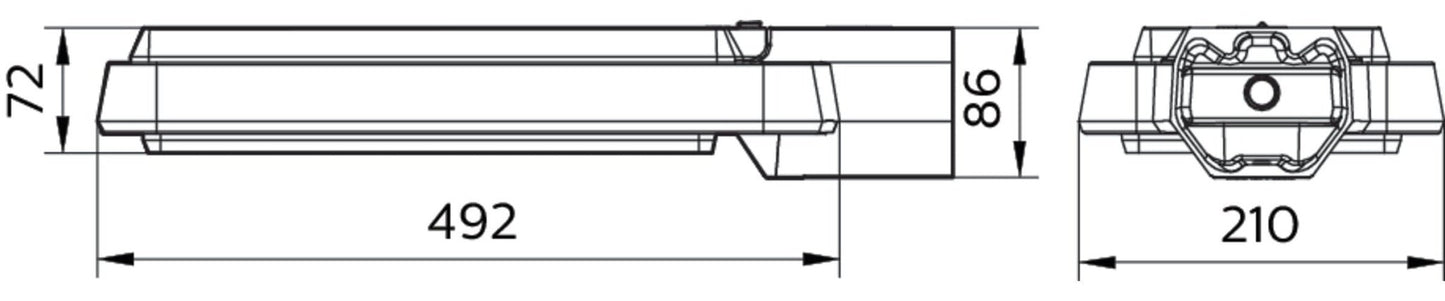

| Overall length |
492 mm
|
| Overall width |
210 mm
|
| Overall height |
86 mm
|
| Effective projected area |
0.1 m²
|
| Ingress protection code |
IP66 [ Dust penetration-protected, jet-proof]
|
| Mech. impact protection code |
IK08 [ 5 J vandal-protected]
|
| Initial luminous flux |
7200 lm
|
| Luminous flux tolerance |
+/-5%
|
| Initial LED luminaire efficacy |
120 lm/W
|
| Init. Corr. colour temperature |
4000 K
|
| Init. colour rendering index |
>70
|
| Initial chromaticity |
(0.433, 0.401) SDCM>5
|
| Initial input power |
60 W
|
| Power consumption tolerance |
+/-5%
|
| Median useful life L70B50 |
100000 h
|
| Lumen maintenance at useful life of 100,000 h, at 25 °C |
NA
|
| Ambient temperature range |
-30 to +50 °C
|
| Maximum dimming level |
Not applicable
|
