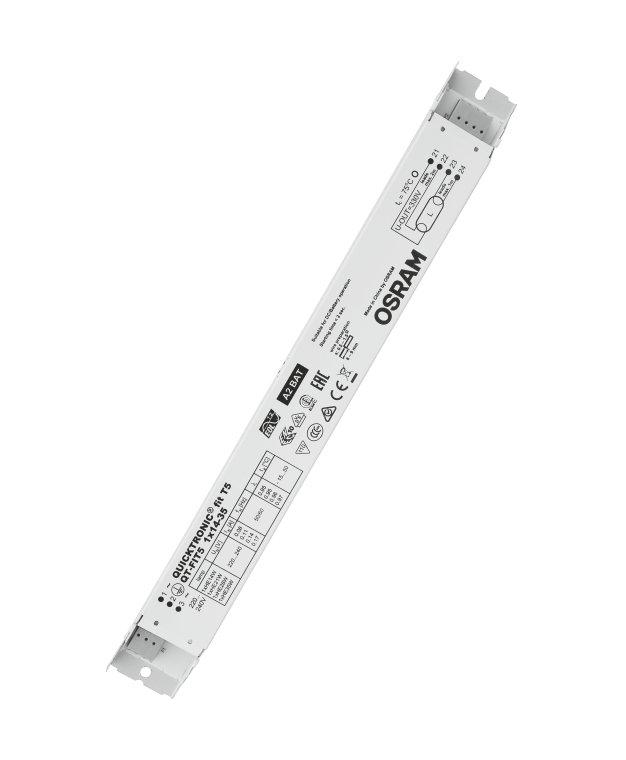

Osram Quicktronic Fit 5 T5 1X14W-35Watt Electronic Ballast

Osram Quicktronic Fit 5 T5 1X14W-35Watt Electronic Ballast

SKU SKU:4008321971234

Regular price $ 36.00 SGD
Regular price $ 39.00 SGD Sale price $ 36.00 SGD
Sale Sold out
Shipping calculated at checkout.

Product family features
  • Supply voltage: 220…240 V
  • Line voltage: 198…264 V
  • Line frequency: 50 Hz | 60 Hz
  • Lamp start with optimum filament preheating
  • Energy Efficiency Index EEI: A2
  • Automatic shutdown of defective lamps and at end of life (EoL T.2)
  • Lamp operation: to EN 60929
  • Safety: to EN 61347-2-3

Product family benefits

  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • VDE/VDE EMC certified system
  • Very high energy efficiency due to cut-off technology

Electrical data

  • Input voltage AC 198…264 V
  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz
  • Input voltage DC 185…264 V 1)
  • Operating frequency 40…50 kHz
  • Max. ECG no. on circuit breaker 10 A (B) 17 2)
  • Max. ECG no. on circuit breaker 16 A (B) 28 2)
  • Inrush current 24 A
  • 1) Minimum voltage for lamp ignition: 198 V, 185…198 V for maximum 1 h 2) Type B

Light technical data

  • Starting time 2.0 s

Dimensions & weight

  • Length 280.0 mm
  • Width 30.0 mm
  • Height 21.0 mm
  • Mounting hole spacing, length 270.0 mm
  • Product weight 160.00 g
  • Cable cross-section, output side 0.5…1.5 mm² 1)
  • Cable cross-section, input side 0.5…1.5 mm² 1)
  • 1) Solid leads

Temperatures & operating conditions

  • Ambient temperature range        -15…+50 °C

Permitted rel. humidity during operation 5…85 % 1)
1) Maximum 56 days/year at 85 %
Lifespan
ECG lifetime 50000 h
Additional product data
Suitable for lamp power (1 lamp) 14…35 W
Capabilities
Suitable for fixtures with prot. class   I
End of lamp life safety shutdown   EOL T.2
Max. cable length to lamp/LED module  2.0 m / 1.0 m
Dimmable  No
Certificates & standards
Approval marks – approval VDE / ENEC 10 / VDE-EMC
EEI – Energy Label A2
Standards    Acc. to EN 61547/IEC 61547/Acc. to EN 61347-2-
3/IEC 61347-2-3/Acc. to EN 61000-3-2/IEC 61000-3-
2/Acc. to EN 55015:2006 + A1:2007 + A2:2009
Protection class      I
Type of protection    IP20
Logistical data
Commodity code 850410809000
