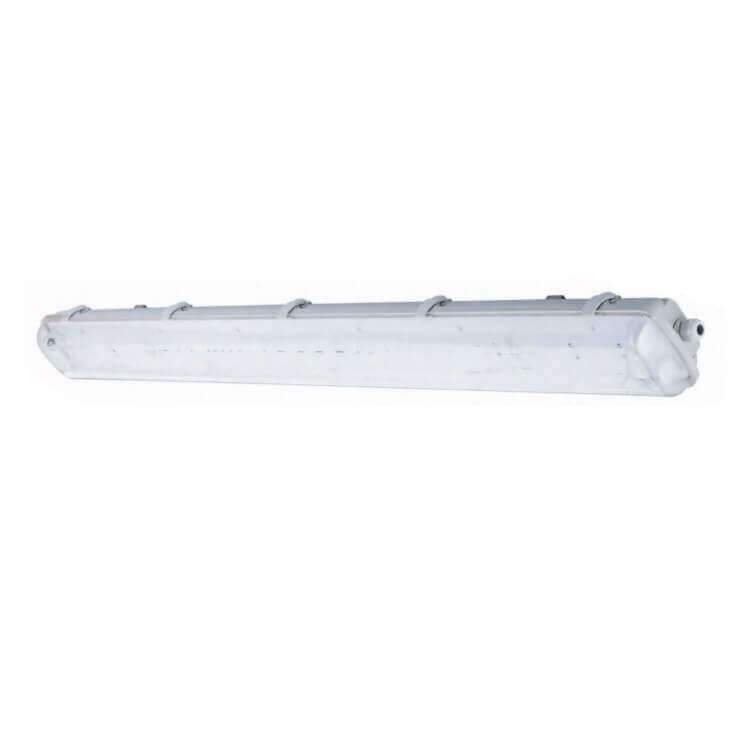

Osram Olux Weatherproof Fitting With LED Tube

$ 36.00 $ 67.00

Many In Stock

Fixture

4052899027602

J5

Add to wishlist

*All prices are including Led T8 Tubes.*

For datasheet click here.

OLUX WATER-PROOF is functional water-, dust- and impact-proof luminaire designed with the concept of flexibility, sustainability, and maintainability. The addition of anti-UV ingredients into the excellent impact-resist polycarbonate material makes it ideal for both outdoor (roofed) and indoor lightings. It can be surface mounted (ceiling-mount and wall-mount) as well as suspension mounted. The excellent thermal management ensures reasonable ECG temperature for optimal operation.

BENEFITS

  • Available Options

Single and twin T5 lamps of 14W, 28W, 35W. Single and twin T8 lamps of 18W, 36W, 58W.

  • Full protection

IP65 ensures jet-proof features and IK08 promises good resistance to impact. Vibration test and 650℃ glow-wire test passed.

  • Anti-UV

Poly-carbonate cover with anti-UV additives, long-lasting for outdoor applications.

  • Optimum optical design

Excellent light distribution, light output, and performance.

  • Environmental friendly

With high-efficiency Electronic Control Gear. It contains no hazardous materials.

APPLICATIONS

  • Roofed outdoor lighting

Station, garden, walkway, overpass.

  • Under-ground lighting

Underpass, pedestrian/bicycle tunnel, car parks.

  • Industrial lighting

For various dusty/wet/dirty environments can withstand normal corrosion.



OLUX Water-proof

1X14W

2X14W

1X28W

2X28W

1X35W

2X35W

1X18W

2X18W

1X36W

2X36W

1X58W

2X58W



Light source*

Type

T5 Fluorescent Lamp, G5

T8 Fluorescent Lamp, G13

CCT

3000K, 4000K, 6500K

CRI

>80





Electrical

Rated power

14W

28W

28W

56W

35W

70W

18W

36W

36W

72W

58W

116W

Input

220-240VAC 50/60Hz

Power factor

0.98

ESD

Contact ±4kV and Air ±8kV









Mechanical

Mounting

Surface-mount and suspension-mount

Maintenance

both ECG & lamp can be replaced independently

Ambient

-10 ºC … +50ºC (Ta in free air)

IP/IK

IP65/IK08

Class

Class I luminaire

Cover

Anti-UV PC

Body material

PC





Standard Compliance

Standard

IEC 60598-1; IEC 60598-2-1; CISPR 15; IEC 61347-1; IEC 61547; IEC 61000-3-2; IEC 61000-3-3; IEC 60695;

Flammability

IEC 60695

IK code

IEC 62262

Conformity

CE, CCC, CB

Environment

RoHS
