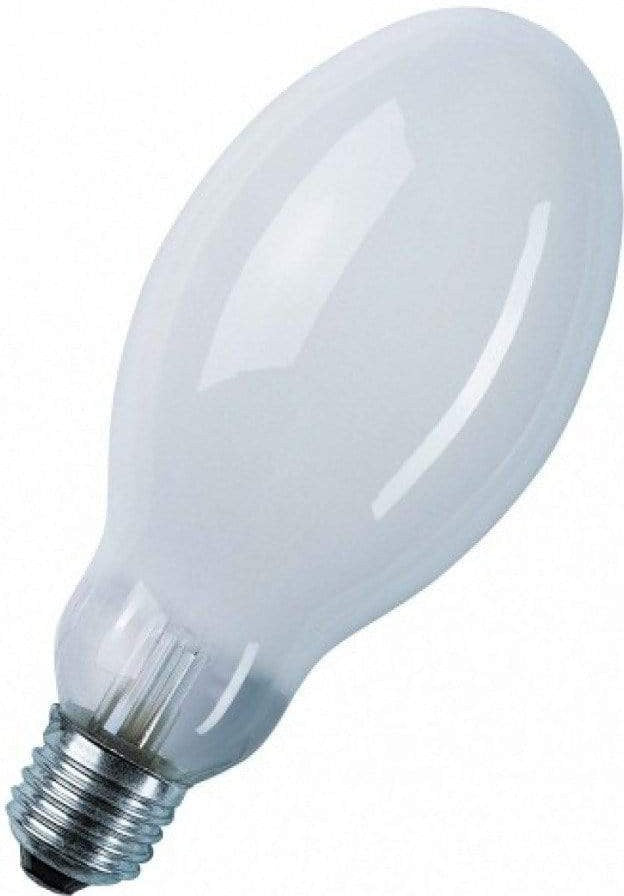

Osram NAV-E E40 x12PCs

Regular price $ 290.40 SGD
Regular price $ 310.72 SGD Sale price $ 290.40 SGD
Sale Sold out
Shipping calculated at checkout.

Product Code:

AvailabilityIN STOCK

POWER
NAV-E 100W E40 12X1
NAV-E 150W E40 12X1
NAV-E 250W E40 12X1
NAV-E 400W E40 12X1



Electrical data

Nominal wattage 100 W / 150 W / 250 W / 400 W / 1000 W
Rated wattage 97.00 W
Lamp current 1.2 A
Nominal voltage 100 V
Ignition voltage
3.3 / 5.0 kVp

Photometrical data

Rated lamp efficacy (standard condition) 91 lm/W
Rated luminous flux 8800 lm
Color rendering index Ra ≤25
Color temperature 2000 K
Rated LLMF at 2,000 h 0.91
Rated LLMF at 4,000 h 0.90
Rated LLMF at 6,000 h 0.89
Rated LLMF at 8,000 h 0.88
Rated LLMF at 12,000 h 0.88
Rated LLMF at 16,000 h 0.87
Rated LLMF at 20,000 h 0.86

Dimensions & weight

Diameter 76.0 mm
Length 183.0 mm
Product weight 95.00 g

Temperatures & operating conditions

Maximum permitted outer bulb temperature 310 °C
Maximum permitted base edge temperature 210 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.98
Rated lamp survival factor at 8,000 h 0.96
Rated lamp survival factor at 12,000 h 0.95
Rated lamp survival factor at 16,000 h 0.83
Rated lamp survival factor at 20,000 h 0.70
Lifespan B50 28000 h
Lifespan B10 14000 h
Lifespan B5 12000 h
Operation mode LLMF/LSF 50 Hz

Additional product data

Base (standard designation) E40
Product remark Phased out in the EU as non ErP compliant according to EU directive 245/2009
Design / version Coated
Mercury content
14.0 mg

Capabilities

Dimmable
Yes
Burning position Any
Enclosed luminaire required No

Certificates & standards

Energy efficiency class A+
Energy consumption 107 kWh/1000h

Country-specific categorizations

ILCOS SE-100-H/E/SL-E40-76/183
