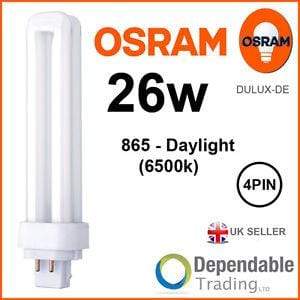

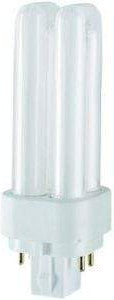

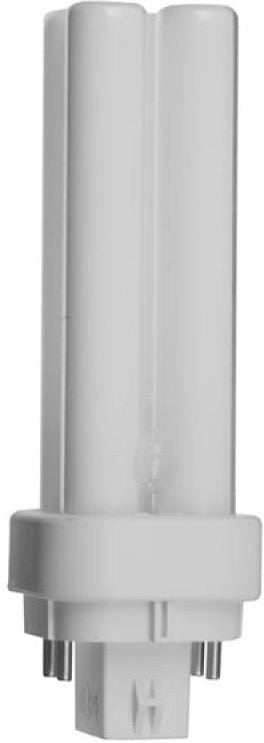

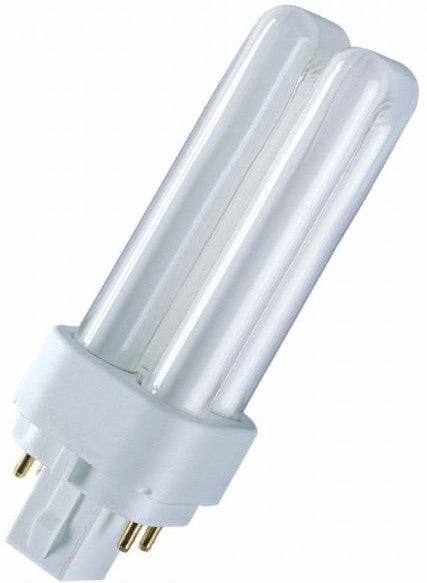

OSRAM DULUX D/E 4PIN x10PCs

$ 26.00

Many In Stock

Light Bulb

4050300012124

LEDVANCE

Add to wishlist
DULUX D/E 10W/827 G24Q-1 10X1 ENNCEOSRAM
DULUX D/E 10W/830 G24Q-1 10X1 ENNCEOSRAM
DULUX D/E 10W/840 G24Q-1 10X1 ENNCEOSRAM
DULUX D/E 10W/865 G24Q-1 10X1 ENNCEOSRAM
DULUX D/E 13W/827 G24Q-1 10X1 ENNCEOSRAM
DULUX D/E 13W/830 G24Q-1 10X1 ENNCEOSRAM
DULUX D/E 13W/840 G24Q-1 10X1 ENNCEOSRAM
DULUX D/E 13W/865 G24Q-1 10X1 ENNCEOSRAM
DULUX D/E 18W/827 G24Q-2 10X1 ENNCEOSRAM
DULUX D/E 18W/830 G24Q-2 10X1 ENNCEOSRAM
DULUX D/E 18W/840 G24Q-2 10X1 ENNCEOSRAM
DULUX D/E 18W/865 G24Q-2 10X1 ENNCEOSRAM
DULUX D/E 26W/827 G24Q-3 10X1 ENNCEOSRAM
DULUX D/E 26W/830 G24Q-3 10X1 ENNCEOSRAM
DULUX D/E 26W/840 G24Q-3 10X1 ENNCEOSRAM
DULUX D/E 26W/865 G24Q-3 10X1 ENNCEOSRAM

Electrical data

Nominal wattage 10 W / 13 W / 18 W /  26 W /
Nominal voltage 64 V
Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
Rated wattage 10.00 W

Photometrical data

Nominal luminous flux 600 lm
Rated luminous flux 600 lm
Rated color temperature 2700 K
Color rendering index Ra 80…89
Rated LLMF at 2,000 h 0.89
Rated LLMF at 4,000 h 0.86
Rated LLMF at 6,000 h 0.84
Rated LLMF at 8,000 h 0.82
Rated LLMF at 12,000 h 0.79
Rated LLMF at 16,000 h 0.78
Rated LLMF at 20,000 h 0.76

Dimensions & weight

Diameter 12.0 mm
Overall length 103.0 mm
Length 99.5 mm
Length acc. to IEC standard 95 mm
Length with base excl. base pins/connection 87.00 mm
Outer bulb T12

Lifespan

Nominal lamp life time 10000 h
Rated lamp life time 10000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.95
Rated lamp survival factor at 16,000 h 0.81
Rated lamp survival factor at 20,000 h 0.50
Operation mode LLMF/LSF HF
Lifespan
20000 h

Additional product data

Base (standard designation) G24q-1
Mercury content 5.0 mg

Capabilities

Suitable for indoor Yes
