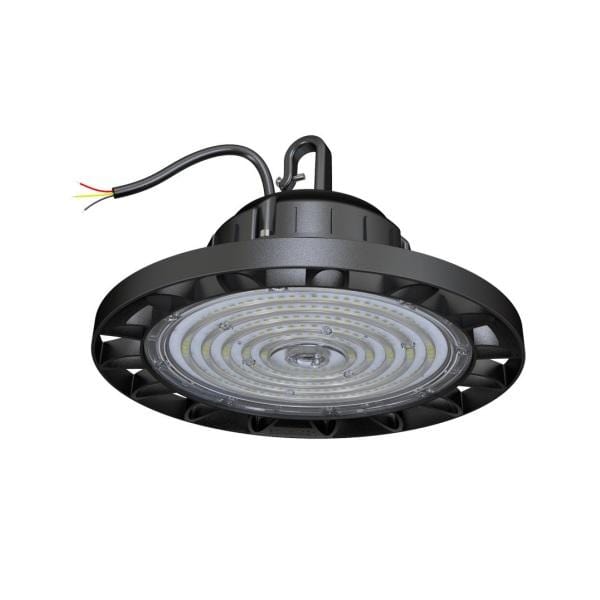

OSRAM LED Performance HighBay 120 W 4000 K GEN2

$ 200.00 $ 214.00

Many In Stock

Fixture

4058075261914

E5

Add to wishlist

*Check stock before ordering. Lead time 14-16 WEEKS ARO.*

For datasheet click here.

AREAS OF APPLICATION
– Industrial and storage facilities
– Production and assembly facilities
– Warehouses
– Loading docks
– Train stations
– Aircraft hangers
– Shopping malls
– Supermarkets
PRODUCT BENEFITS
– Equipment for suspended and pole mounting included
– Unique heat sink design with air channels to increase system reliability
– Low maintenance and operation costs due to long lifetime of LED
– Single piece lens, color stable and shape-retaining even at high temperatures
– High efficiency and reliability
PRODUCT FEATURES
– Four versions with different luminous flux available
– Luminous efficacy: up to 135 lm/W
– Lifetime: up to 50,000 h
– Beam angle: 90°×90° or 70°×70°
– Color rendering index R
a
: ≥ 80
– Power factor: > 0.9
– Impact resistance: IK08
– Type of protection: IP65
– Robust die-cast aluminum housing
– CCC marked, CB test certificate
TECHNICAL DATA
Electrical data
Nominal wattage 120.00 W
Nominal voltage 220…240 V
Power factor λ >0.90
Mains frequency 50/60 Hz
Photometrical data
Color temperature 4000 K
Luminous efficacy 135 lm/W
Luminous flux 16200 lm
Standard deviation of color matching <5 sdcm
Light color (designation) Cool White
Color rendering index Ra 80
Light technical data
Beam angle 90 °
Dimensions & weight
Diameter 285.0 mm
Height 129.5 mm
Product weight 2700.00 g
Cable length 500 mm
Colors & materials
Body material Aluminum/Plastic
Product color Black
Housing color Black
Temperatures & operating conditions
Ambient temperature range -30…+50 °C
Lifespan
Number of switching cycles 50000
Lifespan L70/B50 at 25 °C 50000 h
Additional product data
Mounting type Suspended
Mounting location Ceiling
Capabilities
Dimmable No
Type of connection Cable, 3-pole
LED module replaceable Not replaceable
Certificates & standards
Protection class IK (shock resistance) IK08
Protection class I
Type of protection IP65
Logistical data
Temperature range at storage -40…+70 °C
