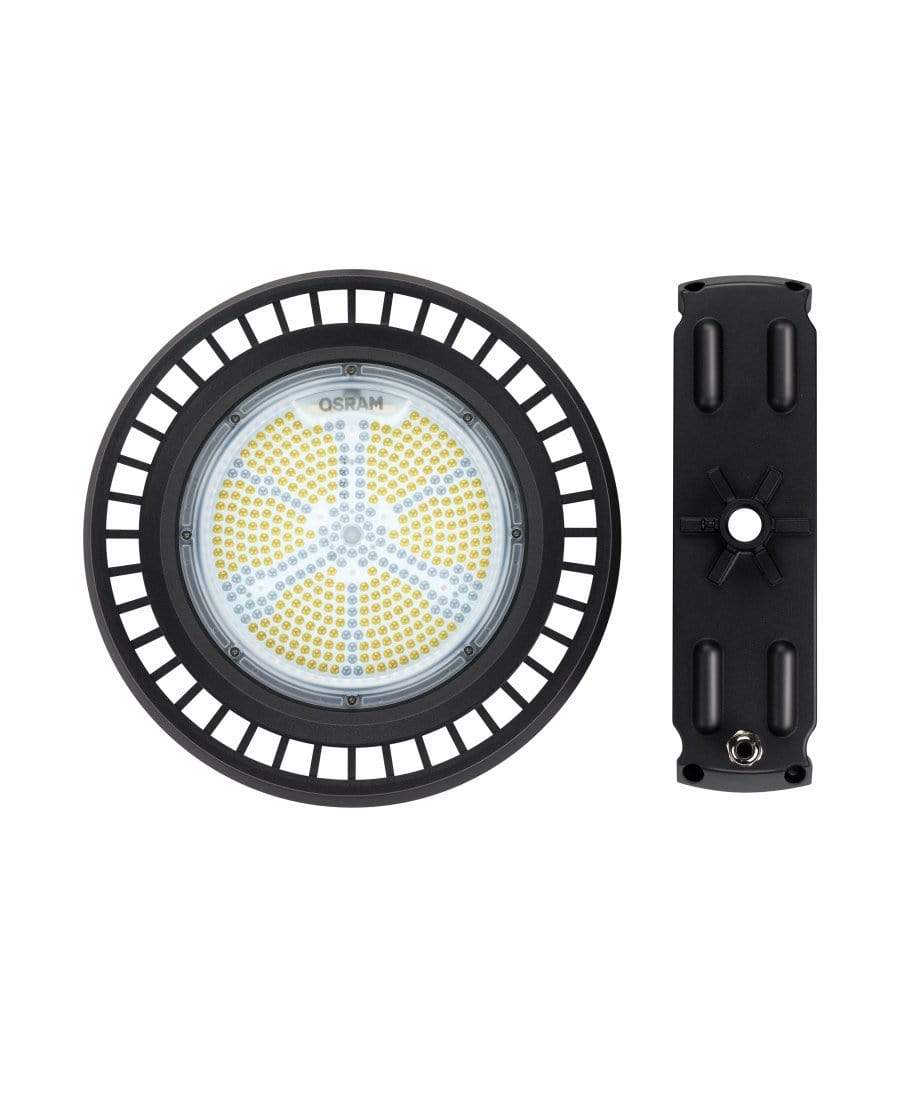

OSRAM GinoLED HO Module G1

$ 154.20 $ 243.80

Many In Stock

Fixture

4052899543218

F3

Add to wishlist
Product family features
  • Available with beam angle: 60°×60° and 90°×90°
  • Available with color temperature: 4,000 K, 6,500 K
  • Color rendering index Ra: 80
  • Impact resistance: IK08
  • Type of protection: IP65
  • Lifetime (L70/B50): 50,000 h
  • Operating temperature range: -30…45 °C
  • CE marked
  • Lifetime (L70/B50) for GL-HO-G1 80: 50,000 h (temperature at Tp = 50 °C)
  • Lifetime (L70/B50) for GL-HO-G1 120: 50,000 h (temperature at Tp = 55 °C)
  • Lifetime (L70/B50) for GL-HO-G1 150/180: 50,000 h (temperature at Tp = 60 °C)
Product family benefits
  • High module efficacy: up to 154 lm/W

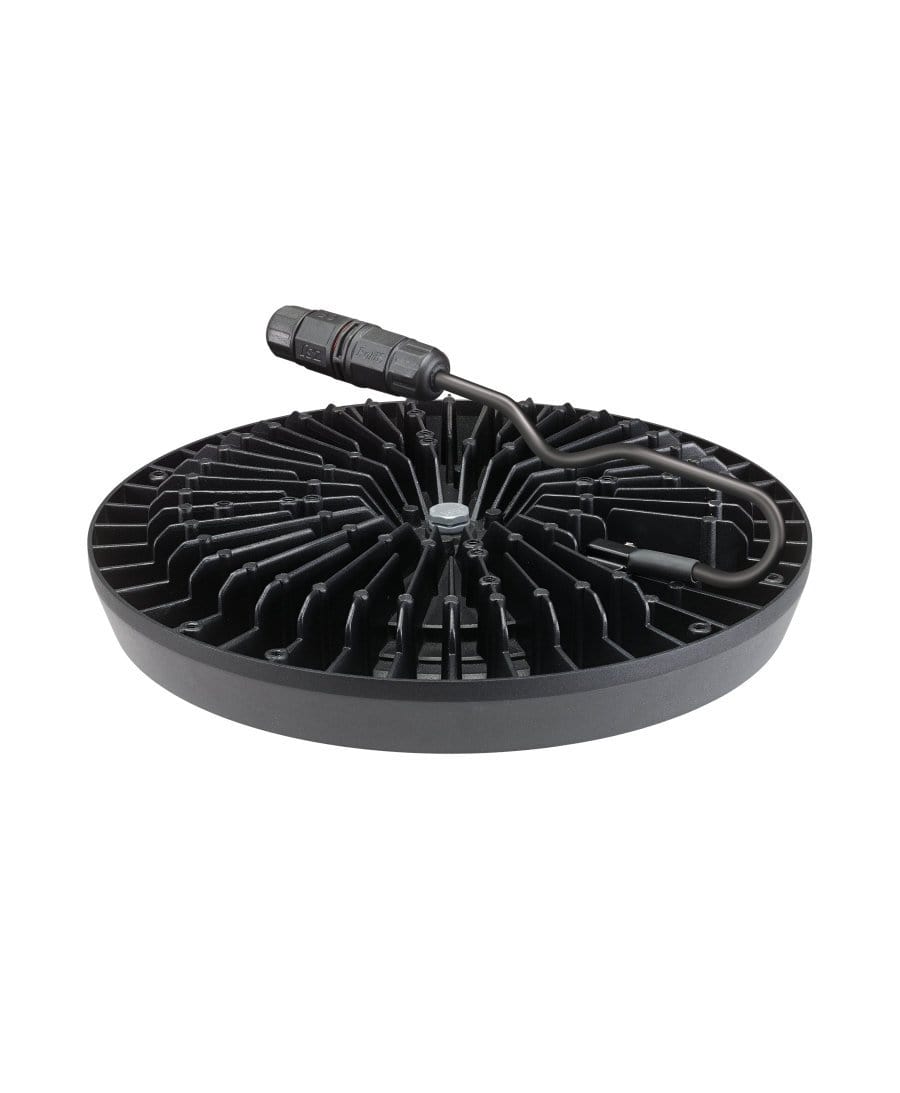

  • Integrated heat sink for optimal thermal management and tailored optical design
  • Light weight design for easy installation



Product name
Color temperature
Color rendering index Ra
Luminous efficacy
Length
Data sheet
GL-HO-G1 80-840 L60X60
4000 K >80 154 lm/W 296.0 mm
GL-HO-G1 80-840 L90X90
4000 K >80 154 lm/W 296.0 mm
GL-HO-G1 80-865 L60X60
6500 K >80 154 lm/W 296.0 mm
GL-HO-G1 80-865 L90X90
6500 K >80 154 lm/W 296.0 mm
GL-HO-G1 120-840 L60X60
4000 K >80 154 lm/W 296.0 mm
GL-HO-G1 120-840 L90X90
4000 K >80 154 lm/W 296.0 mm
GL-HO-G1 120-865 L60X60
6500 K >80 154 lm/W 296.0 mm
GL-HO-G1 120-865 L90X90
6500 K >80 154 lm/W 296.0 mm
GL-HO-G1 150-840 L60X60
4000 K >80 154 lm/W 339.0 mm
GL-HO-G1 150-840 L90X90
4000 K >80 154 lm/W 339.0 mm
GL-HO-G1 150-865 L60X60
6500 K >80 154 lm/W 339.0 mm
GL-HO-G1 150-865 L90X90
6500 K >80 154 lm/W 339.0 mm
GL-HO-G1 180-840 L60X60
4000 K >80 154 lm/W 339.0 mm
GL-HO-G1 180-865 L60X60
6500 K >80 154 lm/W 339.0 mm
GL-HO-G1 180-865 L90X90
6500 K >80 154 lm/W 339.0 mm

Reference Technical Data for 180W 6500K
GL-HO-G1 180-865 L90X90

Electrical data

Nominal current

1.05 A

Type of current

DC

Photometrical data

Luminous efficacy

154 lm/W

Color temperature

6500 K

Color rendering index Ra

>80

Dimensions & weight

Product weight

2800.00 g

Length

339.0 mm

Temperatures & operating conditions

Temperature range in operation at Tc point

-30…45 °C

Temperature range at storage

-40…80 °C

Lifespan

Lifespan

50000 h

Capabilities

Dimmable

Yes

Certificates & standards

Type of protection

IP65

Standards

Acc. to IEC 62778/Acc. to IEC 60598-1/Acc. to EN 62031/Acc. to EN 55015/Acc. to EN 61547/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3

Logistical data

Commodity code

888888888888

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4052899543539 FS 1
4052899543546 VS 4 860mm x 430mm x 490mm 18116.00g 181.20dm³
