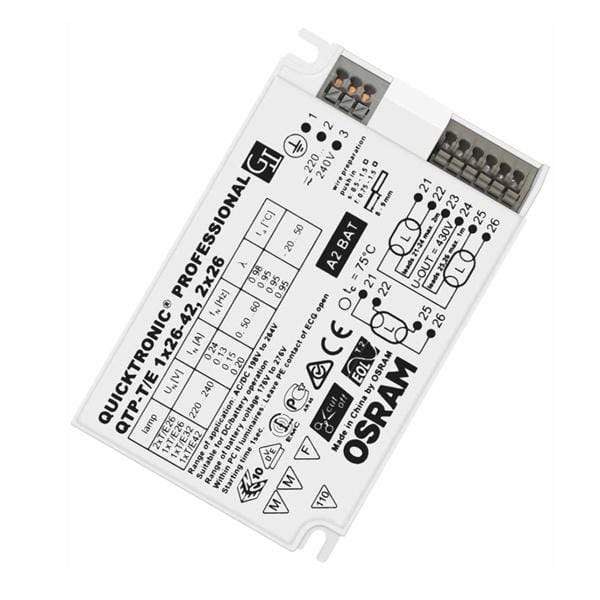

Osram QTP-T/E/M Electronic Compact Fluorescent Lighting Ballast IP20 x4Pcs
Osram QTP-T/E/M Electronic Compact Fluorescent Lighting Ballast IP20 x4Pcs
SKU SKU:4008321537089
Regular price
$ 132.00 SGD
Regular price
$ 132.00 SGD
Sale price
$ 132.00 SGD
Unit price
/
per
Shipping calculated at checkout.
36 in stock
Couldn't load pickup availability
Share
Technical data sheets
Data Sheet
*Check stock before ordering. Lead time 4 working days*
Product Details
QUICKTRONIC ECONOMIC Electronic Control Gear
The Osram Quicktronic Economic is an electronic control gear for fluorescent and compact fluorescent lamps. This ECG features automatic safety shutdown of lamps in the event of a defect or at end of life and automatic restart after lamp replacement.
Ideal applications for the Quicktronic Economic electronic high frequency control gear are in public buildings use.
Automatic restart after lamp replacement
Supply voltage: 220-240V
Line voltage: 198-254V
Line frequency: 50 Hz
Automatic shutdown of defective lamps and at end of life
Specifications
42W - 103mm
| Attribute | Value |
| Wattage | 42 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | CFL |
| Supported Lamp Type | Compact Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 103 mm |
| Width | 67 mm |
| Height | 31mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| EU Energy Efficiency Rating | A2 |
| Series | QUICKTRONIC |
18W - 103mm
| Attribute | Value |
| Wattage | 18 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | CFL |
| Supported Lamp Type | Compact Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 103 mm |
| Width | 67 mm |
| Height | 31mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| EU Energy Efficiency Rating | A2 |
| Series | QUICKTRONIC |
46W - 103mm
| Attribute | Value |
| Wattage | 46 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | CFL |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 103 mm |
| Width | 67 mm |
| Height | 31mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| Series | QUICKTRONIC |
| EU Energy Efficiency Rating | A2 |
68W - 123mm
| Attribute | Value |
| Wattage | 68 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | CFL |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 123 mm |
| Width | 79 mm |
| Height | 33mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| EU Energy Efficiency Rating | A2 |
| Series | QUICKTRONIC |
