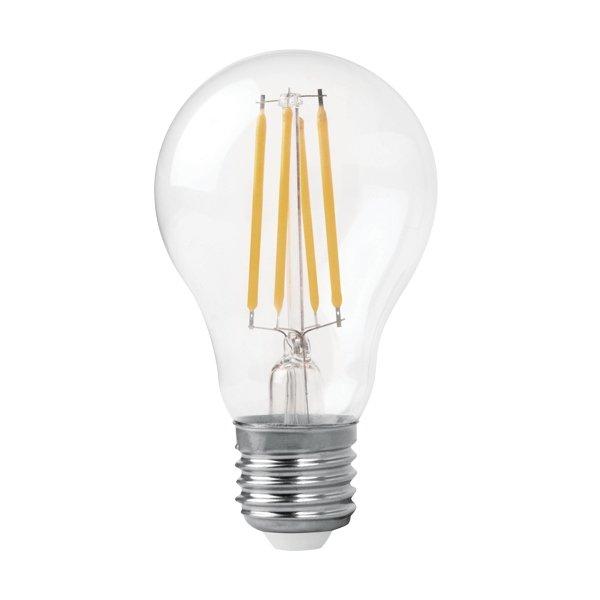

MEGAMAN LED Filament Classic A60 8.4W Clear Dim, LED Filament Bulb

$ 9.60 $ 9.90

2388 In Stock

LED Bulb

4892657098907

MEGAMAN

Add to wishlist
Install this beautiful MEGAMAN LED FILAMENT CLASSIC A60 8.4W CLEAR DIM bulb and get a vintage look in the installed place. This product goes well with your vintage theme home decor which is pocket friendly.





General Data



Rated Voltage [V]

220-240

Wide Voltage Range[V]

220-240

Surge Voltage [V]

500

Frequency [Hz]

50

Lamp Wattage [W]

8.4

Lamp Current [mA]

48

Power Factor

>0.8

Dimmable[N/Y]

Y

Outdoor Use[N/Y]

N

DC 230V Input [N/Y]

N

Operating Temp [℃]

-30 to +45

Light Data [Initial]



Lux distribution [lux]

N/A

Max.luminous Intensity[cd]

N/A

Beam Angle[°]

N/A

Total lumen[lm]

810

90° Useful Lumen[lm]

N/A

120° Useful Lumen[lm]

N/A

Color Temperature [K]

2700

SDCM

≤6

Color Rendering Index

≥90

Energy class

A+

Weighted energy consumption

9

Equivalence Wattage(W)

60

Lamp Efficacy

96

LLMF

≥0.7

Warm Up Time 60%[sec]

Instant full light

Starting Time[sec]

<0.5

Warning for lamp >90 deg

N/A

Inrush current Ipeak(A)

TBA

Inrush current Twidth(uS)

TBA

Percentage Flicker(%)

N/A

EEI



Life Time [at 230V, lot size min. 20 units]



Life Time at 230V, 25℃ [h]

15,000

Switching cycle up to 50% failure (30s on, 30s off) [cycles]

100,000

Geometrical Data





  • Diameter (R) [mm] 60±1.0
  • Diagonal(D)[mm] N/A
  • Width(W)[mm] N/A
  • Height(H)[mm] N/A
  • Length (L) [mm]    104±3.0
  • Weight [g]         0.034
  • Base E27
  • RoHS Compliant
  • Color of plastic component transparent
  • Cover finish glass
  • Flammability of plastic component ≥V2
  • Technical Data
    • Safety Requirement according to IEC/EN 62560

according to IEC/EN 62493

  • Photobiological Safety according to IEC/EN62471
  • Performance Requirement according to ERP 244

according to IEC 62612

  • EMC Requirement according toEN 55015

according toIEC/EN 61547

according toIEC/EN 61000-3-2

according toIEC/EN 61000-3-3

  • Approvals CE
  • Lamp cap twist safe[Nm] 3
