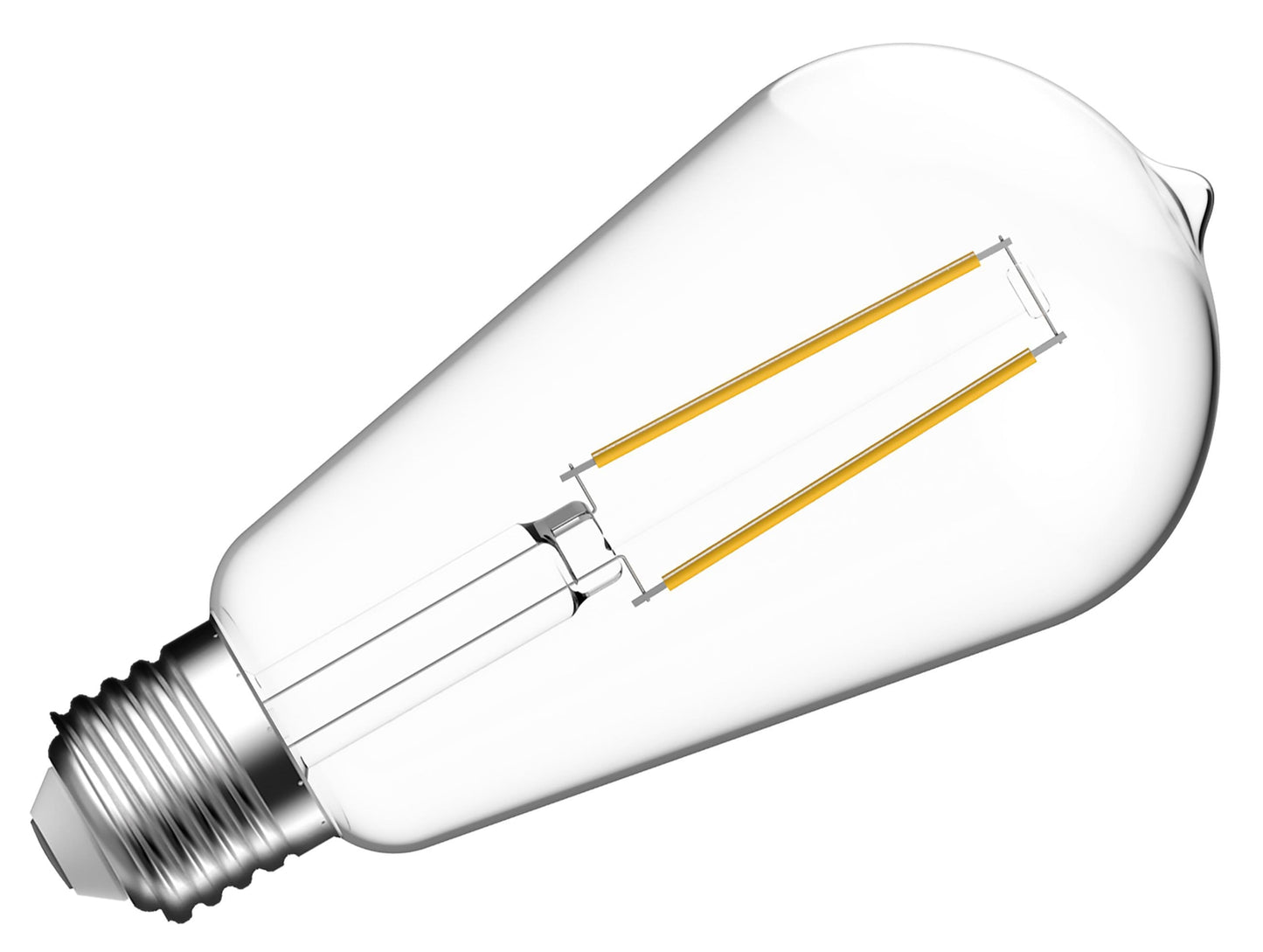

MEGAMAN LED 4.5W Filament ST64 Warm White, LED Filament Bulbs

$ 8.30 $ 8.90

2285 In Stock

LED Bulb

4892657098785

MEGAMAN

Add to wishlist
MEGAMAN lighting is one the most trusted LED lighting in the market today.  MEGAMAN LED 4.5W FILAMENT ST64 WARMWHITE is an LED filament bulb which is compatible with LED Pendant lights, LED ceiling lights, LED spotlights etc., The product gives warm white colored light which brings cozy effect.
  •

    General Data



    Rated Voltage [V]

    220-240

    Surge Voltage [V]

    500

    Frequency [Hz]

    50

    Lamp Wattage [W]

    4.5

    Lamp Current [mA]

    46

    Power Factor

    >0.4

    Dimmable[N/Y]

    N

    Outdoor Use[N/Y]

    N

    DC 230V Input [N/Y]

    N

    Operating Temp [℃]

    -30 to +45

    Light Data [Initial]



    Lux distribution [lux]

    N/A

    Max.luminous Intensity[cd]

    N/A

    Beam Angle[°]

    N/A

    Total lumen[lm]

    470

    90° Useful Lumen[lm]

    N/A

    120° Useful Lumen[lm]

    N/A

    Color Temperature [K]

    2700

    SDCM

    ≤6

    Color Rendering Index

    80

    Energy class

    A++

    Weighted energy consumption

    5

    Equivalence Wattage(W)

    40

    Lamp Efficacy

    104

    LLMF

    ≥0.7

    Warm Up Time 60%[sec]

    Instant full light

    Starting Time[sec]

    <0.5

    Warning for lamp >90 deg

    N/A

    Inrush current Ipeak(A)

    TBA

    Inrush current Twidth(uS)

    TBA

    Percentage Flicker(%)

    <3

    EEI

    0.11

    Life Time [at 230V, lot size min. 20 units]



    Life Time at 230V, 25℃ [h]

    15,000

    Switching cycle up to 50% failure (30s on, 30s off) [cycles]

    >100,000

    Geometrical Data



  • Diameter (R) [mm] 64±1.0
  • Diagonal(D)[mm] N/A
  • Width(W)[mm] N/A
  • Height(H)[mm] N/A
  •  Length (L) [mm]    140±3.0
  • Weight [g] 4
  • Base E27
  • RoHS Compliant
  • Color of plastic component Clear
  • Cover finish Glass
  • Flammability of plastic component ≥V2
  • Technical Data
    • Safety Requirement according to IEC/EN 62560

according to IEC/EN 62493

  • Photobiological Safety according to IEC/EN62471
  • Performance Requirement according to ERP 244

according to IEC 62612

  • EMC Requirement according toEN 55015

according toIEC/EN 61547

according toIEC/EN 61000-3-2

according toIEC/EN 61000-3-3

  • Approvals CE
  • Lamp cap twist safe[Nm] 3
