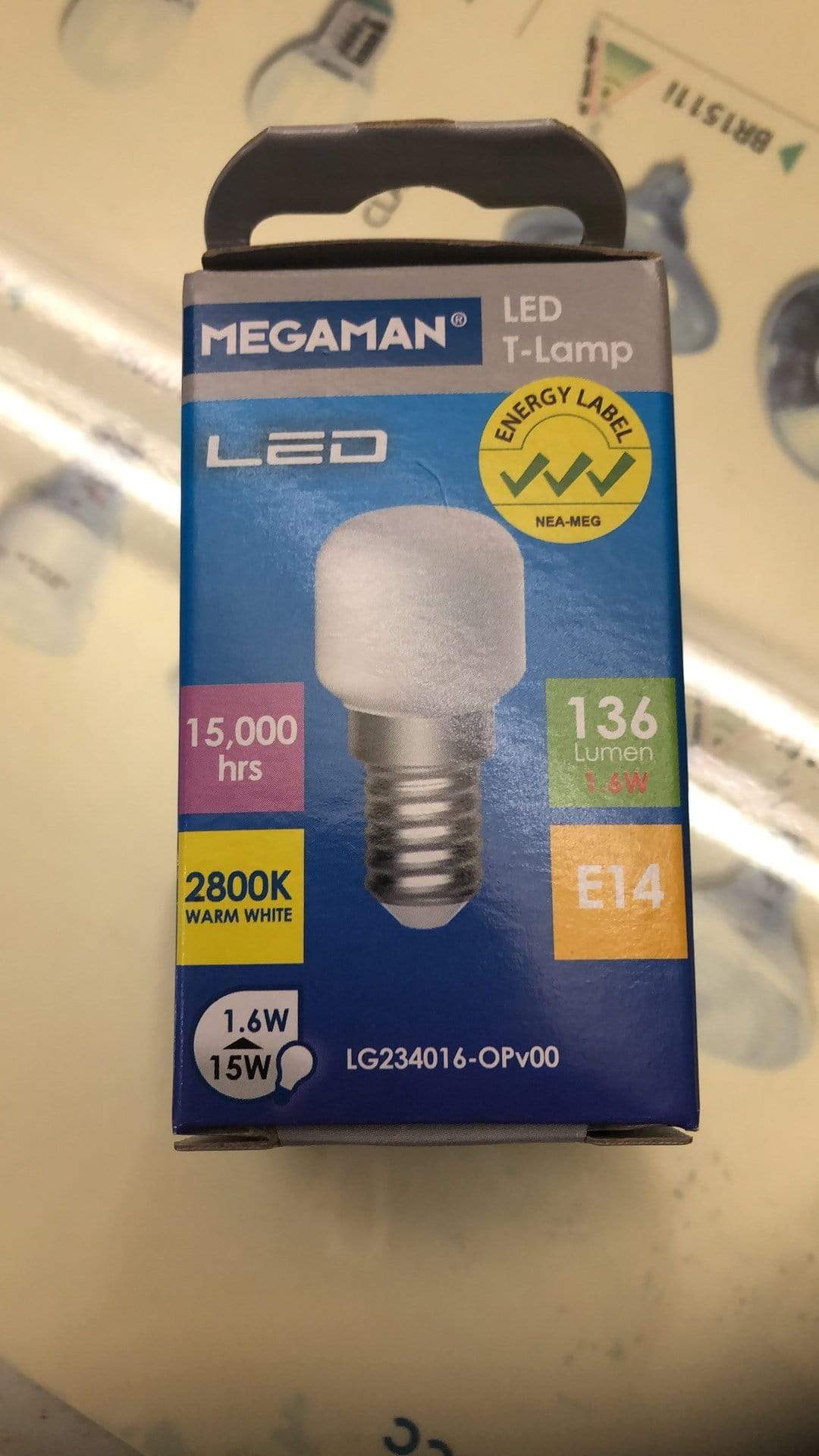

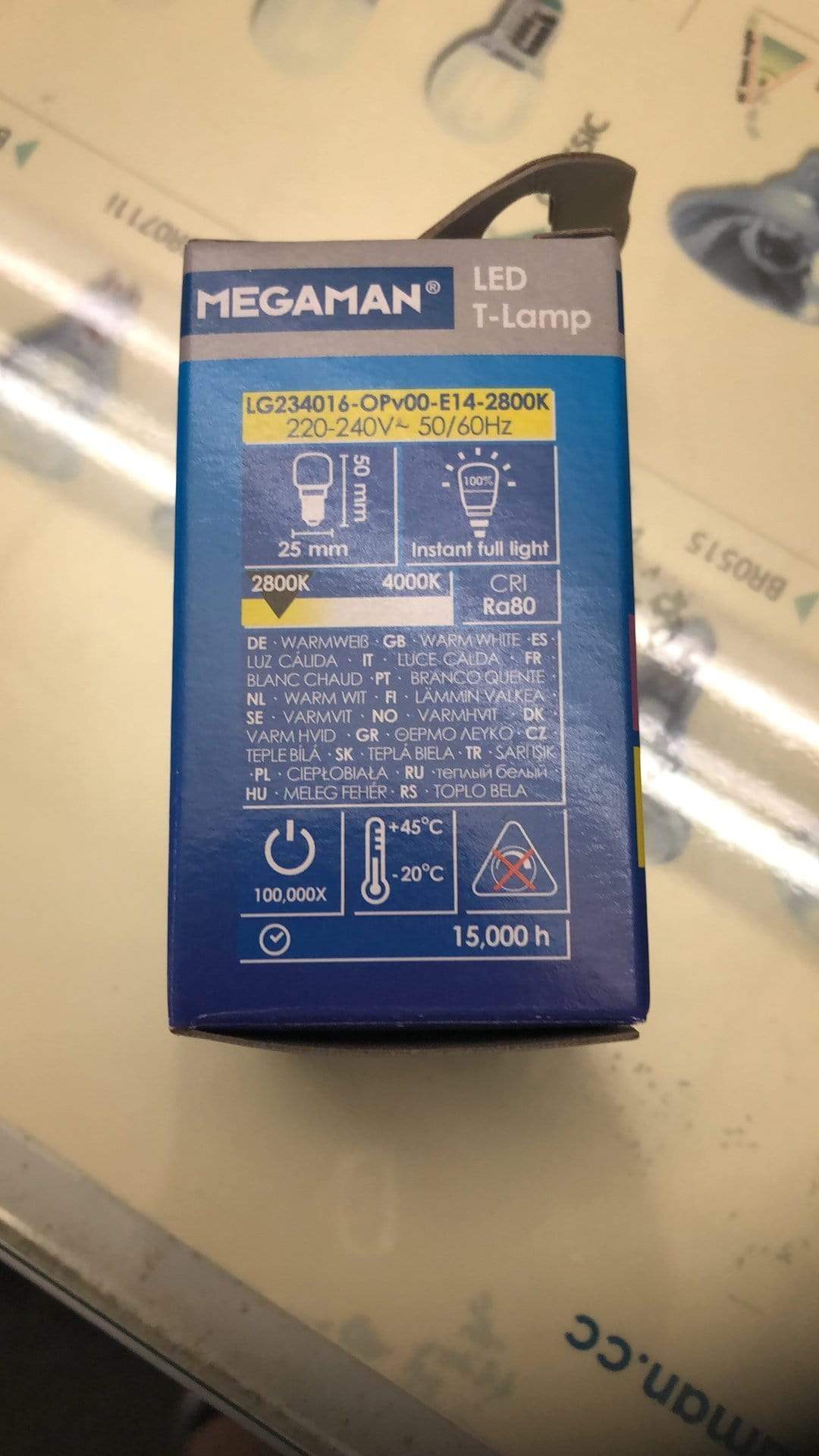

MEGAMAN LED T-LAMP 1.6W Warm White LED Bulb, LED Light Bulbs

Product Code 4892657098778

AvailabilityIn stock

$ 10.90 $ 10.20
Unit price
per
Shipping calculated at checkout.
Hurry! only 800 left in stock!
We will deliver on Wednesday 09/29/2021
Request For Quote

MEGAMAN lighting is one of the most popular products in the market which has got many best selling LED lights. MEGAMAN LED T-LAMP 1.6W WARM WHITE is a LED lamp bulb which gives warm white colored light providing pleasant and refreshing atmosphere.



General Data



Rated Voltage [V]

220-240

Surge Voltage [V]

500

Frequency [Hz]

50/60

Lamp Wattage [W]

1.6

Lamp Current [mA]

17

Power Factor

N/A

Dimmable[N/Y]

N

Outdoor Use[N/Y]

N

DC 230V Input[N/Y]

N

Operating Temp [℃]

-30 to +45

Light Data [Initial]



Lux distribution [lux]

N/A

Max.luminous Intensity[cd]

N/A

Beam Angle[°]

N/A

Total lumen[lm]

136

90° Useful Lumen[lm]

N/A

120° Useful Lumen[lm]

N/A

Color Temperature [K]

2800

SDCM

≤6

Color Rendering Index

80

Energy class

A++

Weighted energy consumption

2

Equivalence Wattage(W)

15

Lamp Efficacy

85

LLMF

0.7

Warm Up Time 60%[sec]

Instant full light

Starting Time[sec]

<0.5

Warning for lamp >90 deg

N/A

Inrush current Ipeak(A)

TBA

Inrush current Twidth(uS)

TBA

Percentage Flicker(%)

TBA

EEI

0.09

Life Time [at 230V, lot size min. 20 units]



Life Time at 230V, 25℃ [h]

15,000

Switching cycle up to 50% failure (30s on, 30s off) [cycles]

>100,000

Geometrical Data



Diameter (R) [mm]

25±1.0

Diagonal(D)[mm]

N/A

Width(W)[mm]

N/A


          Height(H) [mm]                   N/A

          Length (L) [mm]                  50±1.0

  • Weight [g] 8
  • Base E14
  • RoHS Compliant
  • Color of plastic component Frosted
  • Cover finish Plastic+Ceramic
  • Flammability of plastic component ≥V2
  • Technical Data
    • Safety Requirement according to IEC/EN 62560

according to IEC/EN 62493

  • Photobiological Safety according to IEC/EN62471
  • Performance Requirement according to ERP 244

according to IEC 62612

  • EMC Requirement according toEN 55015

according toIEC/EN 61547

according toIEC/EN 61000-3-2

according toIEC/EN 61000-3-3

  • Approvals CE
  • Lamp cap twist safe[Nm] 15
