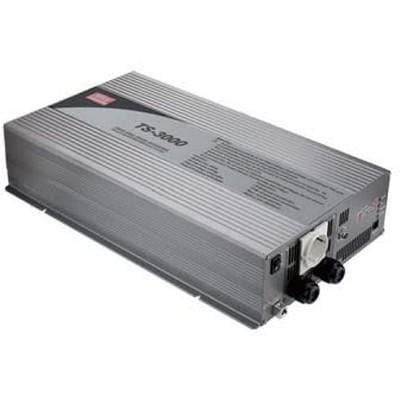

MEANWELL TS Series True Sine Wave Power Inverter

$ 163.19 $ 1,572.00

Many In Stock

Ballast /Drivers

TS-200-212B

S7

Add to wishlist
Features :
  • True sine wave output (THD<3%}
  • High surge power up to 400W/800W/1400W/2000W/3000W/6000W
  • High efficiency up to 92%
  • Power ON-OFF switch
  • Standby saving mode can be selectable
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Protections: low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short / Input polarity reverse / Overload / AC circuit breaker
  • Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
  • Optional monitoring software and connection cable (MW order No.: DS-TN-1500}

Specification:

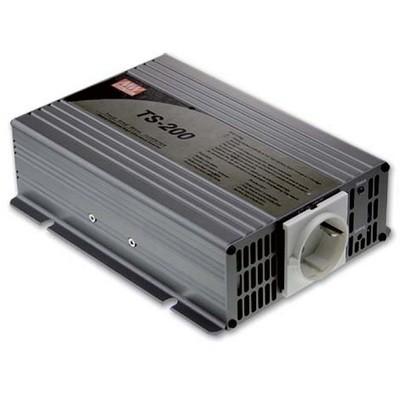

MODEL

TS-200-112

TS-200-124

TS-200-148

TS-200-212

TS-200-224

TS-200-248











OUTPUT

RATED POWER

200W

MAXIMUM OUTPUT POWER

230W for 180 sec. / 300W for 10 sec. / surge power 400W for 30 cycles(typ.)



AC VOLTAGE

Factory setting set at 110VAC

Factory setting set at 230VAC

100 / 110 / 115 / 120VAC selectable by setting button S.W

200 / 220 / 230 / 240VAC selectable by setting button S.W

FREQUENCY

60±0.1Hz 50/60Hz selectable by setting button

50±0.1Hz 50/60Hz selectable by setting button

WAVEFORM                        Note.1

True sine wave (THD<3%)

AC REGULATION               Note.1

±3.0% at rated input voltage

FRONT PANEL INDICATOR

Operation status ; Green : normal, Orange(flashing) : remote control OFF, Red : abnormal









INPUT

BAT. VOLTAGE

12V

24V

48V

12V

24V

48V

VOLTAGE RANGE (Typ.) Note.3

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

DC CURRENT (Typ.)

20A

10A

5A

20A

10A

5A

NO LOAD CURRENT DRAW (Typ.)

1.25A

0.63A

0.32A

1.25A

0.63A

0.32A

OFF MODE CURRENT DRAW

≦1mA

EFFICIENCY (Typ.)           Note.1

86%

87.5%

88%

86%

87.5%

88%

BATTERY TYPES

Open & sealed Lead Acid



BATTERY INPUT PROTECTION

FUSE

30A*2

30A*1

15A*1

30A*2

30A*1

15A*1

BAT. LOW ALARM

11.3±4%

22.5±4%

45±4%

11.3±4%

22.5±4%

45±4%

BAT. LOW SHUTDOWN

10.5±4%

21±4%

42±4%

10.5±4%

21±4%

42±4%

BAT. POLARITY

By internal fuse open







OUTPUT PROTECTION



OVER TEMPERATURE

85℃± 5℃

80℃± 5℃

80℃± 5℃

85℃± 5℃

80℃± 5℃

80℃± 5℃

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH1 detect power transistor

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover



OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

Optional (Only type F)

None

FUNCTION

REMOTE CONTROL

Open : Normal work ; Short : Remote off





ENVIRONMENT

WORKING TEMP.

-10 ~ +35℃ @ 100% load ; +60℃ @ 50% load

-10 ~ +40℃ @ 100% load, +60℃ @ 50% load

WORKING HUMIDITY

20% ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes







SAFETY & EMC

SAFETY STANDARDS

EAC TP TC 004, Design refer to UL458

EAC TP TC 004

LVD

None

EN60950-1

WITHSTAND VOLTAGE

Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to FCC class A, EAC TP TC 020

Compliance to EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020

EMC IMMUNITY

Compliance to EAC TP TC 020

Compliance to EN61000-4-2,3,8, EAC TP TC 020



OTHERS

MTBF

106.2K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

205*158*59mm (L*W*H)

PACKING

1.63Kg; 6pcs/10.8Kg/1.44CUFT

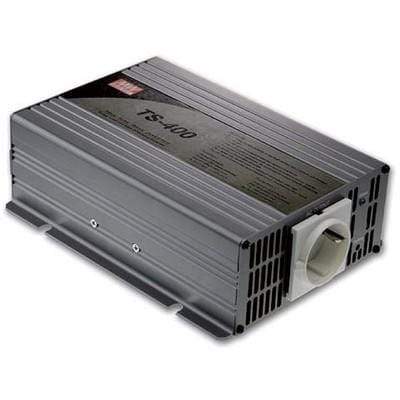

MODEL

TS-400-112

TS-400-124

TS-400-148

TS-400-212

TS-400-224

TS-400-248











OUTPUT

RATED POWER

400W

MAXIMUM OUTPUT POWER

460W for 180 sec. / 600W for 10 sec. / surge power 800W for 30 cycles(typ.)



AC VOLTAGE

Factory setting set at 110VAC

Factory setting set at 230VAC

100 / 110 / 115 / 120VAC selectable by setting button S.W

200 / 220 / 230 / 240VAC selectable by setting button S.W

FREQUENCY

60±0.1Hz 50/60Hz selectable by setting button

50±0.1Hz 50/60Hz selectable by setting button

WAVEFORM                       Note.2

True sine wave (THD<3%)

AC REGULATION              Note.2

±3.0% at rated input voltage

FRONT PANEL INDICATOR

Operation status ; Green : normal, Orange(flashing) : remote control OFF, Red : abnormal









INPUT

BAT. VOLTAGE

12V

24V

48V

12V

24V

48V

VOLTAGE RANGE (Typ.) Note.3

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

DC CURRENT (Typ.)

40A

20A

10A

40A

20A

10A

NO LOAD CURRENT DRAW (Typ.)

1.25A

0.63A

0.32A

1.25A

0.63A

0.32A

OFF MODE CURRENT DRAW

≦1mA

EFFICIENCY (Typ.)           Note.1

84.5%

86%

87%

86%

87.5%

88.5%

BATTERY TYPES

Open & sealed Lead Acid



BATTERY INPUT PROTECTION

FUSE

40A*2

40A*1

20A*1

40A*2

40A*1

20A*1

BAT. LOW ALARM

11.3±4%

22.5±4%

45±4%

11.3±4%

22.5±4%

45±4%

BAT. LOW SHUTDOWN

10.5±4%

21±4%

42±4%

10.5±4%

21±4%

42±4%

BAT. POLARITY

By internal fuse open







OUTPUT PROTECTION



OVER TEMPERATURE

85℃± 5℃

75℃± 5℃

70℃± 5℃

85℃± 5℃

75℃± 5℃

70℃± 5℃

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH1 detect power transistor

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover

OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

Optional (Only type F)

None

FUNCTION

REMOTE CONTROL

Open : Normal work ; Short : Remote off





ENVIRONMENT

WORKING TEMP.

-10 ~ +40℃ @ 100% load ; +60℃ @ 50% load

WORKING HUMIDITY

20% ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes







SAFETY & EMC

SAFETY STANDARDS

EAC TP TC 004, Design refer to UL458

EAC TP TC 004

LVD

None

EN60950-1

WITHSTAND VOLTAGE

Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to FCC class A, EAC TP TC 020

Compliance to EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020

EMC IMMUNITY

Compliance to EAC TP TC 020

Compliance to EN61000-4-2,3,8, EAC TP TC 020



OTHERS

MTBF

104.7K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

205*158*67mm (L*W*H)

PACKING

1.73Kg; 6pcs/11.4Kg/1.55CUFT

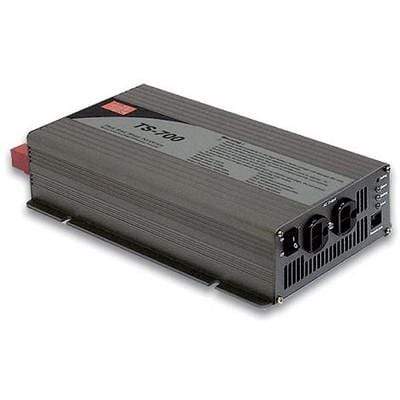

MODEL

TS-700-112

TS-700-124

TS-700-148

TS-700-212

TS-700-224

TS-700-248













OUTPUT

RATED POWER (Typ.)

700W

MAXIMUM OUTPUT POWER (Typ.)

800W for 180 sec. / 1050W for 10 sec. / surge power 1400W for 30 cycles



AC VOLTAGE

Factory setting set at 110VAC

Factory setting set at 230VAC

100 / 110 / 115 / 120VAC selectable by setting button S.W

200 / 220 / 230 / 240VAC selectable by setting button S.W

FREQUENCY

60±0.1Hz 50/60Hz selectable by setting button S.W

50±0.1Hz 50/60Hz selectable by setting button S.W

WAVEFORM                        Note.6

True sine wave (THD<3%)

AC REGULATION (Typ.)

±3.0%

SAVING MODE (Typ.)

Default disabled. Load≦5W will be changed to standby mode

FRONT PANEL INDICATOR

Battery voltage level, output load level, saving mode, fault and operation status









INPUT

BAT. VOLTAGE

12V

24V

48V

12V

24V

48V

VOLTAGE RANGE (Typ.)Note.3,5

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

DC CURRENT (Typ.)

75A

38A

19A

75A

38A

19A

NO LOAD DISSIPATION (Typ.)

≦6W @ standby saving mode

OFF MODE CURRENT DRAW

≦1mA

EFFICIENCY (Typ.)           Note.1

86%

88%

89%

89%

90%

91%

BATTERY TYPES

Open & sealed Lead Acid



BATTERY INPUT PROTECTION

FUSE

40A*3

30A*2

20A*2

40A*3

30A*2

20A*2

BAT. LOW ALARM

11.3±4%

22.5±4%

45±4%

11.3±4%

22.5±4%

45±4%

BAT. LOW SHUTDOWN

10.5±4%

21±4%

42±4%

10.5±4%

21±4%

42±4%

BAT. POLARITY

By internal fuse open







OUTPUT PROTECTION



OVER TEMPERATURE

80℃± 5℃

75℃± 5℃

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover



OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

Optional (Only type F)

None





ENVIRONMENT

WORKING TEMP.               Note.4

0 ~ +40℃ @ 100% load ; +60℃ @ 50% load

WORKING HUMIDITY

20% ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes







SAFETY & EMC

SAFETY STANDARDS

EAC TP TC 004, Design refer to UL458

EAC TP TC 004

LVD

None

EN60950-1

WITHSTAND VOLTAGE

Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

AC O/P-FG , Bat I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to FCC class A, EAC TP TC 020

Compliance to EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020

EMC IMMUNITY

Compliance to EAC TP TC 020

Compliance to EN61000-4-2,3,8, EAC TP TC 020



OTHERS

MTBF

74.4K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

295*184*70mm (L*W*H)

PACKING

3.8Kg; 2pcs/8.6Kg/1.27CUFT

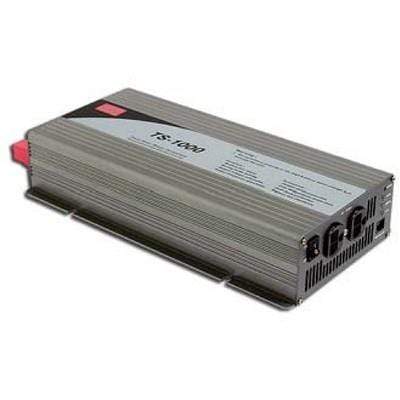

MODEL

TS-1000-112

TS-1000-124

TS-1000-148

TS-1000-212

TS-1000-224

TS-1000-248











OUTPUT

RATED POWER (Typ.)

1000W

MAXIMUM OUTPUT POWER (Typ.)

1150W for 180 sec. / 1500W for 10 sec. / surge power 2000W for 30 cycles



AC VOLTAGE

Factory setting set at 110VAC

Factory setting set at 230VAC

100 / 110 / 115 / 120VAC selectable by setting button S.W

200 / 220 / 230 / 240VAC selectable by setting button S.W

FREQUENCY

60±0.1Hz 50/60Hz selectable by setting button S.W

50±0.1Hz 50/60Hz selectable by setting button S.W

WAVEFORM                        Note.6

True sine wave (THD<3%)

AC REGULATION (Typ.)

±3.0%

SAVING MODE (Typ.)

Default disabled. Load≦5W will be changed to standby mode

FRONT PANEL INDICATOR

Battery voltage level, output load level, saving mode, fault and operation status









INPUT

BAT. VOLTAGE

12V

24V

48V

12V

24V

48V

VOLTAGE RANGE (Typ.)Note.4,6

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

DC CURRENT (Typ.)

100A

50A

25A

100A

50A

25A

NO LOAD DISSIPATION (Typ.)

≦6W @ standby saving mode

OFF MODE CURRENT DRAW

≦1mA

EFFICIENCY (Typ.)           Note.1

88%

89%

90%

90%

91%

92%

BATTERY TYPES

Open & sealed lead acid



BATTERY INPUT PROTECTION

FUSE

40A*4

40A*2

20A*2

40A*4

40A*2

20A*2

BAT. LOW ALARM

11.3±4%

22.5±4%

45±4%

11.3±4%

22.5±4%

45±4%

BAT. LOW SHUTDOWN

10.5±4%

21±4%

42±4%

10.5±4%

21±4%

42±4%

REVERSE POLARITY

By internal fuse open







OUTPUT PROTECTION



OVER TEMPERATURE

90℃± 5℃

70℃± 5℃

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover



OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

Optional (Only type F)

None





ENVIRONMENT

WORKING TEMP.               Note.3

0 ~ +40℃ @ 100% load ; +60℃ @ 50% load

WORKING HUMIDITY

20% ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes







SAFETY & EMC

SAFETY STANDARDS

UL458 (only for "GFCI" receptacle-Type F ), EAC TP TC 004

EAC TP TC 004

LVD

None

EN60950-1

WITHSTAND VOLTAGE

Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

AC O/P-FG, Bat I/P-FG:100M Ohms/500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to FCC class A, EAC TP TC 020

Compliance to EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020

EMC IMMUNITY

Compliance to EAC TP TC 020

Compliance to EN61000-4-2,3,8, EAC TP TC 020





OTHERS

MTBF

66.9K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

345*184*70mm (L*W*H)

PACKING

4.3Kg; 2pcs/9.6Kg/1.16CUFT

COOLING

Loading controlled cooling fan for GFCI receptacle-type F ; Thermostatically controlled cooling fan for others.

MODEL

TS-1500-112

TS-1500-124

TS-1500-148

TS-1500-212

TS-1500-224

TS-1500-248











OUTPUT

RATED POWER (Typ.)

1500W

MAXIMUM OUTPUT POWER (Typ.)

1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles

AC VOLTAGE

100 / 110 / 115 / 120VAC selectable by setting button

200 / 220 / 230 / 240VAC selectable by setting button

FREQUENCY

60±0.1Hz 50/60Hz selectable by setting button S.W

50±0.1Hz 50/60Hz selectable by setting button S.W

WAVEFORM                       Note.2

True sine wave (THD<3%)

AC REGULATION (Typ.)

±3.0%

SAVING MODE (Typ.)

Default disabled. Load≦5W will be changed to standby mode

FRONT PANEL INDICATOR

Battery voltage level, output load level, saving mode, fault and operation status









INPUT

BAT. VOLTAGE

12V

24V

48V

12V

24V

48V

VOLTAGE RANGE (Typ.)Note.3,6

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

DC CURRENT (Typ.)         Note.5

150A

75A

37.5A

150A

75A

37.5A

NO LOAD DISSIPATION (Typ.)

≦18W @ standby saving mode

OFF MODE CURRENT DRAW

≦1mA

EFFICIENCY (Typ.)           Note.2

87%

89%

89%

88%

90%

91%

BATTERY TYPES

Open & sealed Lead Acid



BATTERY INPUT PROTECTION

FUSE

40A*5

30A*3

30A*2

40A*5

30A*3

30A*2

BAT. LOW ALARM

11.3±4%

22.5±4%

45±4%

11.3±4%

22.5±4%

45±4%

BAT. LOW SHUTDOWN

10.5±4%

21±4%

42±4%

10.5±4%

21±4%

42±4%

REVERSE POLARITY

By internal fuse open







OUTPUT PROTECTION



OVER TEMPERATURE

82℃± 5℃

82℃± 5℃

96℃± 5℃

68℃± 5℃

68℃± 5℃

68℃± 5℃

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power transistor

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover



OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

UL458 (only for "GFCI" receptacle-Type F )

None





ENVIRONMENT

WORKING TEMP.               Note.1

0 ~ +40℃ @ 100% load ; 60℃ @ 50% load

WORKING HUMIDITY

20% ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes





SAFETY & EMC

SAFETY STANDARDS

UL458 (only for "GFCI" receptacle-Type F ), EAC TP TC 004

EAC TP TC 004

LVD

None

EN60950-1

WITHSTAND VOLTAGE

Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC

EMC EMISSION

Compliance to FCC class A, EAC TP TC 020

Compliance to EN55032 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020

EMC IMMUNITY

Compliance to EAC TP TC 020

Compliance to EN61000-4-2,3,8, EAC TP TC 020



OTHERS

CONTROL WIRING

RJ11 -RS232 (Option)

DIMENSION

420*220*88mm (L*W*H)

PACKING

6.81Kg; 2pcs/14.6Kg/1.61CUFT

MODEL

TS-3000-112

TS-3000-124

TS-3000-148

TS-3000-212

TS-3000-224

TS-3000-248













OUTPUT

RATED POWER (Typ.)

3000W

MAXIMUM OUTPUT POWER (Typ.)

3450W for 180 sec. / 4500W for 10 sec. / surge power 6000W for 30 cycles

AC VOLTAGE

Factory setting set at 110VAC

Factory setting set at 230VAC

100 / 110 / 115 / 120VAC selectable by setting button S.W

200 / 220 / 230 / 240VAC selectable by setting button S.W

FREQUENCY

60±0.1Hz 50/60Hz selectable by setting button S.W

50±0.1Hz 50/60Hz selectable by setting button S.W

WAVEFORM                        Note.7

True sine wave (THD<3%)

AC REGULATION (Typ.)

±3%

SAVING MODE (Typ.)

Default disabled. Load≦5W will be changed to standby mode

FRONT PANEL INDICATOR

Battery voltage level, output load level, saving mode, fault and operation status









INPUT

BAT. VOLTAGE

12V

24V

48V

12V

24V

48V

VOLTAGE RANGE (Typ.) Note.3,6

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

10.5 ~ 15VDC

21 ~ 30VDC

42 ~ 60VDC

DC CURRENT (Typ.)         Note.4

300A

150A

75A

300A

150A

75A

NO LOAD DISSIPATION (Typ.)

≦10W @ standby saving mode

OFF MODE CURRENT DRAW (Typ.)

≦1mA

EFFICIENCY (Typ.)           Note.1

88%

90%

91%

89%

91%

92%

BATTERY TYPES

Open & sealed lead acid battery



BATTERY INPUT PROTECTION

FUSE

40A*12

40A*6

20A*6

40A*12

40A*6

20A*6

BAT. LOW ALARM             Note.6

11.3V

22.5V

45V

11.3V

22.5V

45V

BAT. LOW SHUTDOWN Note.6

10.5V

21V

42V

10.5V

21V

42V

REVERSE POLARITY

By internal fuse open









OUTPUT PROTECTION



OVER TEMPERATURE

90℃± 5℃

85℃± 5℃

85℃± 5℃

80℃± 5℃

75℃± 5℃

75℃± 5℃

Protection type : Shut down o/p voltage, re-power on to recover

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover



OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

CIRCUIT BREAKER

AC output receptacle:15A

GFCI PROCTECTION

Optional (Only type F)

None





ENVIRONMENT

WORKING TEMP.               Note.2

0 ~ +40℃ @ 100% load ; 60℃ @ 50% load

WORKING HUMIDITY

20% ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes







SAFETY & EMC

SAFETY STANDARDS

UL458 (only for Type G ), EAC TP TC 004

EAC TP TC 004

LVD

None

EN60950-1

WITHSTAND VOLTAGE

Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to FCC class A, EAC TP TC 020

Compliance to EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020

EMC IMMUNITY

Compliance to EAC TP TC 020

Compliance to EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020



OTHERS

CONTROL WIRING

RJ11 -RS232 (Option)

DIMENSION

466.8*283.5*100mm (L*W*H)

PACKING

12.9Kg; 1pcs/14Kg/1.49CUFT

NOTE

1.Efficiency is tested by 2100W, linear load at 13V, 26V, 52V input voltage. 2.Output derating capacity referenced by curve 1.

3. Input derating capacity referenced by curve 2.

4. DC current is tested by 3000W, linear load at 12V, 24V, 48V input voltage.

5. All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting. 6.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V.

7. THD is tested by 3000W, linear load at 13,26,52V input voltage.

8. Please do not turn on the inverter before start the engine if inverter connect to vehicle’s battery directly.

9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.



QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
