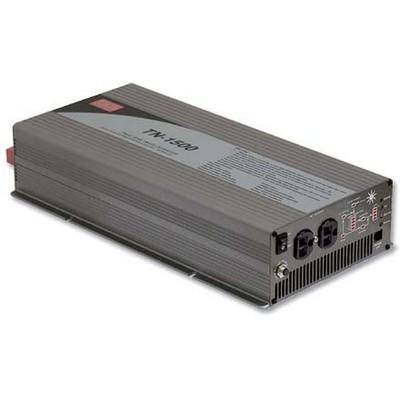

MEANWELL TN Series True Sine Wave DC-AC Inverter with Solar Charger
Many In Stock
Ballast /Drivers
TN-1500-224B
S7
- True sine wave output (THD<3%}
- High surge power up to 6000W
- P.S. mode and energy saving mode (selectable}
- High efficiency up to 92%
- Power ON-OFF switch
- Standby saving mode can be selectable
- Front panel indicator for operation status
- Thermostatically controlled cooling fan
- Protections: low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short / Input polarity reverse / Overload / AC circuit breaker
- Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
- Built-in solar / AC charger
- Computer-based monitoring software (Note.7}
Specification:
MODEL |
TN-1500-112□ |
TN-1500-124□ |
TN-1500-148□ |
TN-1500-212□ |
TN-1500-224□ |
TN-1500-248□ |
|
OUTPUT |
RATED POWER (Typ.) |
1500W |
|||||
MAXIMUM OUTPUT POWER (Typ.) |
1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles |
||||||
AC VOLTAGE |
Factory setting set at 110VAC |
Factory setting set at 230VAC |
|||||
100 / 110 / 115 / 120VAC selectable by setting button S.W |
200 / 220 / 230 / 240VAC selectable by setting button S.W |
||||||
FREQUENCY Note.10 |
60±0.1Hz 50/60Hz selectable by setting button S.W |
50±0.1Hz 50/60Hz selectable by setting button S.W |
|||||
WAVEFORM Note.2 |
True sine wave (THD<3%) |
||||||
AC REGULATION (Typ.) |
±3.0% |
||||||
TRANSFER TIME (Typ.) |
10ms inverter by pass |
||||||
SAVING MODE (Typ.) |
Default disabled. Load≦5W will be changed to standby mode |
||||||
FRONT PANEL INDICATOR |
Battery voltage level, output load level, saving mode, fault and operation status |
||||||
INPUT |
BAT. VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
VOLTAGE RANGE (Typ.)Note.3,6 |
10.5 ~ 15VDC |
21 ~ 30VDC |
42 ~ 60VDC |
10.5 ~ 15VDC |
21 ~ 30VDC |
42 ~ 60VDC |
|
DC CURRENT (Typ.) Note.5 |
150A |
75A |
37.5A |
150A |
75A |
37.5A |
|
NO LOAD DISSIPATION (Typ.) |
≦18W @ standby saving mode |
||||||
OFF MODE CURRENT DRAW |
≦1mA |
||||||
EFFICIENCY (Typ.) Note.2 |
87% |
89% |
89% |
88% |
90% |
91% |
|
BATTERY TYPES |
Open & sealed Lead Acid |
||||||
BATTERY INPUT PROTECTION |
FUSE |
40A*5 |
30A*3 |
30A*2 |
40A*5 |
30A*3 |
30A*2 |
BAT. LOW ALARM |
11.3±4% |
22.5±4% |
45±4% |
11.3±4% |
22.5±4% |
45±4% |
|
BAT. LOW SHUTDOWN |
10.5±4% |
21±4% |
42±4% |
10.5±4% |
21±4% |
42±4% |
|
REVERSE POLARITY |
By internal fuse open |
||||||
OUTPUT PROTECTION |
OVER TEMPERATURE |
82℃±5℃ |
82℃±5℃ |
96℃±5℃ |
68℃±5℃ |
68℃±5℃ |
68℃±5℃ |
Protection type : Shut down o/p voltage, re-power on to recover ; by internal RTH3 detect on heatsink of power transistor |
|||||||
OUTPUT SHORT |
Protection type : Shut down o/p voltage, re-power on to recover |
||||||
OVER LOAD (Typ.) |
105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec. |
||||||
Protection type : Shut down o/p voltage, re-power on to recover |
|||||||
CIRCUIT BREAKER |
15A |
10A |
|||||
GFCI PROCTECTION |
Optional (Only type F) |
None |
|||||
ENVIRONMENT |
WORKING TEMP. Note.1 |
0 ~ +40℃ @ 100% load ; 60℃ @ 50% load |
|||||
WORKING HUMIDITY |
20% ~ 90% RH non-condensing |
||||||
STORAGE TEMP., HUMIDITY |
-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing |
||||||
VIBRATION |
10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes |
||||||
SAFETY & EMC |
SAFETY STANDARDS |
UL458 (only for "GFCI" receptacle-Type F ), EAC TP TC 004 |
EAC TP TC 004 |
||||
LVD |
None |
EN60950-1 |
|||||
WITHSTAND VOLTAGE |
Bat I/P - AC I/P:3.0KVAC Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
||||||
EMC EMISSION |
Compliance to FCC class A, EAC TP TC 020 |
Compliance to EN55032 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020 |
|||||
EMC IMMUNITY |
Compliance to EAC TP TC 020 |
Compliance to EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020 |
|||||
AC CHARGER |
CHARGE CURRENT (Typ.) |
5.5A |
2.7A |
1.35A |
5.5A |
2.7A |
1.35A |
CHARGE VOLTAGE |
14.3V±4% |
28.5V±4% |
57V±4% |
14.3V±4% |
28.5V±4% |
57V±4% |
|
SOLAR CHARGER |
MAX OPEN CIRCUIT VOLTAGE |
25V |
45V |
75V |
25V |
45V |
75V |
CHARGE CURRENT (max.) |
30A |
||||||
CHARGE VOLTAGE |
14.3V±4% |
28.5V±4% |
57V±4% |
14.3V±4% |
28.5V±4% |
57V±4% |
|
OTHERS |
CONTROL WIRING Note.7 |
RJ11 -RS232 |
|||||
DIMENSION |
420*220*88mm (L*W*H) |
||||||
PACKING |
6.85Kg; 2pcs/15.7Kg/1.61CUFT |

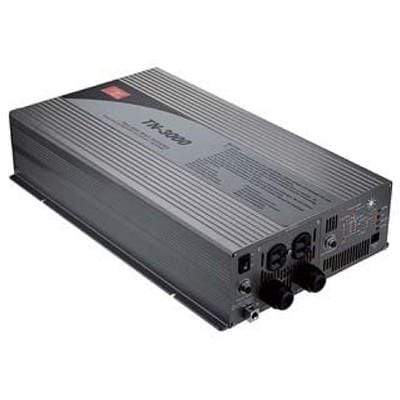

MODEL |
TN-3000-112□ |
TN-3000-124□ |
TN-3000-148□ |
TN-3000-212□ |
TN-3000-224□ |
TN-3000-248□ |
||||
OUTPUT |
RATED POWER (Typ.) |
3000W |
||||||||
MAXIMUM OUTPUT POWER (Typ.) |
3450W for 180 sec. / 4500W for 10 sec. / surge power 6000W for 30 cycles |
|||||||||
AC VOLTAGE |
Factory setting set at 110VAC |
Factory setting set at 230VAC |
||||||||
100 / 110 / 115 / 120VAC selectable by setting button S.W |
200 / 220 / 230 / 240VAC selectable by setting button S.W |
|||||||||
FREQUENCY |
Note.11 |
60±0.1Hz 50/60Hz selectable by setting button S.W |
50±0.1Hz 50/60Hz selectable by setting button S.W |
|||||||
WAVEFORM |
Note.8 |
True sine wave (THD<3%) |
||||||||
AC REGULATION (Typ.) |
±3% |
|||||||||
TRANSFER TIME (Typ.) |
10ms inverter by pass |
|||||||||
SAVING MODE (Typ.) |
Default disabled. Load≦5W will be changed to standby mode |
|||||||||
FRONT PANEL INDICATOR |
Battery voltage level, output load level, saving mode, fault and operation status |
|||||||||
INPUT |
BAT. VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|||
VOLTAGE RANGE (Typ.) Note.3,6 |
10.5 ~ 15VDC |
21 ~ 30VDC |
42 ~ 60VDC |
10.5 ~ 15VDC |
21 ~ 30VDC |
42 ~ 60VDC |
||||
DC CURRENT (Typ.) |
Note.4 |
300A |
150A |
75A |
300A |
150A |
75A |
|||
NO LOAD DISSIPATION (Typ.) |
≦10W @ standby saving mode |
|||||||||
OFF MODE CURRENT DRAW (Typ.) |
≦1mA |
|||||||||
EFFICIENCY (Typ.) |
Note.1 |
88% |
90% |
91% |
89% |
91% |
92% |
|||
BATTERY TYPES |
Open & sealed lead acid battery |
|||||||||
BATTERY INPUT PROTECTION |
FUSE |
40A*12 |
40A*6 |
20A*6 |
40A*12 |
40A*6 |
20A*6 |
|||
BAT. LOW ALARM |
Note.6 |
11.3V |
22.5V |
45V |
11.3V |
22.5V |
45V |
|||
BAT. LOW SHUTDOWN Note.6 |
10.5V |
21V |
42V |
10.5V |
21V |
42V |
||||
REVERSE POLARITY |
By internal fuse open |
|||||||||
OUTPUT PROTECTION |
OVER TEMPERATURE |
90℃± 5℃ |
85℃± 5℃ |
85℃± 5℃ |
80℃± 5℃ |
75℃± 5℃ |
75℃± 5℃ |
|||
Protection type : Shut down o/p voltage, re-power on to recover |
||||||||||
OUTPUT SHORT |
Protection type : Shut down o/p voltage, re-power on to recover |
|||||||||
OVER LOAD (Typ.) |
105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. |
|||||||||
Protection type : Shut down o/p voltage, re-power on to recover |
||||||||||
CIRCUIT BREAKER |
AC output: 40A, AC receptacle:15A |
AC output: 20A, AC receptacle: 15A |
||||||||
GFCI PROCTECTION |
Optional (Only type F) |
None |
||||||||
ENVIRONMENT |
WORKING TEMP. |
Note.2 |
0 ~ +40℃ @ 100% load ; 60℃ @ 50% load |
|||||||
WORKING HUMIDITY |
20% ~ 90% RH non-condensing |
|||||||||
STORAGE TEMP., HUMIDITY |
-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing |
|||||||||
VIBRATION |
10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes |
|||||||||
SAFETY & EMC |
SAFETY STANDARDS |
UL458 (only for Type G ), EAC TP TC 004 |
EAC TP TC 004 |
|||||||
LVD |
None |
EN60950-1 |
||||||||
WITHSTAND VOLTAGE |
Bat I/P - AC I/P:3.0KVAC |
Bat I/P - AC O/P:3.0KVAC |
AC O/P - FG:1.5KVAC |
|
|
|||||
ISOLATION RESISTANCE |
Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH |
|||||||||
EMC EMISSION |
Compliance to FCC class A, EAC TP TC 020 |
Compliance to EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020 |
||||||||
EMC IMMUNITY |
Compliance to EAC TP TC 020 |
Compliance to EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020 |
||||||||
AC CHARGER |
CHARGE CURRENT (Typ.) |
25A |
12A |
6A |
25A |
12A |
6A |
|||
CHARGE VOLTAGE |
Note.6 |
14.3V |
28.5V |
57V |
14.3V |
28.5V |
57V |
|||
SOLAR PANEL |
MAX OPEN CIRCUIT VOLTAGE |
25V |
45V |
75V |
25V |
45V |
75V |
|||
SHORT CIRCUIT CURRENT (max.) |
30A |
|||||||||
OTHERS |
CONTROL WIRING Note.7 |
RJ11 -RS232 |
||||||||
DIMENSION |
466.8*283.5*100mm (L*W*H) |
|||||||||
PACKING |
12.9Kg; 1pcs/14Kg/1.49CUFT |
|||||||||
NOTE |
1.Efficiency is tested by 2100W, linear load at 13V, 26V, 52V input voltage. 2.Output derating capacity referenced by curve 1. 3. Input derating capacity referenced by curve 2. 4. DC current is tested by 3000W, linear load at 12V, 24V, 48V input voltage. 5. All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting. 6.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V. 7.The cable is enclosed for the connection between TN-3000 and computer for software monitoring. 8.THD is tested by 3000W, linear load at 13,26,52V input voltage. 9. Please do not turn on the inverter before start the engine if inverter connect to vehicle’s battery directly. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}. 11.Type F for 60Hz only. |
