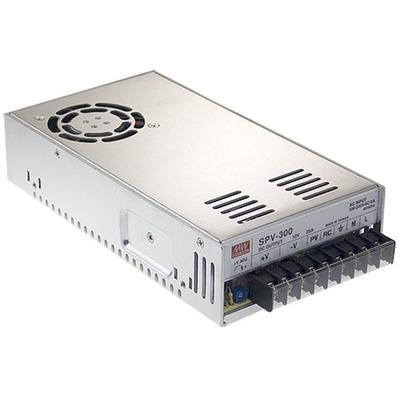

MEANWELL SPV Series With PFC

$ 141.18 $ 151.10

Many In Stock

Ballast /Drivers

SPV-300-12

S7

Add to wishlist
Features :
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC Fan
  • Output voltage programmable from 20~110% by 1~5.5VDC external control signal
  • Built-in remote ON-OFF control
  • Built-in fan speed control
  • Fixed switching frequency at 100KHz

Specification:

MODEL

SPV-300-12

SPV-300-24

SPV-300-48















OUTPUT

DC VOLTAGE

12V

24V

48V

RATED CURRENT

25A

12.5A

6.25A

CURRENT RANGE

0 ~ 25A

0 ~ 12.5A

0 ~ 6.25A

RATED POWER

300W

300W

300W

RIPPLE & NOISE (max.) Note.2

150mVp-p

150mVp-p

240mVp-p

VOLTAGE ADJ. RANGE

10.8 ~ 13.2V

20 ~ 26.4V

41 ~ 52.8V

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.3%

±0.2%

±0.2%

LOAD REGULATION

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

800ms, 50ms/230VAC             2500ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC            16ms/115VAC at full load









INPUT

VOLTAGE RANGE            Note.5

88 ~ 264VAC           124 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.95/230VAC            PF>0.98/115VAC at full load

EFFICIENCY (Typ.)

83.5%

85%

86.5%

AC CURRENT (Typ.)

3.6A/115VAC           1.8A/230VAC

INRUSH CURRENT (Typ.)

20A/115VAC            45A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC







PROTECTION



OVERLOAD

105 ~ 135% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

13.8 ~ 16.2V

27.6 ~ 32.4V

57.6 ~ 67.2V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down



FUNCTION

REMOTE CONTROL

4 ~ 10VDC power off, <0 ~ 0.8VDC power on

OUTPUT VOLTAGE TRIM

2.4 ~ 13.2V

4.8 ~ 26.4V

9.6 ~ 52.8V





ENVIRONMENT

WORKING TEMP.

-20 ~ +65℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)







SAFETY EMC

(Note 4)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY STANDARDS

UL60950-1, TUV EN60950-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

207K hrs min.        MIL-HDBK-217F (25℃)

DIMENSION

215*115*50mm (L*W*H)

PACKING

1.1Kg; 12pcs/14Kg/0.92CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on     a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com}

5. Derating may be needed under low input voltages. Please check the derating curve for more details.

6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
