MEANWELL RD Series Dual Output Switching Power Supply
Many In Stock
Ballast /Drivers

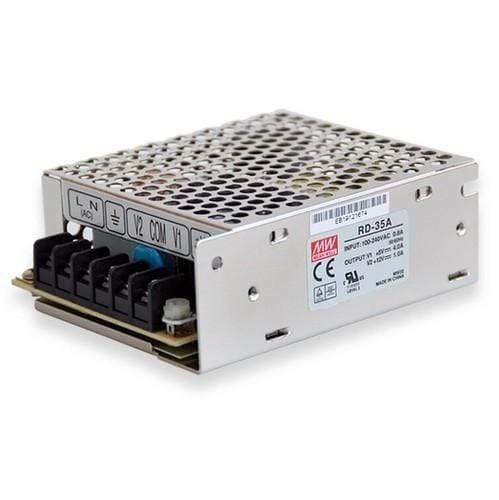

RD-35A
S7
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- High efficiency, long life and high reliability
Specification:
MODEL |
RD-35A |

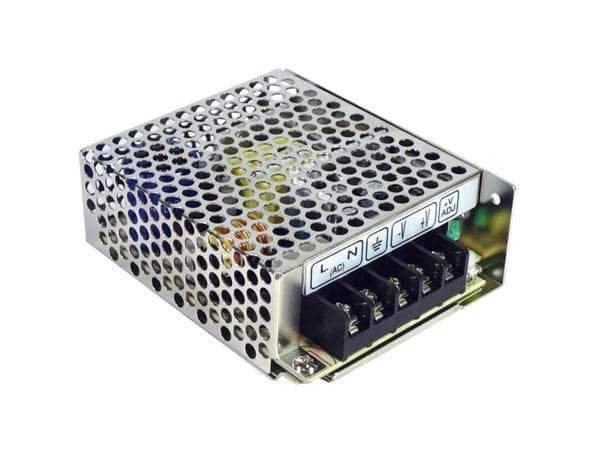

RD-35B |
RD-3513 |
||||
OUTPUT |
OUTPUT NUMBER |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
DC VOLTAGE |
5V |
12V |
5V |
24V |
13.5V |
-13.5V |
|
RATED CURRENT |
4A |
1A |
2.2A |
1A |
1.3A |
1.3A |
|
CURRENT RANGE |
0 ~ 4A |
0 ~ 1A |
0 ~ 4A |
0 ~ 1.3A |
0 ~ 2A |
0 ~ 1.5A |
|
RATED POWER |
32W |
35W |
35.1W |
||||
RIPPLE & NOISE (max.) Note.2 |
80mVp-p |
120mVp-p |
80mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
|
VOLTAGE ADJ. RANGE |
CH1: 4.75 ~ 5.5V |
CH1: 4.75 ~ 5.5V |
CH1: 11.5 ~ 15.5V |
||||
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±6.0% |
±2.0% |
±5.0% |
±4.0% |
±4.0% |
|
LINE REGULATION Note.4 |
±0.5% |
±1.5% |
±0.5% |
±1.0% |
±0.5% |
±0.5% |
|
LOAD REGULATION Note.5 |
±0.5% |
±3.0% |
±0.5% |
±2.0% |
±3.0% |
±3.0% |
|
SETUP, RISE TIME |
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load |
||||||
HOLD UP TIME (Typ.) |
80ms/230VAC 16ms/115VAC at full load |
||||||
INPUT |
VOLTAGE RANGE |
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) |
|||||
FREQUENCY RANGE |
47 ~ 63Hz |
||||||
EFFICIENCY (Typ.) |
79% |
80% |
80% |
||||
AC CURRENT (Typ.) |
0.8A/115VAC 0.55A/230VAC |
||||||
INRUSH CURRENT (Typ.) |
COLD START 45A/230VAC |
||||||
LEAKAGE CURRENT |
<2mA / 240VAC |
||||||
PROTECTION |
OVERLOAD |
110 ~ 150% rated output power |
|||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||||
OVER VOLTAGE |
CH1: 5.75 ~ 6.75V |
CH1: 16.87 ~ 19.57V |
|||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||||
ENVIRONMENT |
WORKING TEMP. |
-25 ~ +70℃ (Refer to "Derating Curve") |
|||||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||||
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
||||||
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃)on CH1 output |
||||||
VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||||||
SAFETY & EMC (Note 6) |
SAFETY STANDARDS |
UL62368-1, TUV EN62368-1, EAC TP TC 004 approved |
|||||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||||||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
||||||
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 |
||||||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
||||||
OTHERS |
MTBF |
179Khrs min. MIL-HDBK-217F (25℃) |
|||||
DIMENSION |
99*82*36mm (L*W*H) |
||||||
PACKING |
0.3Kg; 45pcs/14Kg/0.83CUFT |
MODEL |

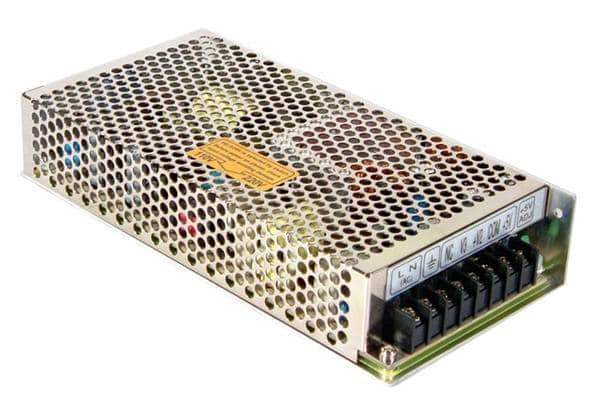

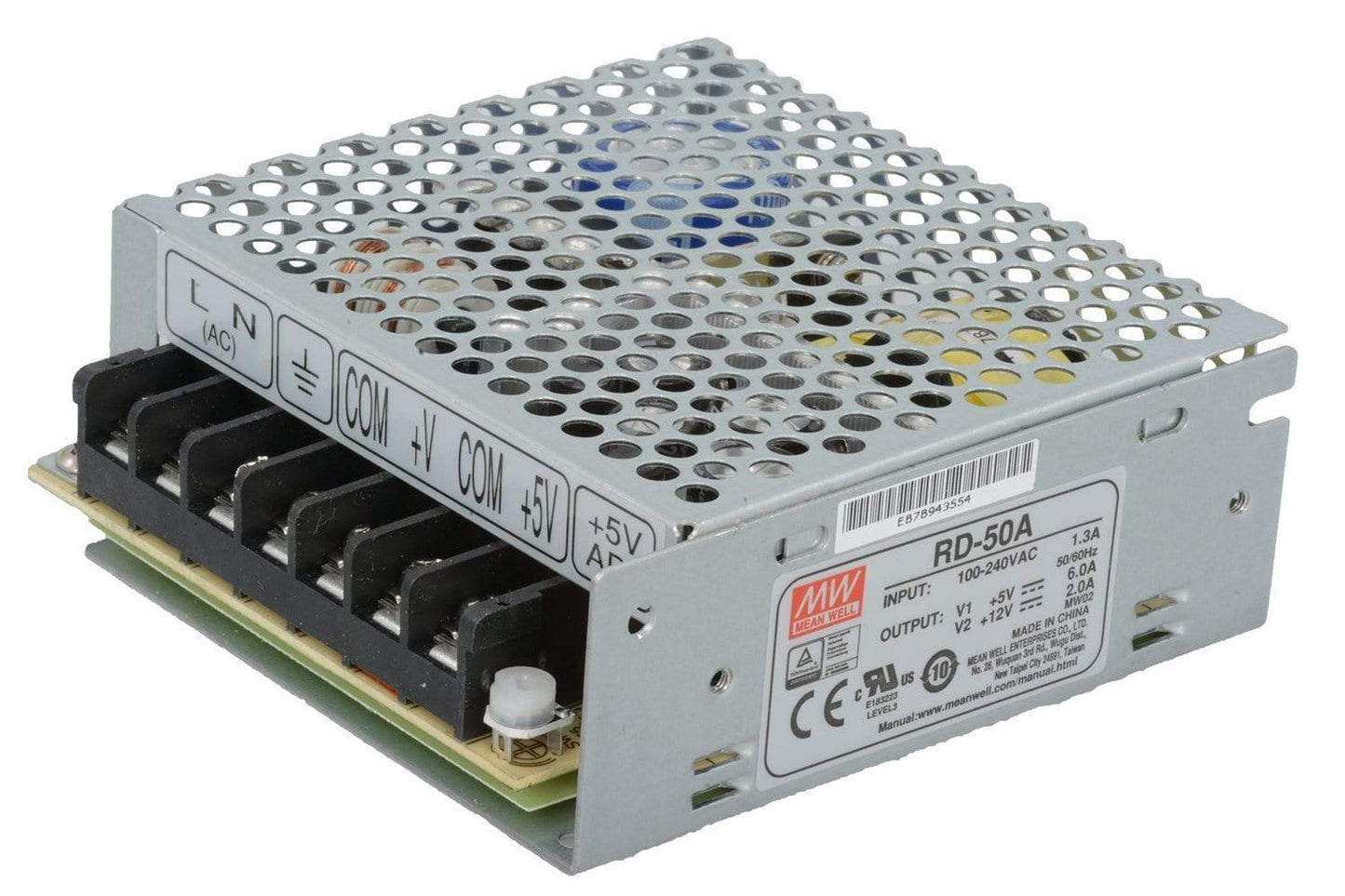

RD-50A/85A/125A |

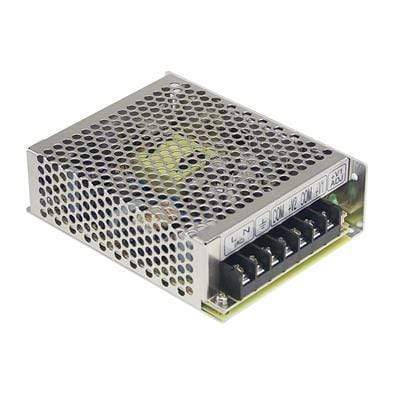

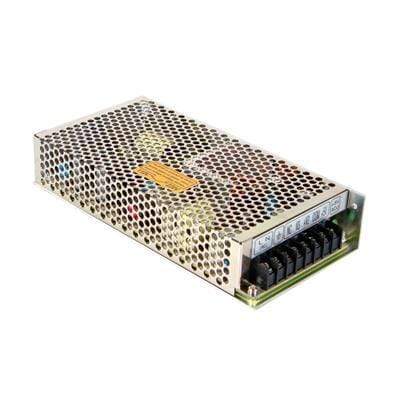

RD-50B/125B |
|||
OUTPUT |
OUTPUT NUMBER |
CH1 |
CH2 |
CH1 |
CH2 |
DC VOLTAGE |
5V |
12V |
5V |
24V |
|
RATED CURRENT |
6A/ 8A / 7.7A |
2A/ 4A/ 7.7A |
4A/ 4.6A |
1.4A/ 4.6A |
|
CURRENT RANGE |
0 ~ 6A/ 0~8A/ 0~7.7A |
0 ~ 3A/ 0~4A/ 0~7.7A |
0 ~ 6A/ 0~4.6A |
0 ~ 2A/ 0~4.6A |
|
RATED POWER |
54W / 88W / 130.9W |
53.6W / 133.4 |
|||
RIPPLE & NOISE (max.) Note.2 |
80mVp-p |
120mVp-p |
80mVp-p |
150mVp-p |
|
VOLTAGE ADJ. RANGE |
CH1: 4.75 ~ 5.5V |
CH1: 4.75 ~ 5.5V |
|||
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±7.0% |
±2.0% |
±8% |
|
LINE REGULATION Note.4 |
±0.5% |
±1.5% |
±0.5% |
±1.5% |
|
LOAD REGULATION Note.5 |
±0.5% |
±3.0% |
±0.5% |
±3.0% |
|
SETUP, RISE TIME |
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load |
||||
HOLD UP TIME (Typ.) |
60ms/100ms /25ms /230VAC 10ms/18ms/30ms /115VAC at full load |
||||
INPUT |
VOLTAGE RANGE |
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) |
|||
FREQUENCY RANGE |
47 ~ 63Hz |
||||
EFFICIENCY(Typ.) |
78% |
79% |
|||
AC CURRENT (Typ.) |
1.3A/115VAC 0.8A/230VAC |
||||
INRUSH CURRENT (Typ.) |
COLD START 48A/230VAC |
||||
LEAKAGE CURRENT |
<2mA / 240VAC |
||||
PROTECTION |
OVERLOAD |
110 ~ 150% rated output power |
|||
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||
OVER VOLTAGE |
CH1: 5.75 ~ 6.75V |
||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||
ENVIRONMENT |
WORKING TEMP. |
-25 ~ +70℃ (Refer to "Derating Curve") |
|||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
||||
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃)on +5V output |
||||
VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||||
SAFETY & EMC (Note 6) |
SAFETY STANDARDS |
UL62368-1, TUV EN62368-1, EAC TP TC 004 approved |
|||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
||||
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 |
||||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
||||
OTHERS |
MTBF |
172.6Khrs min. MIL-HDBK-217F (25℃) |
|||
DIMENSION |
99*97*36mm (L*W*H) |
||||
PACKING |
0.41Kg; 45pcs/19.5Kg/0.9CUFT |
||||
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com} 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}. |
