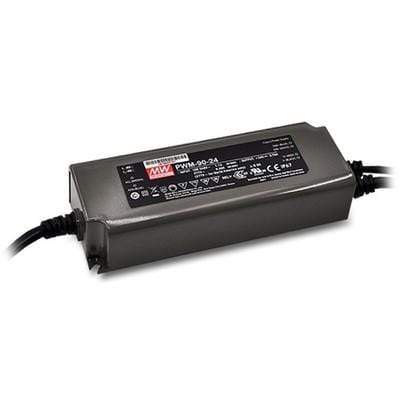

MEANWELL PWM Series Constant Voltage Power Supply
Product Code PWM-40-12
AvailabilityIn stock
Have a question?
Features:
- Constant voltage PWM style output with frequency 1.47 kHz
- Plastic housing with class II design
- Built in active PFC function
- Class 2 power unit
- No load power consumption <0.5 W
- Fully encapsulated with IP67 level
- Function: 3 in 1 dimming (dim to off);DALI
- Typical lifetime >50000 hours
Applications:
- LED strip lighting
- Indoor LED lighting
- LED decorative lighting
- LED architecture lighting
- Type "HL" for use in class I , Division 2 hazardous(classified) location
Model Encoding:
PWM-60-24[ ]
PWM------>Series name
60---->Rated wattage
24--->Rated output voltage{12/24/36}
[ ]---->Function options
| Type | IP level | Function |
| Blank | IP67 | 3 in 1 dimming function(0~10 Vdc , 10 V PWM signal and resistance) |
| DA | IP67 | DALI control technology for(12V/24V with DA type only) |
|
MODEL |
PWM-60-12 |
PWM-60-24 |
PWM-60-36 |
PWM-60-48 |
|
|
OUTPUT |
DC VOLTAGE |
12V |
24V |
36V |
48V |
|
RATED CURRENT |
5A |
2.5A |
1.67A |
1.25A |
|
|
RATED POWER |
60W |
60W |
60.12W |
60W |
|
|
DIMMING RANGE |
0 ~ 100% |
||||
|
PWM FREQUENCY (Typ.) |
1.47kHz |
||||
|
SETUP, RISE TIME Note.2 |
500ms, 80ms/ 115AC or 230VAC |
||||
|
HOLD UP TIME (Typ.) |
16ms/115VAC or 230VAC |
||||
|
INPUT |
VOLTAGE RANGE Note.3 |
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
|||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||
|
POWER FACTOR (Typ.) |
PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) |
||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section) |
||||
|
EFFICIENCY (Typ.) |
86% |
89% |
90% |
90% |
|
|
AC CURRENT (Typ.) |
0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC |
||||
|
INRUSH CURRENT (Typ.) |
COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
||||
|
MAX. NO. of PSUs on 16A CIRCUIT BREAKER |
9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC |
||||
|
LEAKAGE CURRENT |
<0.25mA / 277VAC |
||||
| No load power consumption |
<0.5W |
||||
|
PROTECTION |
OVERLOAD |
108 ~ 130% rated output power |
|||
|
Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
SHORT CIRCUIT |
Shut down o/p voltage, re-power on to recover |
||||
|
OVER VOLTAGE |
15 ~ 17V |
28 ~ 34V |
41 ~ 46V |
54 ~ 60V |
|
|
Shut down o/p voltage, re-power on to recover |
|||||
|
OVER TEMPERATURE |
Shut down o/p voltage, re-power on to recover |
||||
|
ENVIRONMENT |
WORKING TEMP. |
Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
|||
|
MAX. CASE TEMP. |
Tcase=+85℃ |
||||
|
WORKING HUMIDITY |
20 ~ 95% RH non-condensing |
||||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +80℃, 10 ~ 95% RH |
||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||||
|
VIBRATION |
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.5 |
UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14 approved; Design refer to EN60335-1 |
|||
|
DALI STANDARDS |
Comply with IEC62386-101, 102, 207 for DA-Type only,Device type 6(DT6) |
||||
|
WITHSTAND VOLTAGE |
I/P-O/P:3.75KVAC |
||||
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
||||
|
EMC EMISSION Note.6 |
Compliance to EN55015, EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 |
||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020 |
||||
|
OTHERS |
MTBF |
996K hrs min. Telcordia SR-332 (Bellcore) ; 271.03K hrs min. MIL-HDBK-217F (25℃) |
|||
|
DIMENSION |
150*53*35mm (L*W*H) |
||||
|
PACKING |
0.49Kg;30pcs/15.7Kg/1.0CUFT |
||||
|
MODEL |
PWM-90-12 |
PWM-90-24 |
PWM-90-36 |
PWM-90-48 |
|
|
OUTPUT |
DC VOLTAGE |
12V |
24V |
36V |
48V |
|
RATED CURRENT |
7.5A |
3.75A |
2.5A |
1.88A |
|
|
RATED POWER |
90W |
90W |
90W |
90.24W |
|
|
DIMMING RANGE |
0 ~ 100% |
||||
|
PWM FREQUENCY (Typ.) |
1.47kHz |
||||
|
SETUP, RISE TIME Note.2 |
500ms, 80ms/ 115VAC or 230VAC |
||||
|
HOLD UP TIME (Typ.) |
16ms/115VAC or 230VAC |
||||
|
INPUT |
VOLTAGE RANGE Note.3 |
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
|||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||
|
POWER FACTOR (Typ.) |
PF>0.98/115VAC, PF>0.96/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) |
||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section) |
||||
|
EFFICIENCY (Typ.) |
88% |
90.5% |
90.5% |
90.5% |
|
|
AC CURRENT (Typ.) |
0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC |
||||
|
INRUSH CURRENT (Typ.) |
COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
||||
|
MAX. NO. of PSUs on 16A CIRCUIT BREAKER |
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC |
||||
|
LEAKAGE CURRENT |
<0.25mA / 277VAC |
||||
| No load power consumption |
<0.5W |
||||
|
PROTECTION |
OVERLOAD |
108 ~ 130% rated output power |
|||
|
Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
SHORT CIRCUIT |
Shut down o/p voltage, re-power on to recover |
||||
|
OVER VOLTAGE |
15 ~ 17V |
28 ~ 34V |
41 ~ 46V |
54 ~ 60V |
|
|
Shut down o/p voltage, re-power on to recover |
|||||
|
OVER TEMPERATURE |
Shut down o/p voltage, re-power on to recover |
||||
|
ENVIRONMENT |
WORKING TEMP. |
Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
|||
|
MAX. CASE TEMP. |
Tcase=+85℃ |
||||
|
WORKING HUMIDITY |
20 ~ 95% RH non-condensing |
||||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +80℃, 10 ~ 95% RH |
||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||||
|
VIBRATION |
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.5 |
UL8750(except for DA-Type), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67, BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004,GB19510.1,GB19510.14 approved; Design refer to EN60335-1 |
|||
|
DALI STANDARDS |
Comply with IEC62386-101, 102, 207 for DA-Type only,Device type 6(DT6) |
||||
|
WITHSTAND VOLTAGE |
I/P-O/P:3.75KVAC |
||||
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
||||
|
EMC EMISSION Note.6 |
Compliance to EN55015, EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 |
||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020 |
||||
|
OTHERS |
MTBF |
902.4K hrs min. Telcordia SR-332 (Bellcore) ; 224.2K hrs min. MIL-HDBK-217F (25℃) |
|||
|
DIMENSION |
171*63*37.5mm (L*W*H) |
||||
|
PACKING |
0.77Kg; 18pcs/14.9Kg/0.97CUFT |
||||
