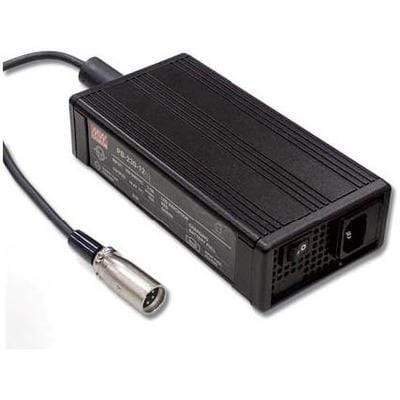

MEANWELL PB 230W Single Output Battery Charger

$ 119.82 $ 128.50

Many In Stock

Ballast /Drivers

PB-230-12

S7

Add to wishlist
Features :
  • Charger for lead-acid batteries (flooded,Gel and AGM} and Li-ion batteries (lithium iron and lithium manganese} (Note.1}
  • 3 stage charging characteristic
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Protection: Short circuit / Overload / Over voltage / Over temperature
  • Built-in cooling Fan ON-OFF control
  • Built-in remote ON-OFF control
  • 2 color LED loading indicator
  • Low cost, high reliability

ORDER NO.

OUTPUT CONNECTOR

SAFETY

PB-230-xx (standard model)

4pin power din

TUV / CE

PB-230-xxAD1 (optional model)

Anderson connector

UL / EAC

PB-230-xx        xx=12,24,48 ;       =Blank, AD1

SPECIFICATION

MODEL

PB-230-12

PB-230-24

PB-230-48







OUTPUT

BOOST CHARGE VOLTAGE

14.4V

28.8V

57.6V

FLOAT CHARGE VOLTAGE

13.6V

27.2V

54.4V

RECOMMENDED BATTERY

CAPACITY(AMP HOURS)(Note 5)



50 ~ 160Ah



24 ~ 80Ah



12 ~ 40Ah

BATTERY TYPE

Open & Sealed Lead Acid

OUTPUT CURRENT

16A

8A

4A









INPUT

VOLTAGE RANGE

90 ~ 264VAC           127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.95/230VAC            PF>0.98/115VAC at full load

EFFICIENCY (Typ.)

81.5%

85.5%

86%

AC CURRENT (Typ.)

3A/115VAC         1.5A/230VAC

INRUSH CURRENT (Typ.)

COLD START 50A

LEAKAGE CURRENT

<3.5mA / 240VAC







PROTECTION



OVERLOAD

90 ~ 110% rated output current

Protection type : Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

16 ~ 18V

31 ~ 35V

59 ~ 64V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Protection type : Automatically derate charge current until zero



FUNCTION

REMOTE CONTROL (CN105)

Open: Normal work             Short: Stop Charging

FAN CONTROL

RTH3≧ 50℃ Fan ON, ≦ 45℃ Fan OFF (Typ.)

TEMPERATURE SENSE

By NTC







ENVIRONMENT

WORKING TEMP.

-20 ~ +50℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes



SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL1012, EAC TP TC 004(for PB-230-xxAD1 only), TUV EN60950-1,PSE J60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

244.5Khrs min.        MIL-HDBK-217F (25℃)

DIMENSION

190*96*49mm(L*W*H)

PACKING

1.21Kg; 12pcs/15.5Kg/1.29CUFT



CONNECTOR

PLUG

See page 2 ; Other type available by customer requested

CABLE

See page 2 ; Other type available by customer requested

NOTE

1.  Modification for charger specification may be required for different battery specification. Please contact MEAN WELL for details.

2.  All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

3.  Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

4.  Tolerance : includes set up tolerance, line regulation and load regulation.

5.   The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

6.  This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.

7.   The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
