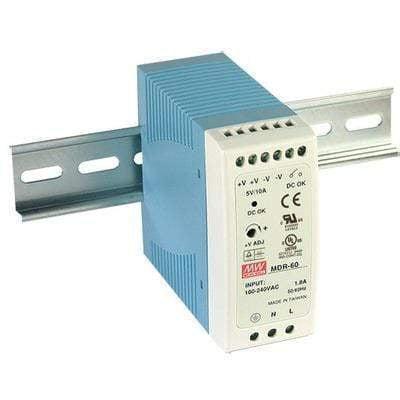

MEANWELL MDR Series Rail Mount Power Supply
Many In Stock
Ballast /Drivers
MDR-10-12
S7
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- ZCS/ZVS technology to reduce power dissipation
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- DC OK relay contact
- No load power consumption<1W
- LED indicator for power on
- 100% full load burn-in test
Specification:
MODEL |
MDR-10-5 |
MDR-10-12 |
MDR-10-15 |
MDR-10-24 |
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
RATED CURRENT |
2A |
0.84A |
0.67A |
0.42A |
|
CURRENT RANGE |
0 ~ 2A |
0 ~ 0.84A |
0 ~ 0.67A |
0 ~ 0.42A |
|
RATED POWER |
10W |
10W |
10W |
10W |
|
RIPPLE & NOISE (max.) Note.2 |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±5.0% |
±3.0% |
±3.0% |
±2.0% |
|
LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
LOAD REGULATION |
±5.0% |
±3.0% |
±3.0% |
±2.0% |
|
SETUP, RISE TIME Note.5 |
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load |
||||
HOLD UP TIME (Typ.) |
120ms/230VAC 25ms/115VAC at full load |
||||
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 370VDC |
|||
FREQUENCY RANGE |
47 ~ 63Hz |
||||
EFFICIENCY (Typ.) |
77% |
81% |
81% |
84% |
|
AC CURRENT (Typ.) |
0.33A/115VAC 0.21A/230VAC |
||||
INRUSH CURRENT (Typ.) |
COLD START 35A/115VAC 70A/230VAC |
||||
LEAKAGE CURRENT |
<1mA / 240VAC |
||||
PROTECTION |
OVERLOAD |
Above 105% rated output power |
|||
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||
OVER VOLTAGE |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
17.25 ~ 20.25V |
27.6 ~ 32.4V |
|
Protection type : Shut down o/p voltage, re-power on to recover |
|||||
FUNCTION |
DC OK ACTIVE SIGNAL (max.) |
3.75 ~ 6V / 50mA |
9 ~ 13.5V / 40mA |
11.5 ~ 16.5V / 40mA |
18 ~ 27V / 20mA |
ENVIRONMENT |
WORKING TEMP. |
-20 ~ +70℃ (Refer to "Derating Curve") |
|||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
||||
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||||
VIBRATION |
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
||||
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved |
|||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
||||
EMC EMISSION |
Compliance to EN55011, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B |
||||
EMC IMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A, EAC TP TC 020 |
||||
OTHERS |
MTBF |
584K hrs min. MIL-HDBK-217F (25℃) |
|||
DIMENSION |
22.5*90*100mm (W*H*D) |
||||
PACKING |
0.15Kg; 72pcs/11.8Kg/0.91CUFT |
MODEL |
MDR-20-5/40-5/60-5 |
MDR-20-12/40-12/60-12 |
MDR-20-15 |
MDR-20-24/40-24/60-24 |
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
RATED CURRENT |
3A/6A/10A |
1.67A/3.33A/5A |
1.34A |
1A/1.7A/2.5A |
|
CURRENT RANGE |
0 ~ 3A/0~6A/0~10A |
0 ~ 1.67A/0~3.33A/ 0~5A |
0 ~ 1.34A |
0 ~ 1A/0~1.7A/0~2.5A |
|
RATED POWER |
15W/30W/50W |
20W/40W/60W |
20W |
24W/40.8W/60W |
|
RIPPLE & NOISE (max.) Note.2 |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
VOLTAGE ADJ. RANGE |
4.75 ~ 5.5V/5~6V |
10.8 ~ 13.2V/12~15V |
13.5 ~ 16.5V |
21.6 ~ 26.4V/24~30V |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
SETUP, RISE TIME Note.5 |
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load |
||||
HOLD UP TIME (Typ.) |
50ms/230VAC 20ms/115VAC at full load |
||||
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 370VDC |
|||
FREQUENCY RANGE |
47 ~ 63Hz |
||||
EFFICIENCY (Typ.) |
76% |
80% |
81% |
84% |
|
AC CURRENT (Typ.) |
0.55A/115VAC 0.35A/230VAC / 1.1A/115VAC 0.7A/230VAC / 1.8A/115VAC 1A/230VAC |
||||
INRUSH CURRENT (Typ.) |
COLD START 20A/115VAC 40A/230VAC / 30A/115VAC 60A/230VAC / |
||||
LEAKAGE CURRENT |
<1mA / 240VAC |
||||
PROTECTION |
OVERLOAD |
105 ~ 160% rated output power |
|||
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
|||||
OVER VOLTAGE |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
17.25 ~ 20.25V |
27.6 ~ 32.4V |
|
Protection type : Shut down o/p voltage, re-power on to recover |
|||||
FUNCTION |
DC OK ACTIVE SIGNAL (max.) |
3.75 ~ 6V / 50mA |
9 ~ 13.5V / 40mA |
11.5 ~ 16.5V / 40mA |
18 ~ 27V / 20mA |
ENVIRONMENT |
WORKING TEMP. |
-20 ~ +70℃ (Refer to "Derating Curve") |
|||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
||||
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||||
VIBRATION |
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
||||
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved |
|||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
||||
EMC EMISSION |
Compliance to EN55011, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B |
||||
EMC IMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A, EAC TP TC 020 |
||||
OTHERS |
MTBF |
236.9K hrs min. MIL-HDBK-217F (25℃) |
|||
DIMENSION |
22.5*90*100mm (W*H*D) |
||||
PACKING |
0.17Kg; 72pcs/13.2Kg/0.91CUFT |
MODEL |
MDR-100-12 |
MDR-100-24 |
MDR-100-48/40-48/60-48 |
|
OUTPUT |
DC VOLTAGE |
12V |
24V |
48V |
RATED CURRENT |
7.5A |
4A |
2A / 0.83A / 1.25A |
|
CURRENT RANGE |
0 ~ 7.5A |
0 ~ 4A |
0 ~ 2A / 0~0.83A / 0~1.25A |
|
RATED POWER |
90W |
96W |
96W / 39.8W / 60W |
|
RIPPLE & NOISE (max.) Note.2 |
120mVp-p |
150mVp-p |
200mVp-p |
|
VOLTAGE ADJ. RANGE |
12 ~ 15V |
24 ~ 30V |
48 ~ 56V |
|
VOLTAGE TOLERANCE Note.3 |
±1.0% |
±1.0% |
±1.0% |
|
LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
|
SETUP, RISE TIME Note.5 |
3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load |
|||
HOLD UP TIME (Typ.) |
50ms/230VAC 20ms/115VAC at full load |
|||
INPUT |
VOLTAGE RANGE Note.6 |
85 ~ 264VAC 120 ~ 370VDC |
||
FREQUENCY RANGE |
47 ~ 63Hz |
|||
POWER FACTOR (Typ.) |
PF≧0.95/230VAC PF≧0.98/115VAC at full load |
|||
EFFICIENCY (Typ.) |
83% |
86% |
87% |
|
AC CURRENT (Typ.) |
1.3A/115VAC 0.8A/230VAC / 1.1A/115VAC 0.7A/230VAC / 1.8A/115VAC 1A/230VAC |
|||
INRUSH CURRENT (Typ.) |
COLD START 30A/115VAC 60A/230VAC |
|||
LEAKAGE CURRENT |
<1mA / 240VAC |
|||
PROTECTION |
OVERLOAD |
105 ~ 150% rated output power |
||
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
||||
OVER VOLTAGE |
15.6 ~ 18V |
31.2 ~ 36V |
57.6 ~ 64.8V |
|
Protection type : Shut down o/p voltage, re-power on to recover |
||||
OVER TEMPERATURE |
Shut down o/p voltage, auto-recovery or re-power on to recover |
|||
FUNCTION |
DC OK SIGNAL |
Relay contact rating(max.): 30V/1A resistive |
||
ENVIRONMENT |
WORKING TEMP. |
-10 ~ +60℃ (Refer to "Derating Curve") |
||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
|||
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
|||
VIBRATION |
Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6 |
|||
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 approved |
||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH |
|||
EMC EMISSION |
Compliance to EN55011, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B |
|||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, EAC TP TC 020 |
|||
OTHERS |
MTBF |
346K hrs min. MIL-HDBK-217F (25℃) |
||
DIMENSION |
55*90*100mm (W*H*D) |
|||
PACKING |
0.42Kg; 30pcs/13.6Kg/0.82CUFT |
|||
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com} 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 6. Deating maybe needed under low input voltages, please check the derating curve for more detail. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}. |
