MEANWELL LPP Series With PFC
Many In Stock
Ballast /Drivers

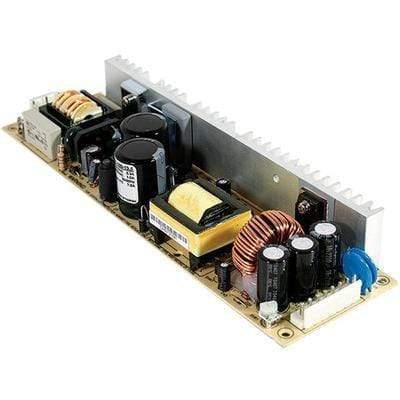

LPP-100-12
S7
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
Specification:
MODEL |
LPP-100-3.3 |
LPP-100-5 |
LPP-100-7.5 |
LPP-100-12 |
LPP-100-13.5 |
LPP-100-15 |
LPP-100-24 |
LPP-100-27 |
LPP-100-48 |
|
OUTPUT |
DC VOLTAGE |
3.3V |
5V |
7.5V |
12V |
13.5V |
15V |
24V |
27V |
48V |
RATED CURRENT |
20A |
20A |
13.5A |
8.5A |
7.5A |
6.7A |
4.2A |
3.8A |
2.1A |
|
CURRENT RANGE |
0 ~ 20A |
0 ~ 20A |
0 ~ 13.3A |
0 ~ 8.5A |
0 ~ 7.5A |
0 ~ 6.7A |
0 ~ 4.2A |
0 ~ 3.8A |
0 ~ 2.1A |
|
RATED POWER |
66W |
100W |
101.25W |
102W |
101.25W |
100.5W |
100.8W |
102.6W |
100.8W |
|
RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
150mVp-p |
150mVp-p |
250mVp-p |
|
VOLTAGE ADJ. RANGE |
3.14 ~ 3.63V |
4.75 ~ 5.5V |
7.13 ~ 8.25V |
11.4 ~ 13.2V |
12.8 ~ 14.9V |
14.3 ~ 16.5V |
22.8 ~ 26.4V |
25.7 ~ 29.7V |
45.6 ~ 52.8V |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
SETUP, RISE TIME |
600ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load |
|||||||||
HOLD UP TIME (Typ.) |
28ms/230VAC 28ms/115VAC at full load |
|||||||||
INPUT |
VOLTAGE RANGE Note.5 |
85 ~ 264VAC 120 ~ 370VDC |
||||||||
FREQUENCY RANGE |
47 ~ 63Hz |
|||||||||
POWER FACTOR (Typ.) |
PF>0.95/230VAC PF>0.98/115VAC at full load |
|||||||||
EFFICIENCY(Typ.) |
69% |
75% |
76% |
79% |
79% |
80% |
83% |
83% |
83% |
|
AC CURRENT (Typ.) |
1.7A/115VAC 0.75A/230VAC |
|||||||||
INRUSH CURRENT (Typ.) |
COLD START 30A/230VAC |
|||||||||
LEAKAGE CURRENT |
<2mA / 240VAC |
|||||||||
PROTECTION |
OVERLOAD |
105 ~ 150% rated output power |
||||||||
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
||||||||||
OVER VOLTAGE |
3.8 ~ 4.45V |
5.75 ~ 6.75V |
8.6 ~ 10.1V |
13.8 ~ 16.2V |
15.5 ~ 18.2V |
17.25 ~ 20.25V |
27.6 ~ 32.4V |
31 ~ 36.45V |
55.2 ~ 64.8V |
|
Protection type : Shut down o/p voltage, re-power on to recover |
||||||||||
ENVIRONMENT |
WORKING TEMP. |
-10 ~ +60℃ (Refer to "Derating Curve") |
||||||||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||||||||
STORAGE TEMP., HUMIDITY |
-20 ~ +85℃, 10 ~ 95% RH |
|||||||||
TEMP. COEFFICIENT |
±0.05%/℃ (0 ~ 50℃) |
|||||||||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||||||||
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1, EAC TP TC 004 approved |
||||||||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|||||||||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
|||||||||
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 |
|||||||||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
|||||||||
OTHERS |
MTBF |
224.3Khrs min. MIL-HDBK-217F (25℃) |
||||||||
DIMENSION |
222*62*33.6mm (L*W*H) |
|||||||||
PACKING |
0.51Kg; 24pcs/13.9Kg/1.39CUFT |
MODEL |

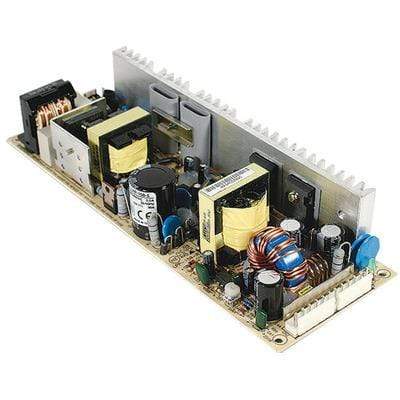

LPP-150-3.3 |
LPP-150-5 |
LPP-150-7.5 |
LPP-150-12 |
LPP-150-13.5 |
LPP-150-15 |
LPP-150-24 |
LPP-150-27 |
LPP-150-48 |
|
OUTPUT |
DC VOLTAGE |
3.3V |
5V |
7.5V |
12V |
13.5V |
15V |
24V |
27V |
48V |
RATED CURRENT |
30A |
30A |
20A |
12.5A |
11.2A |
10A |
6.3A |
5.6A |
3.2A |
|
CURRENT RANGE |
0 ~ 30A |
0 ~ 30A |
0 ~ 20A |
0 ~ 12.5A |
0 ~ 11.2A |
0 ~ 10A |
0 ~ 6.3A |
0 ~ 5.6A |
0 ~ 3.2A |
|
RATED POWER |
99W |
150W |
150W |
150W |
151.2W |
150W |
151.2W |
151.2W |
153.6W |
|
RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
150mVp-p |
150mVp-p |
250mVp-p |
|
VOLTAGE ADJ. RANGE |
3.14 ~ 3.63V |
4.75 ~ 5.5V |
7.13 ~ 8.25V |
11.4 ~ 13.2V |
12.8 ~ 14.9V |
14.3 ~ 16.5V |
22.8 ~ 26.4V |
25.7 ~ 29.7V |
45.6 ~ 52.8V |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
|
SETUP, RISE TIME |
600ms, 30ms at full load |
|||||||||
HOLD UP TIME (Typ.) |
30ms at full load |
|||||||||
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 370VDC |
||||||||
FREQUENCY RANGE |
47 ~ 63Hz |
|||||||||
POWER FACTOR |
PF≧0.96/230VAC PF≧0.97/115VAC at full load |
|||||||||
EFFICIENCY(Typ.) |
70% |
76% |
80% |
82% |
83% |
83% |
85% |
85% |
85% |
|
AC CURRENT (Typ.) |
2.5A/115VAC 1.2A/230VAC |
|||||||||
INRUSH CURRENT (Typ.) |
COLD START 55A/230VAC |
|||||||||
LEAKAGE CURRENT |
<3.5mA / 240VAC |
|||||||||
PROTECTION |
OVERLOAD |
105 ~ 150% rated output power |
||||||||
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
||||||||||
OVER VOLTAGE |
3.63 ~ 4.45V |
5.5 ~ 6.75V |
8.25 ~ 10.1V |
13.2 ~ 16.2V |
14.85 ~ 18.2V |
16.5~ 20.25V |
26.4 ~ 32.4V |
29.7 ~ 36.5V |
52.8 ~ 64.8V |
|
Protection type : Shut down o/p voltage, re-power on to recover |
||||||||||
ENVIRONMENT |
WORKING TEMP. |
-10 ~ +60℃ with cooling FAN (Refer to "Derating Curve") |
||||||||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||||||||
STORAGE TEMP., HUMIDITY |
-20 ~ +85℃, 10 ~ 95% RH |
|||||||||
TEMP. COEFFICIENT |
±0.05%/℃ (0 ~ 50℃) |
|||||||||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||||||||
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1, EAC TP TC 004 approved |
||||||||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|||||||||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
|||||||||
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 |
|||||||||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 |
|||||||||
OTHERS |
MTBF |
191.8Khrs min. MIL-HDBK-217F (25℃) |
||||||||
DIMENSION |
222*75*41mm (L*W*H) |
|||||||||
PACKING |
0.62Kg; 24pcs/16.6Kg/1.39CUFT |
|||||||||
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com} 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}. |
