MEANWELL LPHC Series Constant Current Power Supply

$ 14.72 $ 16.00

Many In Stock

Ballast /Drivers

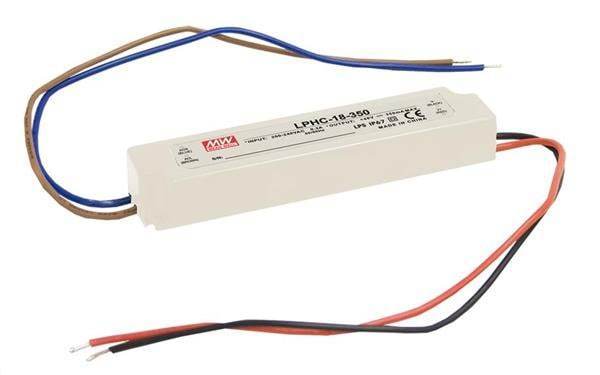

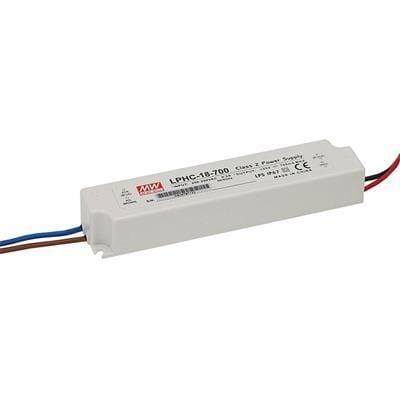

LPHC-18-350

S7

Add to wishlist

Features :

  • Constant current mode power supply
  • 180-264VAC input only
  • Fully encapsulated with IP67 level (Note.6}
  • Protections:Short circuit / Over voltage / Over temperature
  • Cooling by free air convection
  • Class Ⅱ power unit, no FG
  • Pass LPS
  • 100% full load burn-in test
  • Suitable for LED related fixture or appliance(such as LED Decoration or Advertisement devices}
  • High reliability / Low cost

Specification:

MODEL

LPHC-18-350

LPHC-18-700











OUTPUT

RATED CURRENT

350mA

700mA

DC VOLTAGE RANGE

6~48V

6~25V

RATED POWER

16.8W

17.5W

RIPPLE & NOISE (max.) Note.2

300mVp-p

250mVp-p

VOLTAGE TOLERANCE Note.3

±5.0%

CURRENT ACCURACY

±8.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±3.0%

SETUP, RISE TIME

3600ms, 100ms / 230VAC

HOLD UP TIME (Typ.)

20ms/230VAC at full load









INPUT

VOLTAGE RANGE

180 ~ 264VAC           254 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY(Typ.)

80%

80%

AC CURRENT

0.3A/230VAC

INRUSH CURRENT(Typ.)

COLD START 50A(twidth=190μs measured at 50% Ipeak) at 230VAC

MAX. No. of PSUs on 16A CIRCUIT BREAKER

13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

0.25mA / 240VAC





PROTECTION



OVER VOLTAGE

50.4~ 60V

28.75~ 33.75V

Protection type : Shut off o/p voltage, clamping by zener diode



OVER TEMPERATURE

Tj 170℃ typically (U1) Detect on main control IC

Protection type : Hiccup mode, recovers automatically after temperature goes down







ENVIRONMENT

WORKING TEMP.

-30~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.2%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes



SAFETY & EMC

(Note 5)

SAFETY STANDARDS

BIS IS15885, EAC TP TC 004, IP67 approved; design refer to UL1310 Class 2,TUV EN60950-1, CAN/CSA C22.2 No. 223-M91

WITHSTAND VOLTAGE

I/P-O/P:3KVAC

ISOLATION RESISTANCE

I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class A, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

1200.6K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

140*30*22(L*W*H)

PACKING

0.175Kg; 70pcs/13.3Kgs/0.71CUFT

NOTE

1.  All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2.  Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.  Tolerance : includes set up tolerance, line regulation and load regulation.

4.  Derating may be needed under low input voltage. Please check the static characteristic for more details.

5.  The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

6.  Suitable for indoor use or outdoor use without direct sunlight exposure.

7.  The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
